3. Connections and Installation
Modbus Interface Type: Slave / Server
Modbus Protocol Type: Modbus TCP
Modbus Address: 99
Connection Port: 502
Data Encryption: none
Endianness: big-endian
Number of simultaneous connections: 1
Timeout: 1 Sec.
Function Codes Supported 4 (Read Input Registers)
Notes:
MicroVision
EX
supports both Dynamic and Static IP addresses. However, whenever
the Modbus interface is used a static IP address is recommended.
MicroVision
EX
employs a secure connection with PULSAlink. When the controller is
configured to use both Modbus and PULSAlink please ensure that your network
supports an internet connection on port 443.

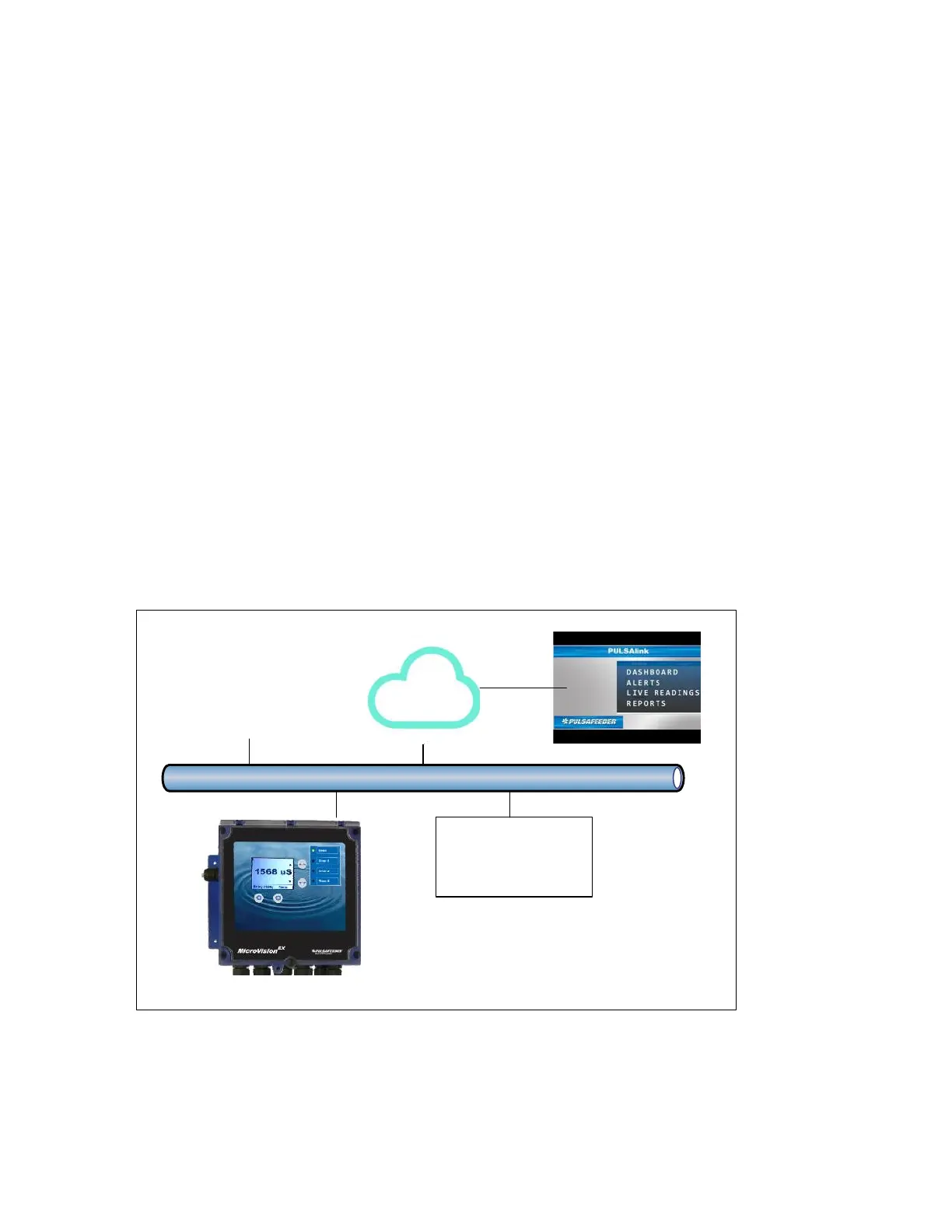

A typical installation is depicted in the figure below.
