5.6.2 Cooperation with electric actuators - EN54C-LS4 and EN54C-LS8 sequential modules.
The sequential modules are designed for use with electric actuators without return spring (EN54C-LS4)
and with electric actuators with return spring (EN54C-LS8) used for fire dampers and smoke vents. These
devices are used in fire alarm systems and smoke and heat control systems.
When switching on the electric actuator, a short-term current surge, exceeding its rated current, may
occur. If multiple electric actuators are connected, the above-mentioned surge current poses a risk of incorrect
operation of the power supply (e.g. triggering the protection of output circuit), despite not exceeding the current
capacity of the power supply.
The sequential switching module causes the receivers connected to its outputs to be sequentially
switched, with a delay of 100 ms. Thanks to this solution, the surge current is reduced to the value ensuring
correct operation of the power supply. Thus, it enables safe connection of additional actuators. All outputs are
independently protected by PTC polymer fuses and have LED diodes signaling the activation of each output.
The module is controlled by a control device (e.g. a CSP control panel) configuring the resistance at the
INPUT connector. The technical output of failure signals failures at the parametric INPUT input.

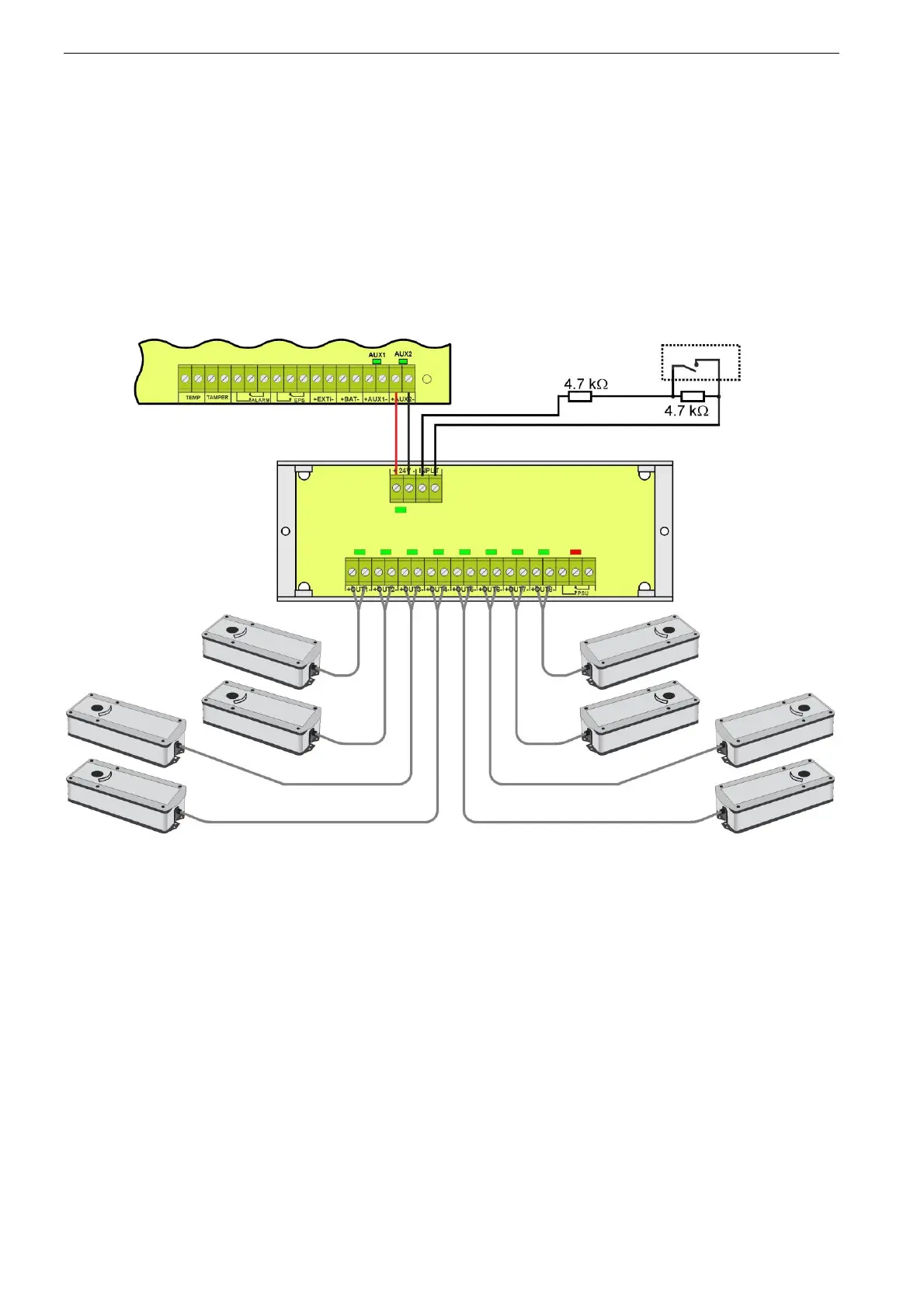

Fig. 11. Example of connection of the EN54C-LS8 sequential module with actuators with return spring.
