Pulsar EN54M Series - Dimensions of Power Supply Modules

www.pulsar.pl EN54M RED POWER plus
8
3.4. Dimensions of power supply modules.

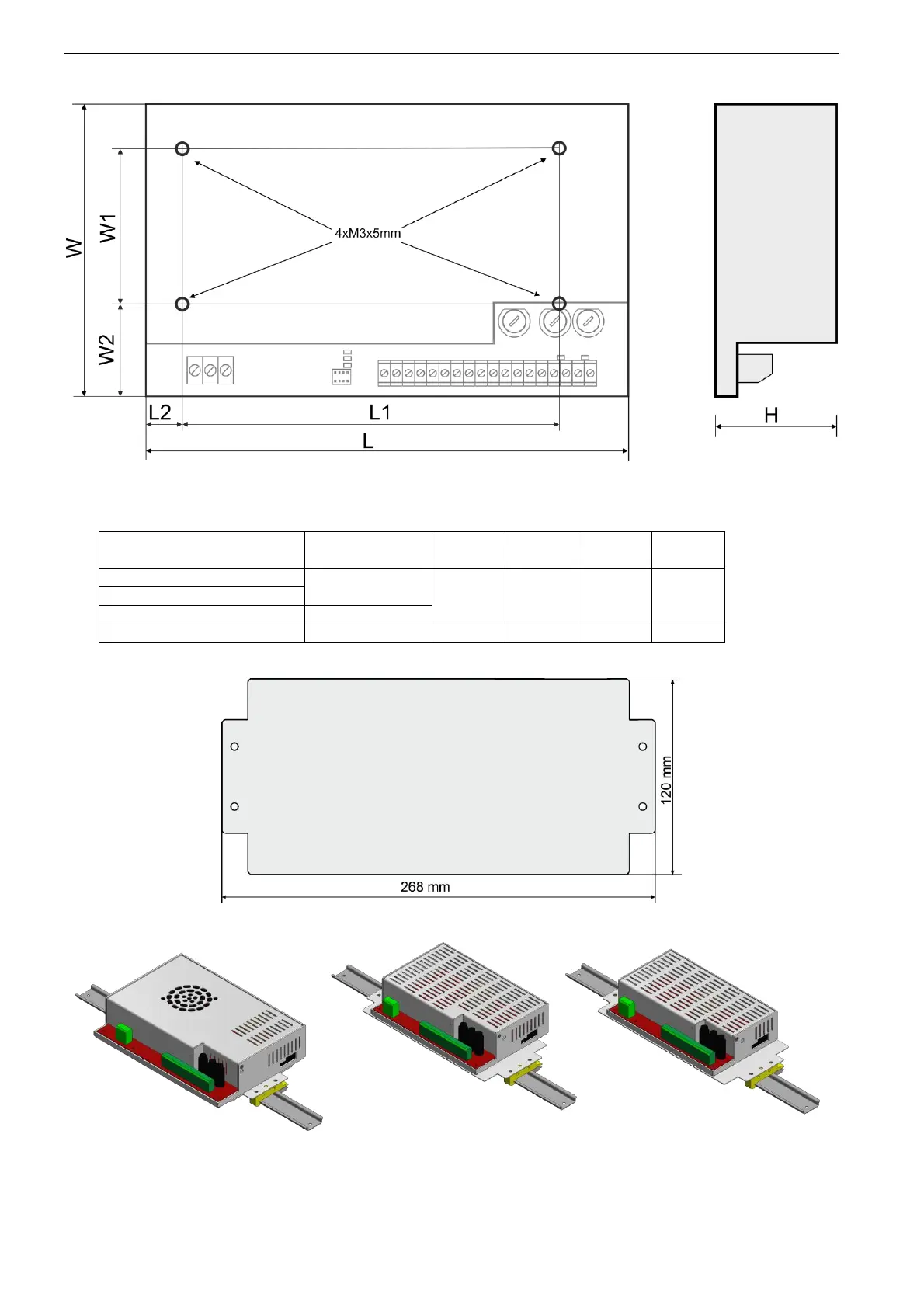

Fig. 3. Dimensions of power supply module.
Table 2. Dimensions of power supply modules (Fig. 3).
Power supply module
model
LxWxH
[mm]
L1
[mm]
W1
[mm]
L2
[mm]
W2
[mm]
EN54M-2Ax
200 x 120 x 48
155.5
64
18
41,5
EN54M-3Ax
EN54M-5Ax
204 x 141 x 52
EN54M-10Ax
237 x 168 x 55
186
80,5
26
48,5
Fig. 4. DIN 35mm rail mounting using additional EN54M-DIN1 bracket (optional).
