Components
Before operating your generator, you must read and
understand the manual and familiarize yourself with the safe
operation practices.
1
4
9
7
6
5
8
2
10
3

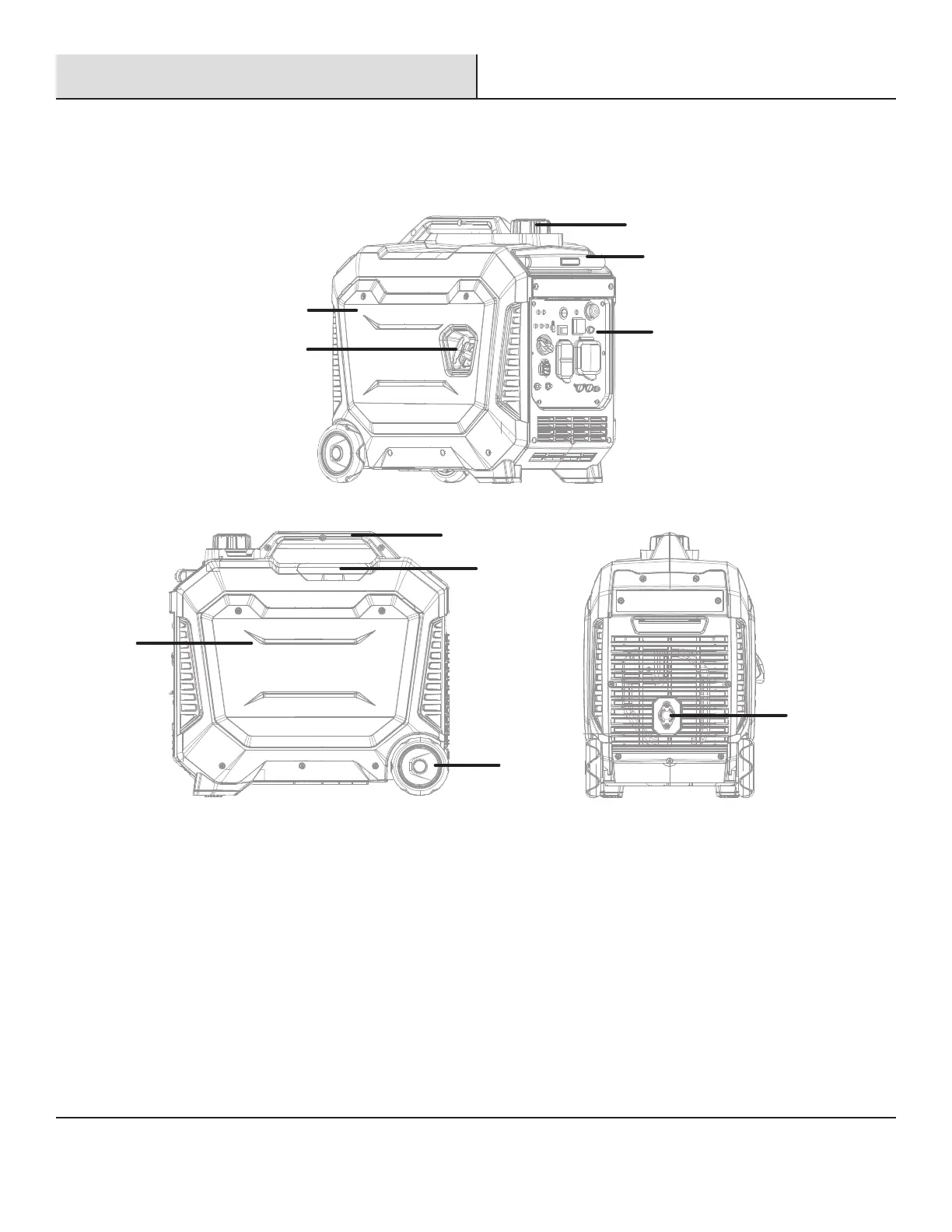

1. Fuel Cap: Add unleaded fuel here.
2. Right Side Panel: Engine, air filter, carburetor, oil stick, and
drain plug, can be found after removing the right side panel.
3. Transport Wheels: Wheels allow one-handed maneuverability
when used with the extendable handle.
4. Extendable Handle: Extend and retract the handle by
pushing the locking button.
5. Carry Handles: Helps transport the generator.
6. Recoil Handle: Pull the recoil handle to manually start the
engine.
7. Control Panel: The control panel contains the outlets and
operational controls.
8. Spark Plug Cover: Spark plug can be maintained after removing
this cover.
9. Left Side Panel: Battery and quick connection plug can be
accessed by removing this panel.
10. Muffler and Spark Arrestor: The spark arrestor prevents sparks
from exiting the muffler.
