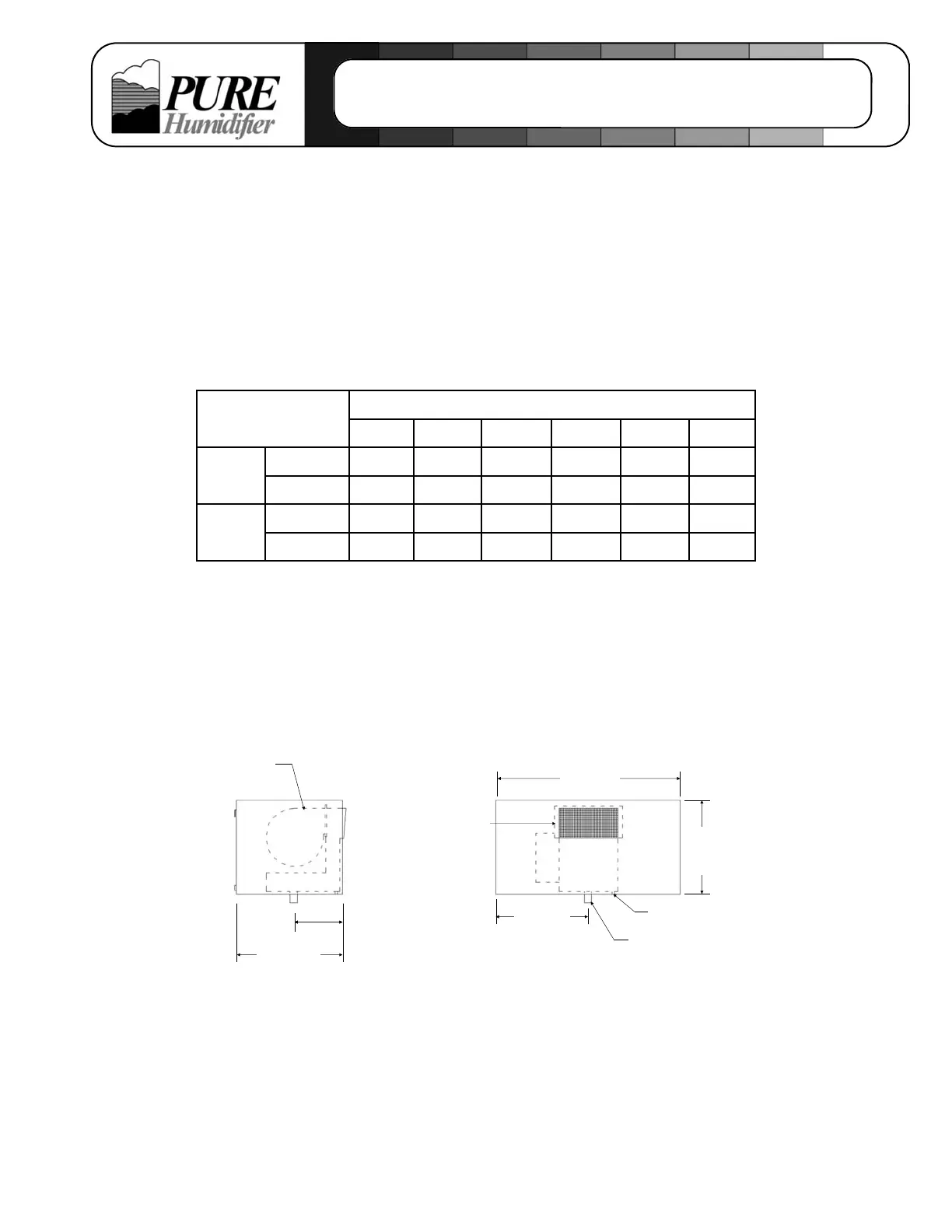

Pure Humidifier EC-10 Installation Instructions

12
Locating Blower Pack
The distance that visible steam will travel after leaving the Blower Pack is dependent upon the relative
humidity in the room and the capacity of the humidifier. If this visible steam comes in contact with any
solid object (walls, beams, machinery, etc.) it may form condensate and drip. Refer to Fig. 3 (Fig. 3 is
located on page 11) and Table 4 for data on visible steam travel. This will aid you in planning the loca-
tion of the Blower Pack.
Visible Steam
Rise & Throw
Humidifier Model
EC-5 EC-10 EC-15 EC-20 EC-25 EC-35
50%
RH
Rise (ft) 1’ 2’ 3’ 4’ 5.5’ 8’
Throw (ft) 8’ 10’ 13’ 16’ 18’ 23’
Rise (ft) 2’ 3’ 4’ 5’ 6’ 8’
Throw (ft) 13’ 14’ 16’ 18’ 20’ 25’
60%
RH
Throw is the horizontal distance the visible steam travels from the steam discharge.
Rise is the vertical distance the visible steam travels from the steam discharge.
Objects in the direct line of the visible steam or objects that are cooler than the ambient temperature may
accumulate condensation.
NOTE: Data above based on 70°F room temperature.
Table 4
Optional Blower Pack Dimensions
Fig. 5
Blower Pack weight is 60 lbs (27.2 kg)
* Blower requires a separate 120/1 circuit (by others)
Blower Pack
296/435 CFM Fan
120/1/60*, 2.17 amps
1/15 HP
17”
(43.18)
7.75”
(19.6)
Left Side View Front View
15”
(38.1)
29.50”
(74.93)
14.75”
(37.47)
1/4” NPT Drain Connection
Steam
Discharge
Steam Inlet
