3

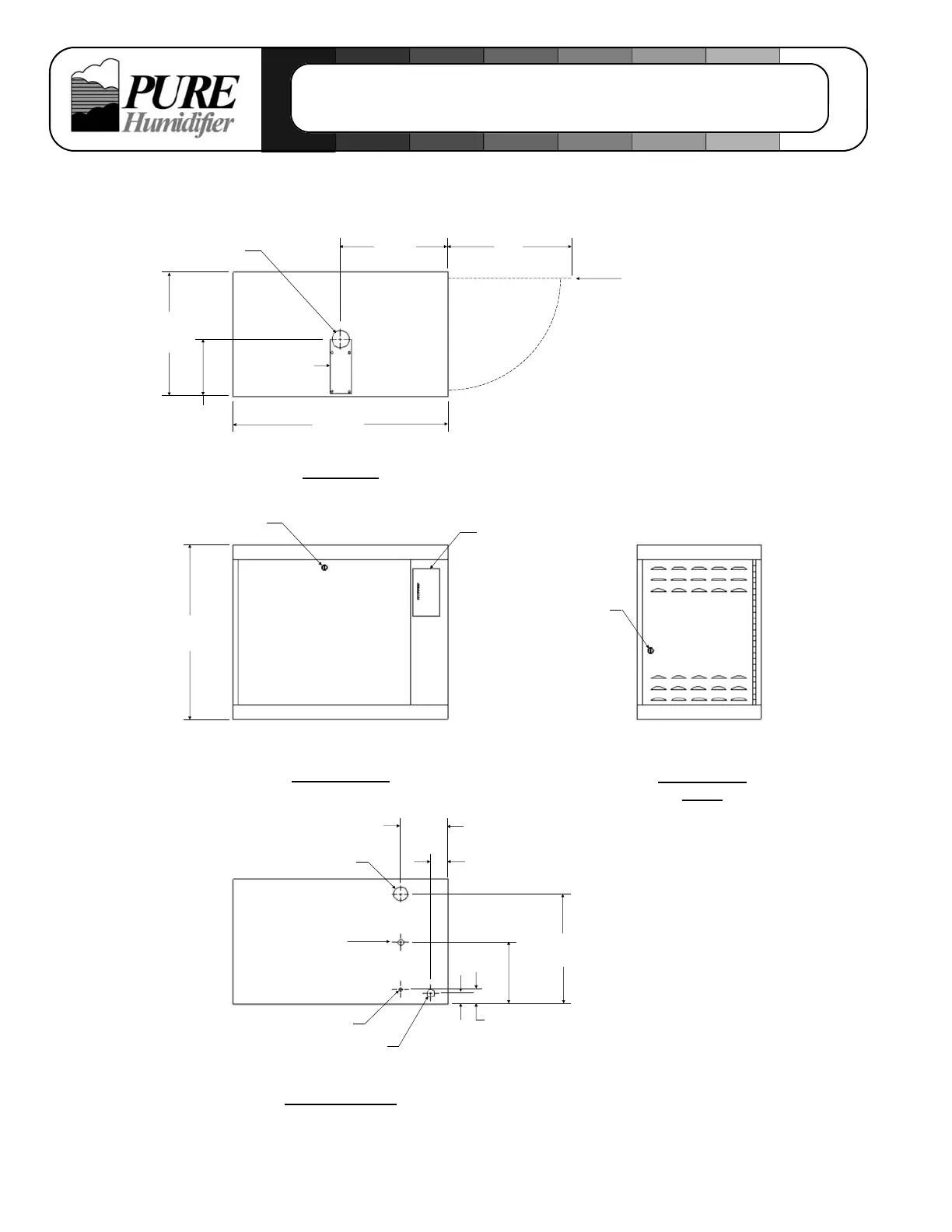

Dimensions & Layout
14.75”
(37.5)
17.00”
(43.2)
7.75”
(19.7)
29.50”
(74.9)
Removable
Access Plate*
2 3/8” Steam
Outlet Access
TOP VIEW
24”
(60.9)
Removable Key Locked
Reservoir Access Door
Operation Status
Indicating Lights
FRONT VIEW
RIGHT SIDE
VIEW
BOTTOM VIEW
Key Locked
Electrical
Access Door
Reservoir Drain Outlet
1 7/8ӯ
2.375”
(6.0)
8.4375”
(21.4)
15.00”
(38.1)
2.00”
(5.1)
1.50”
(3.8)
Cabinet Overflow
1/2” NPT
Water Inlet 3/8” NPT
Electrical Inlet 1 1/8ӯ
NOTE: Dimensions are typical for all EC models.
6.50”
(16.5)
16”
(40.6)
Key Locked Electrical
Access Door **
*Removable access plate allows reservoir to
slide out for inspection and cleaning without
disconnecting the steam supply piping.
**See local codes for minimum clearance to
electrical compartment. The electrical access
door requires a minimum clearance of 16" to
fully open.
