Pureline PL1616 - Start-Up and Operation; Prior to Start-Up

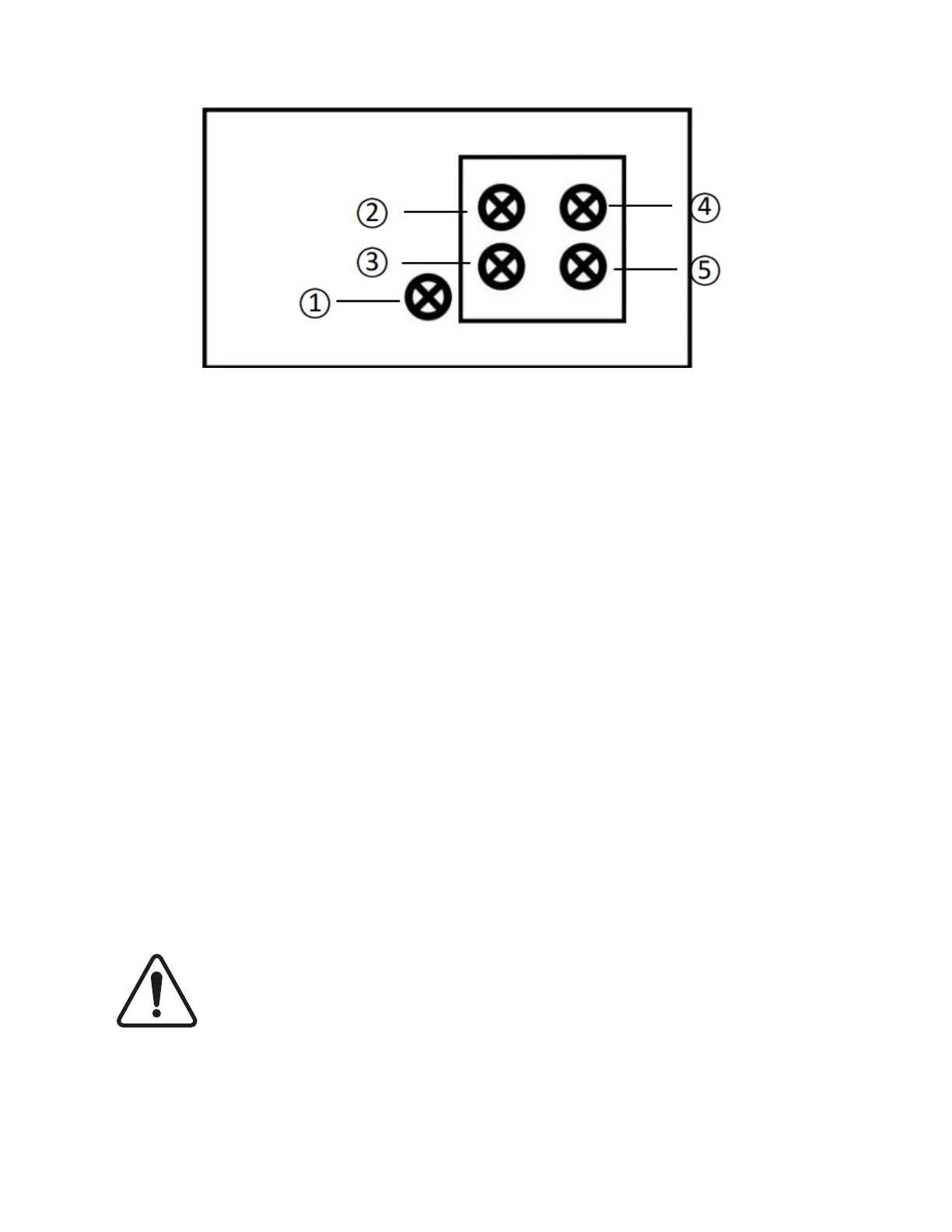

Screw 1: Ground wire
Screws 2 & 3: Either of two live wires
Screws 4 & 5: Not used
CAUTION- NEVER run the pump dry. Running pump dry may damage seals, causing
leakage, flooding, and voids warranty. Fill strainer housing with water before starting the motor.
1. Remove the AC power connection terminal box cover. There are a total of 5 screws inside the
terminal box.
2. Ensure that the available electrical supply is suitable for the motor’s voltage, phase, cycle, and
that the wire size is adequate for the HP rating and distance from the power source.
3. The voltage from the power source must be within 90%-110% of the motor’s rated voltage.
Failure to keep within this range can result in overload tripping and reduced longevity.
4. Install, ground, bond, and wire the motor in accordance with local NEC requirements.
5. Ground the pump by connecting a grounding wire from the electrical service ground terminal to
the motor grounding screw.
6. Bond the motor to the pool structure. In short, this means creating an electrical connection
between the pump and swimming pool. This helps prevent potential hazards if you run into
electrical issues with the pump.
Start-Up and Operation
Prior to Start-Up
If it is necessary to perform a pressure test prior to initial use to ensure pump is functioning properly,
then the following criteria should be considered:
1. Hire a professional for the test.
2. Ensure all pump components are sealed properly to prevent leaks.
3. Remove any trapped air in the system by fully opening the filter air relief valve until a steady
stream of water is discharged.
4. Allow no more than 40 PSI at water temperature no higher than 100 F.
5. Do not run a pressure test for longer than 24 hours. Inspect all parts immediately to verify they
are intact and functioning properly.
6. Fill strainer housing with water to suction pipe level. Never operate the pump without water.
Wate acts as a coolant and lubricant for the mechanical shaft seal.
Do NOT add chemicals to the pool/spa system directly in front of pump suction. Adding undiluted
chemicals may damage pump and voids the warranty.
