4. OPERATION
A. Installation
1. Make sure your input AC voltage is compliant with to the adapter specications.
2. Only use the power adapters provided with the CSW110. If you use your own adapter,
make sure the power output is 5V DC, 1A centre positive.
3. In a direct line-of-sight, the maximum range of A/V signal transmission can reach up to about
30 meters. This distance can be shortened by obstacles or walls placed between transmitter
and receiver. The optimum indoor range is under 30m.
4. To ensure a good infrared remote control operation, aim your remote control at the IR receiver
of the CSW110 and press the buttons rmly. For some remote controls it may be necessary
to press and hold each button for about a second. The working angle of the IR receiver is +/- 15°.
5. The remote controller has to be used within the distance of 0.3m - 5m at a working angle
of +/- 15°.
B. Transmitter & Receiver Pairing MODE
1. First press the “MODE” button on the receiver‘s box.

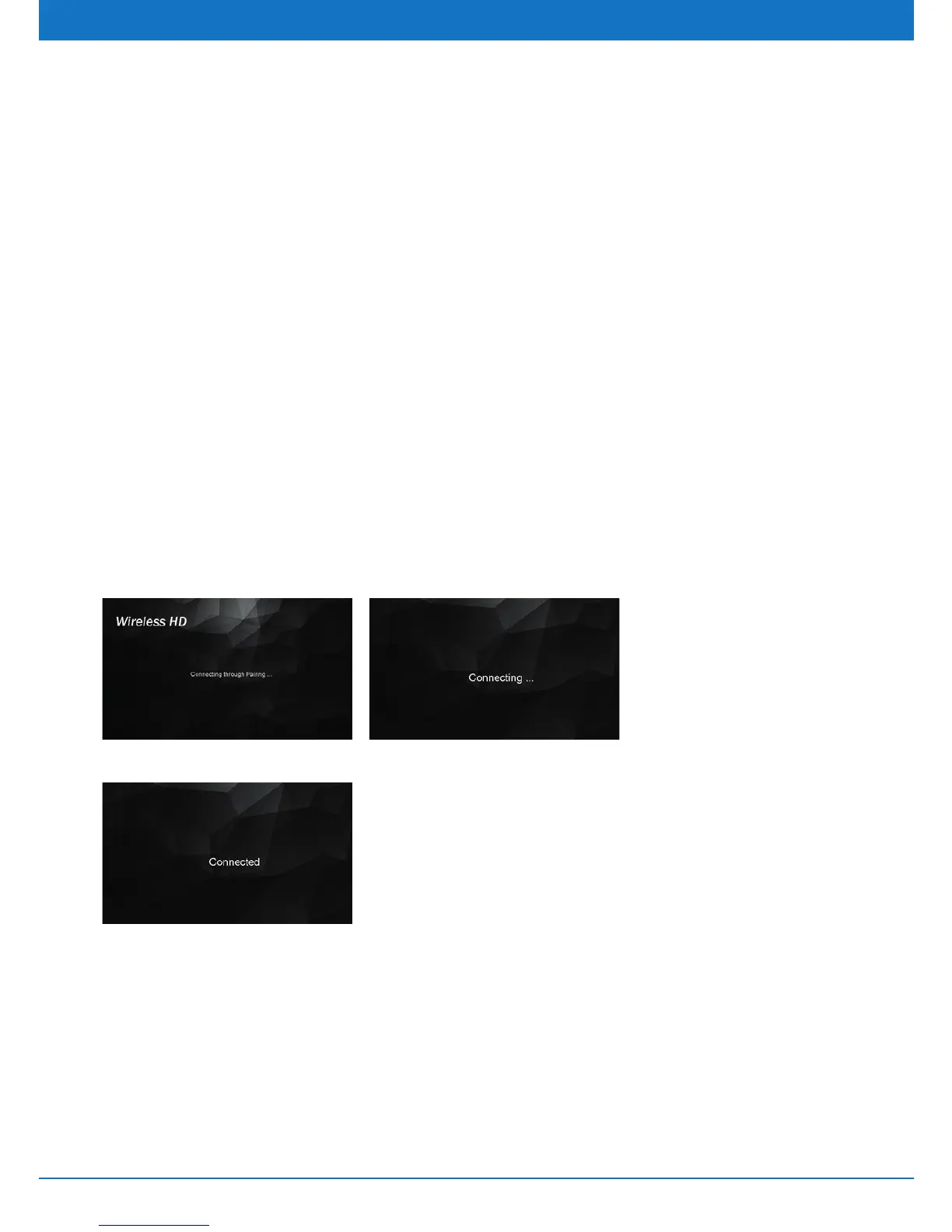

2. You will see a message “Connecting through Pairing ... ” on screen.
3. Then press the “MODE” button on the transmitter‘s box.
4. Wait for a few seconds for auto connection.
C. IR Extending Function
1. Make sure the IR emitter has been installed properly on the transmitter‘s box.
2. Make sure the IR receiver has been installed properly on the receiver‘s box.
3. Use the remote control of your source device to control the source form the receiver‘s box.
NOTE: Please do not cover CSW110 transmitter and receiver with any object! Those objects can
block the air circulation and cause serious defects and injuries. The warranty will also be void.
