SMC4-4-16A16B. Four-axis motion controller
Edition of 03.08.2016
18
www.purelogic.ru8 (800) 555 63 74
Red trace is the actual running tracks, F is the processing speed
Painting Quartet Case:
G0X0Y0Z0 X10F1200
Y10
X0
Y0
G02 G03
Format (1) G02X .. Y.. Z.. R.. F.. (Radius method)
(2) G02X .. Y.. Z.. I.. J.. K.. F (circle center method)
Format (1) G03X .. Y.. Z.. R.. F.. (Radius method)
(2) G03X .. Y.. Z.. I.. J.. K.. F (circle center method)

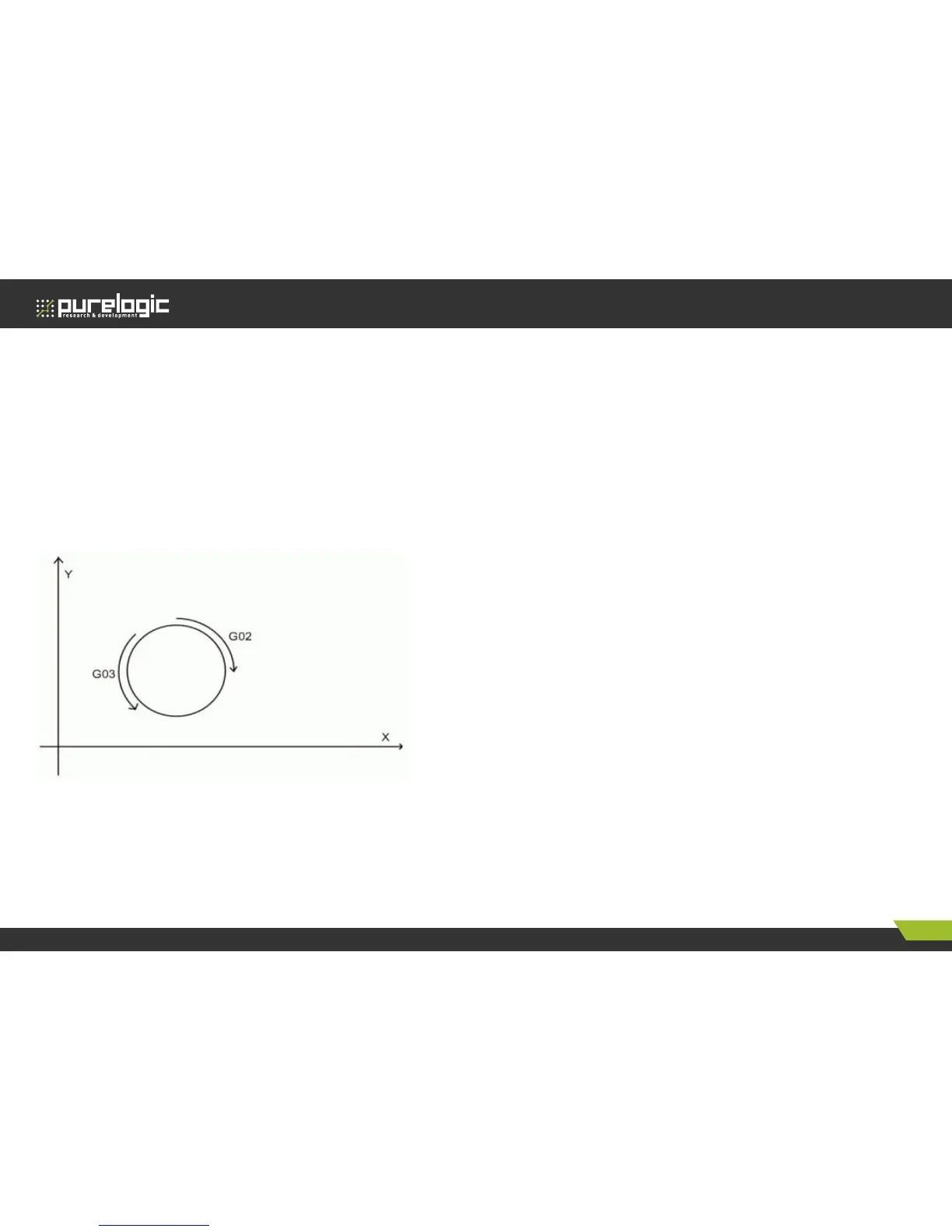

G02 clockwise circle G03 counterclockwise circle
