OPERATING INSTRUCTIONS

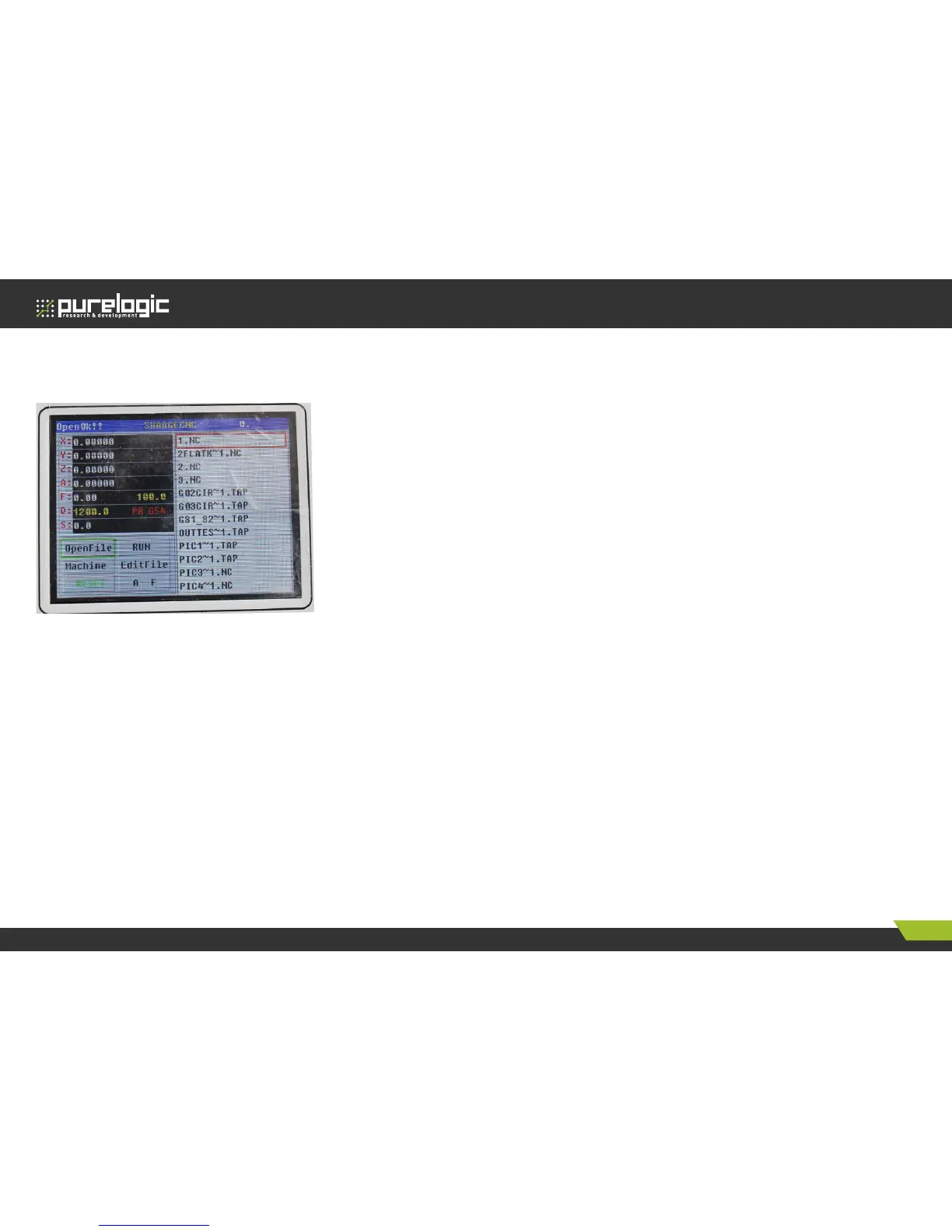

Boot screen:
This boot interface is divided into four zones:
• The top district: the main display file name now opens, real-time the number of processing rows.
• The coordinate display area: The main display real-time three-axis coordinate and real-time processing speed.
• The function key area: the main control keys.
• T file area: file name, or processed documents.
(Note: TF card support hot swap, when the new insert TF card, need to initialization after re-insert, so sometimes prompts OPENER, Just several
times «open file»!)
Because the system requirements for the TF card data is extremely strict, so the general low-end cards (cottage card) will be excluded, and then
replace the other genuine card reading! ! ! For HDSD (TF), because of the card problem, and can not fully understand, replace other cards and then read!
Machine Configuration Click the «Advanced Features» below, then click «motor parameters» to enter the following screen.
Word meaning explanation:
Pulse equivalent: the required number of pulses per unit length, (pulse volume required for each millimeter) support floating-point input.
Maximum speed: maximum speed of this motor can run (mm / min), when the input exceeds the maximum that the system can be achieved, The
maximum is the system can be achieved.
FUNCTION KEY AREA
Open the file
Starts running
Advanced features
Document Management
RESET (RESET)
Jog
The following screen appears after the control system is powered.
To Next Page
