« running before Continued points «:When a breakpoint in the point-to-point between N and N +1, running from N +1 to begin direct before Continued
points, Discards N to N +1 line processing track, please pay more attention.
«Exit» to give up this operation.
(Note: When the breakpoint then run large number of rows, Because need to find out Coordinate System and Continued points from the beginning,
There will be some computing time, TF card reader speed will affect the current operation speed, number of runs in the top left corner indicates).

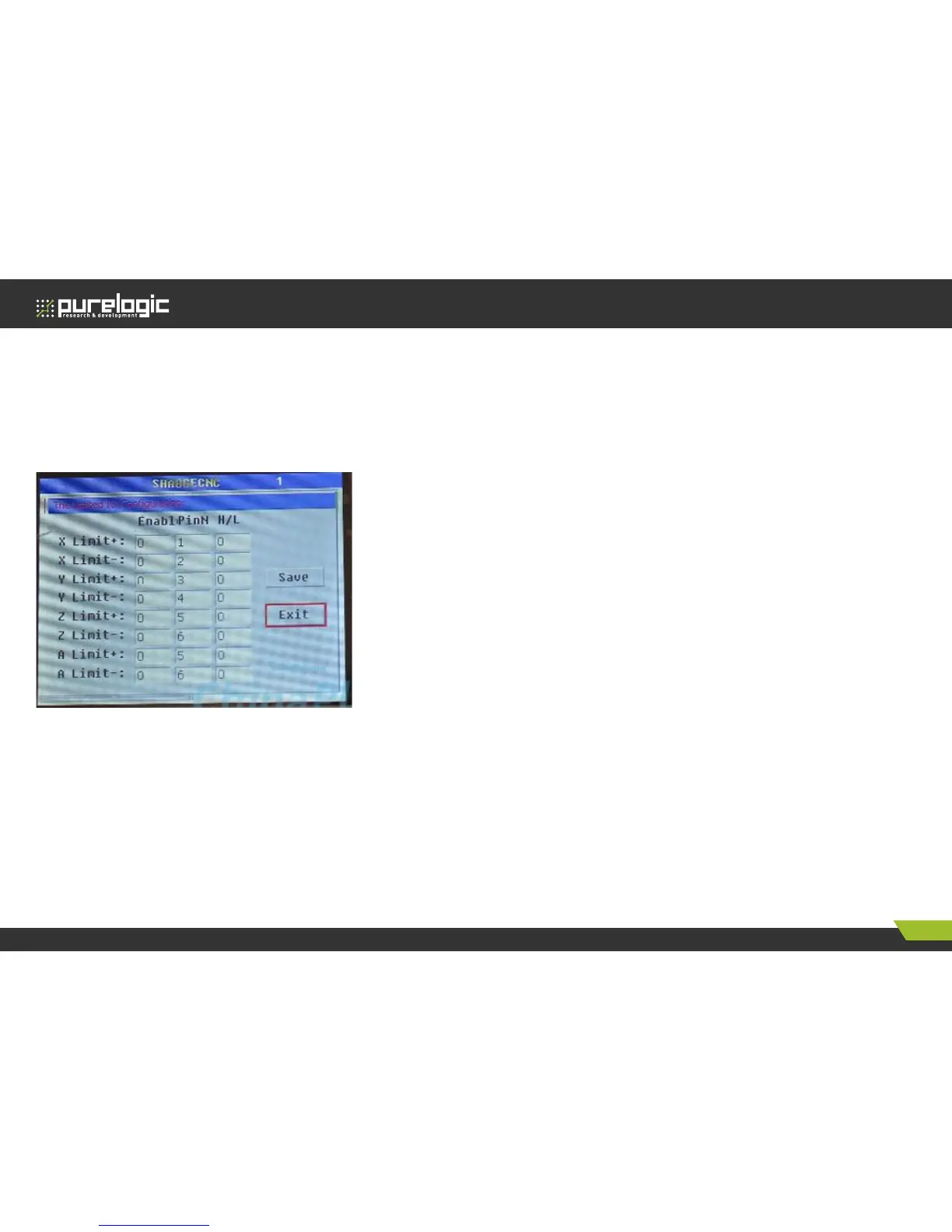

«Limit Input»
Enable: limit function is selected or not.
Pin: For the limit function is selected, the corresponding input pin (selectable 1-16)
Level: Input high level active or low level active (see Figure simulation)
«Mechanical origin»
Enable: limit function is selected or not.
Pin: For the limit function is selected, the corresponding input pin (selectable 1-16)
H/L: Input high level active or low level active (see Figure simulation)
