“Manual”Recovery Manual
«1mm»: When selected press the corresponding arrow keys will move the corresponding length (incremental moves)
If the current X-axis coordinate X: 1.235, select 1mm
If you press X +, X-axis immediately moved 2.235 If you press the X-, X-axis is moved immediately 0.235
If you want to move to a specific length, you can enter the specific numbers in the input baskets.
(Only press «OK» button to turn yellowish after baskets can be entered,Returns green effectively), Press the corresponding axis direction key.
Corresponding X + X-Y + Y-Z + Z-A + A-are valid
Panel Shortcuts X Y Z A «direct coordinate operations.»
«Run to» corresponding axis directly run to the specified coordinates.
«Change coordinates»: corresponding axes directly change toto the number set (This operation is not reversible, please carefully Operation)

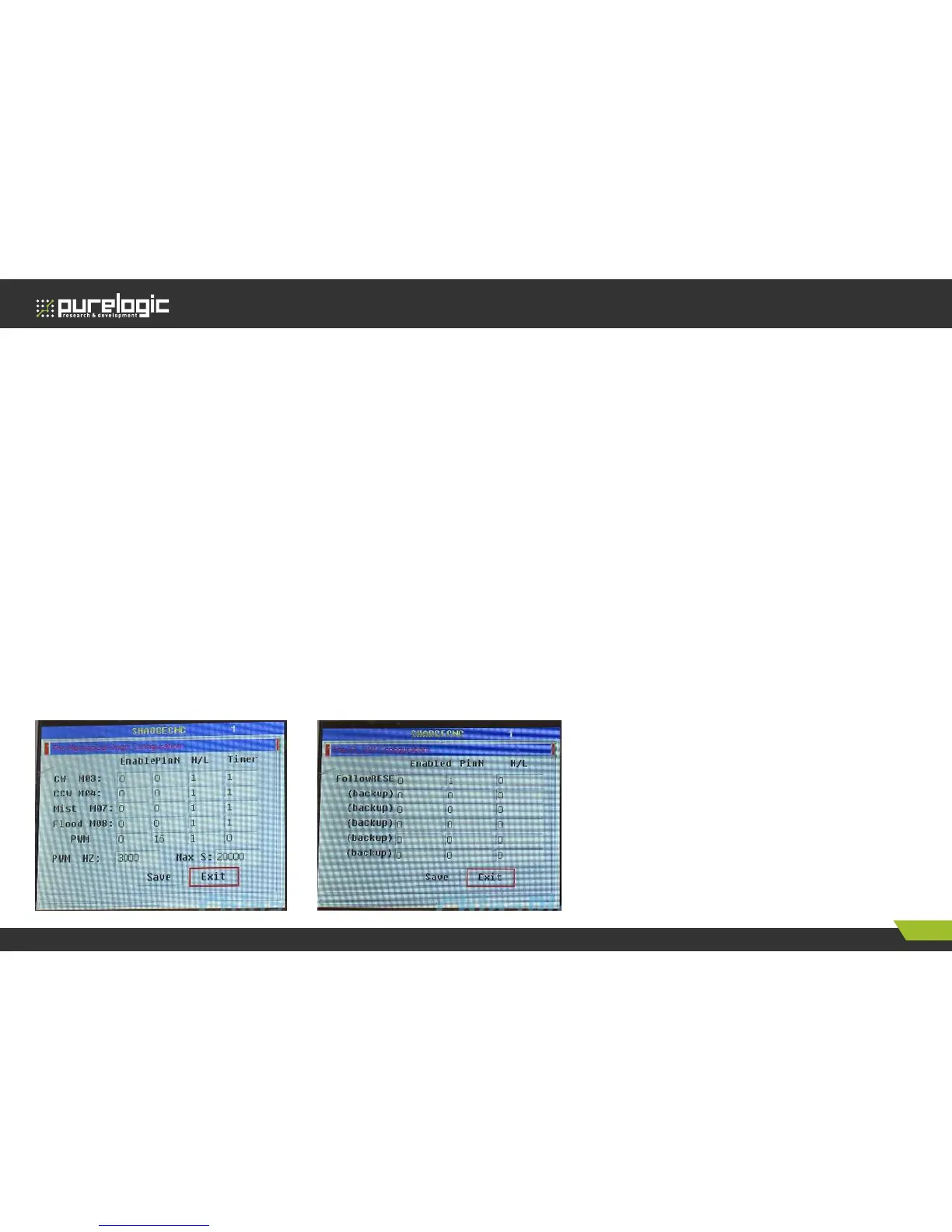

Spindle control
M03, M04, M05
M03 clockwise run: Now close the M04 corresponding pin, open the M03 corresponding pin.
M04 anti-clockwise run: Now close the M03 corresponding pin, open the M04 corresponding pin.
M05 will also close the M03, M04’s pin
M07, M08, M09
M07 open the corresponding pin will not affect the M08 M08 open the corresponding pin will not affect the M07 M09 will also close the M07, M08’s pin
Delay: Open M03, M04, M07, M08 time spent
PWM pin is fixed at 16 feet, such as opening the pin corresponding to the OUT output should be removed, or due to both control and conflict! ! !
PWM Frequency: refers to the frequency output MAXS: refers to the maximum S corresponding to the maximum frequency was Duty Cycle = S (G
instructions given value) / (MAX S)
