Legitimacy of the parameter (in XY plane):
circle center method can be obtained directly radius R = sqrt (i ^ 2 + j ^ 2), If the length of the line start and end points of the arc is greater than 2R is
impossible to go wrong prompt.
When the above conditions are satisfied, the system will recalculate the center coordinates of the most reasonable, When it has some deviation
with given center coordinates actually,Called super difference,If this deviation value is greater than the system given,it will prompt an error,This super
difference can be set in the system,Facilitate more rapid input parameters.
(Note:The difference between the actual center of the arc can constitute
And input circle center called super difference,This difference can be super-max settings, you can tolerate a wider parameter input limit)

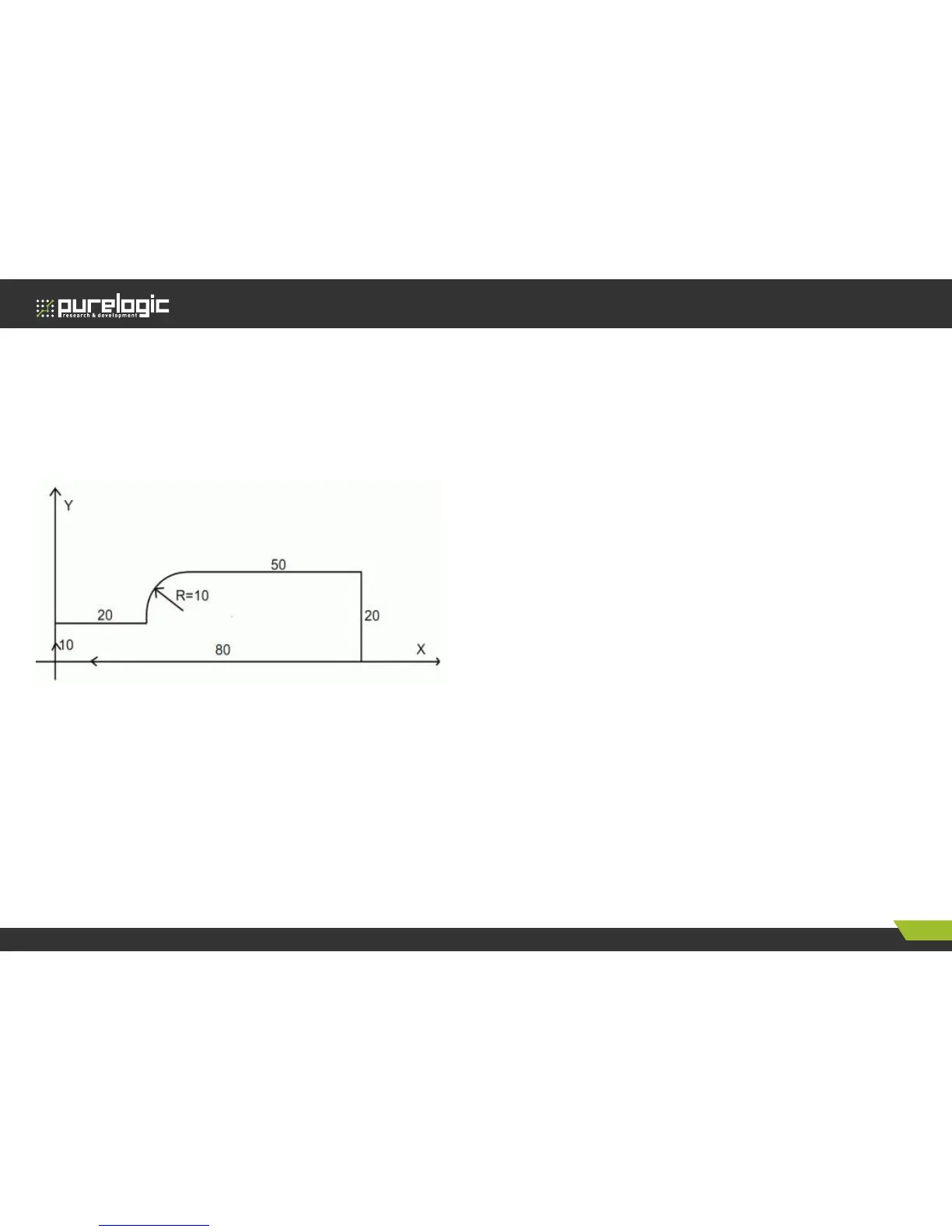

Case: G0X0Y0Z0 G1Z-1F1200 Y10 X20 G02X30Y20I10J0 G1X80
Y0
X0
G0X0Y0Z5
Radius method:
G02 (G03) X.. Y.. Z.. R.. F..
