4.2 Recommended Work Area Allowance
Do not block the ventilation openings on the IoN 3 MHz system. Room air is drawn into the system
through the two vents on either side of the system and out through the upper fans on the back top of
the system. Blocking the vents or preventing proper air flow could cause the system to overheat and
malfunction.

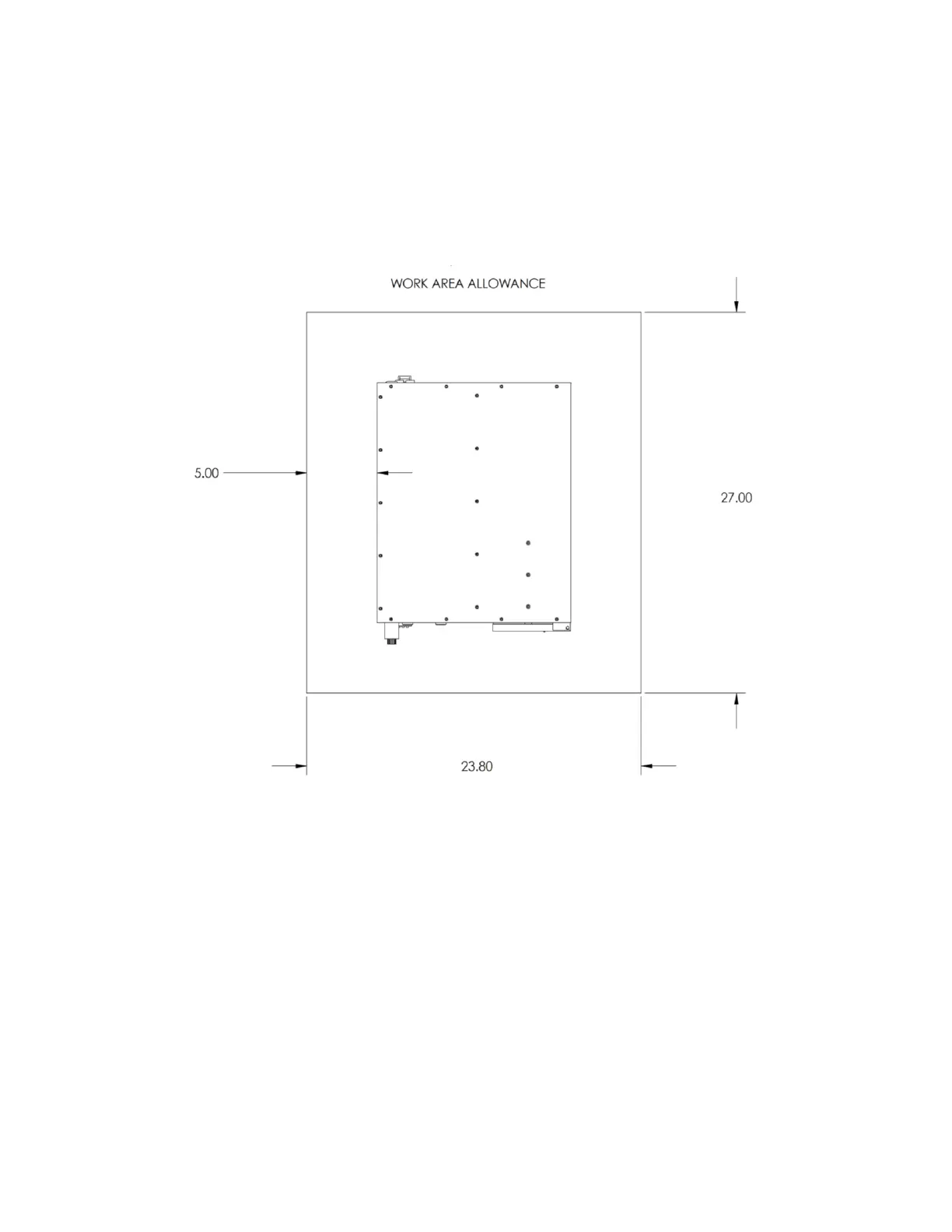

Figure 4-1 Work Area Allowance
Youwillneedapproximately23”inthebackofthesystemwhenyouchangethepumpoil.
