Document No.: 1P0446-1 Rev. B, April 7, 2014
VACUUM has been depressed, the PROCESS START has been depressed and the system has reached
a vacuum pressure of at least 1 Torr.

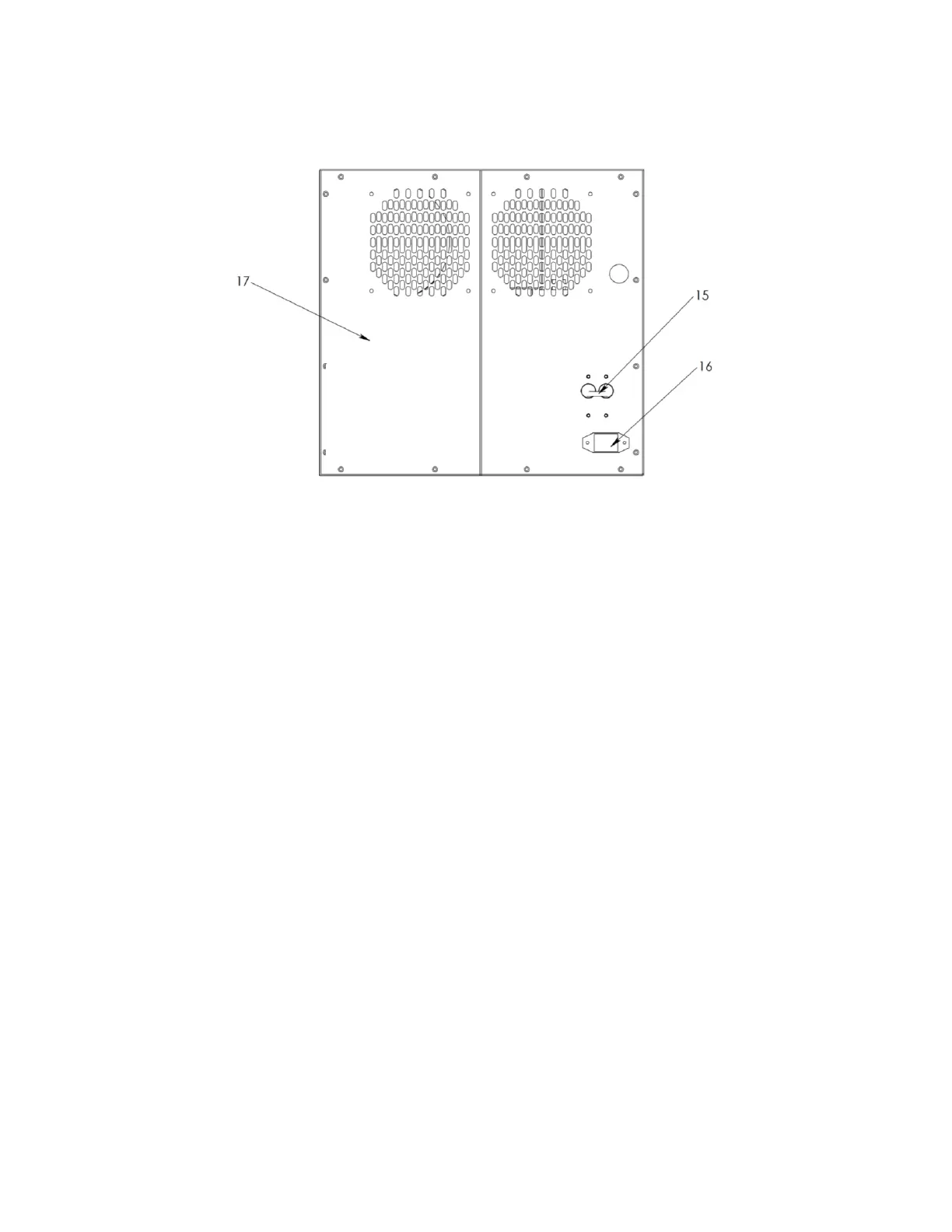

Figure 5-3 rear panel
15. CB1 – This circuit breaker is designed to cut off the flow of electricity if the current demand is
over 10 amps. To reset the system, simply push this circuit breaker lever to the ON (or up) position.
16. AC1 – This IEC60227 male AC Power plug allows for 110V to 230V connection to the IoN 3 MHz.
Requires a grounded three prong plug with a minimum conductor size of 1.31mm
2
(Various plugs can
be provided depending on local electrical requirements).
17. Back Panel – The KF25 flange emerges at this area.
