ww w.PyleUSA.com
6

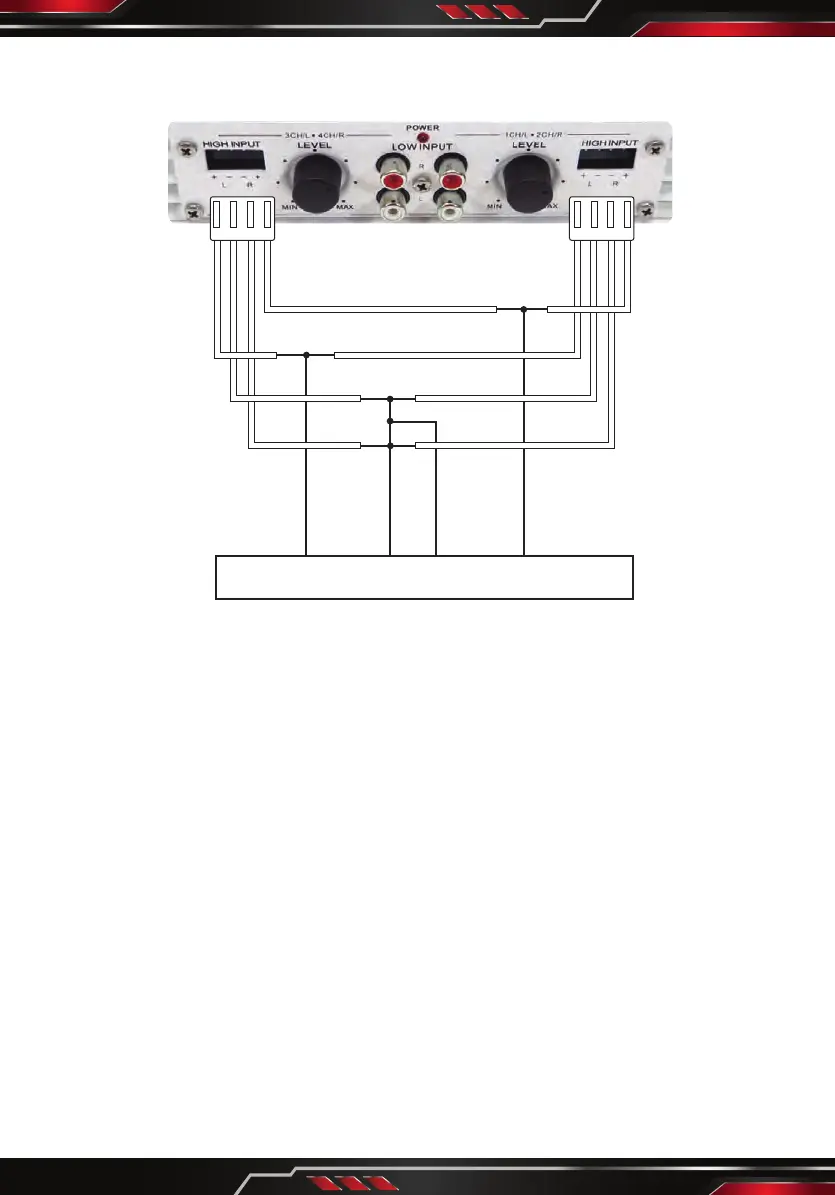

b-2. Common Ground Type
NOTE: High and low impedance input cannot be used at same time.
B. SPEAKER CONNECTION
Connect the speaker output terminals to the corresponding speakers. (Figure 5)
The speakers must be high quality and capable of handling high power.
Separated return paths and strong wires are required. (Fig. 5)
NOTE:
This amplier has built-in short circuit protection. If you mistakingly connect any
speaker wires to ground, or positive power (+) and (-) wires short together, the
protection circuit will operate automatically and cut-o output. In case of this,
you must switch OFF the whole system immediately double check speaker wire
connections and isolation before switching on the amplier again.
LEFT
COMMON
RIGHT
CAR STEREO
FIG 4A
