C. POWER CONNECTION
1. Connect the B+12V pole of power supply directly to the battery (+) position
terminal.
2. Connect the GND pole of power supply directly to the (-) negative ground
battery terminal or car chassis.
3. To make a good grounding and prevent motor boating noise problem connect
another 12 gauge minimum wire from the (-) negative battery terminal to
chassis of stereo unit.
4. Connect the 'Remote' pole to external switch for positive 12V ON/OFF.
This may be connected to the receiver power antenna lead.

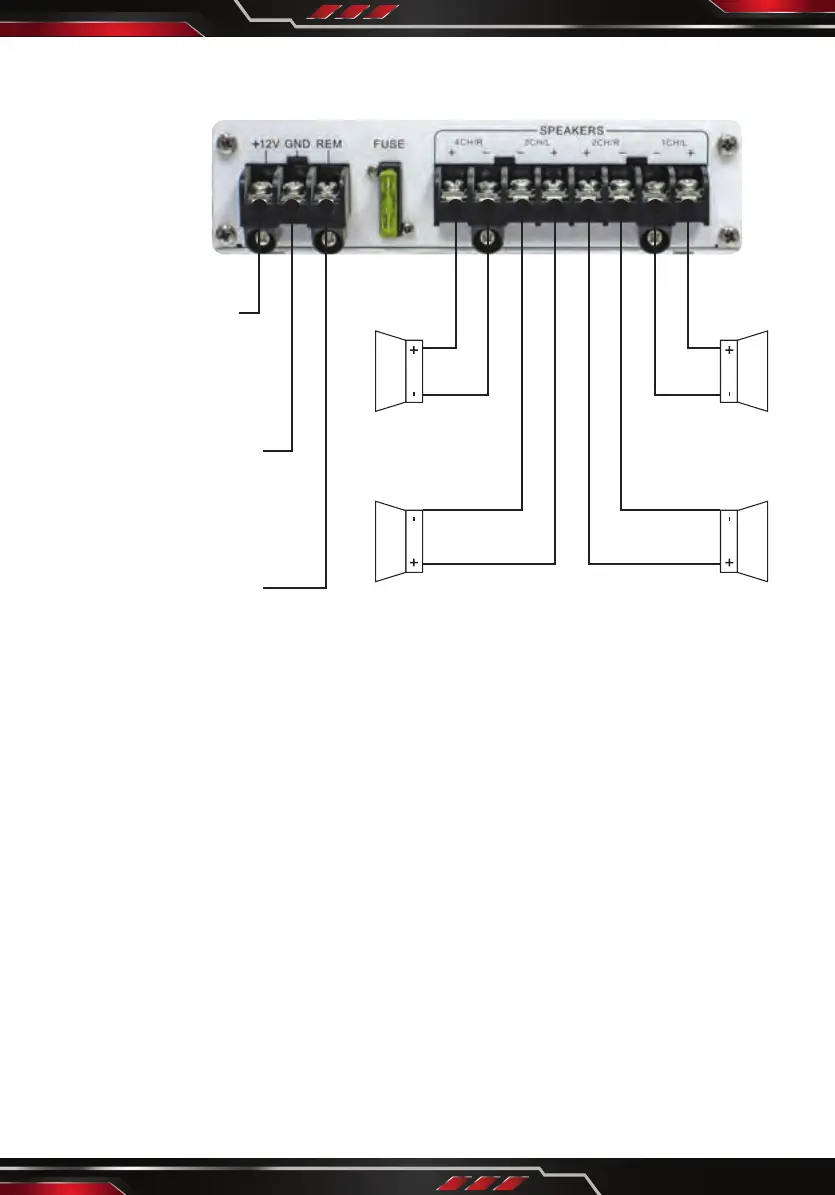

1 LEFT SPEAKER
2 RIGHT SPEAKER
4 RIGHT SPEAKER
3 LEFT SPEAKER
MAIN POWER LEAD
TO CAR BATTERY
POSITIVE TERMINAL
GROUND LEAD
CONNECT TO A WELL
GROUNDED METALLIC
PARTOF YOUR CAR
REMOTE SWITCH
CONNECT POWER ANT
ACC LEAD WIRE OF
YOUR CAR STEREO
FIG 5
