2) For External cable kits:
NOTE: Power and communication cables connected to the inverter belong to
an
External Cable Kit, NOT included in battery carton box. They are in
another
extra small cable box. If there is anything missing, please contact the
local dealer.

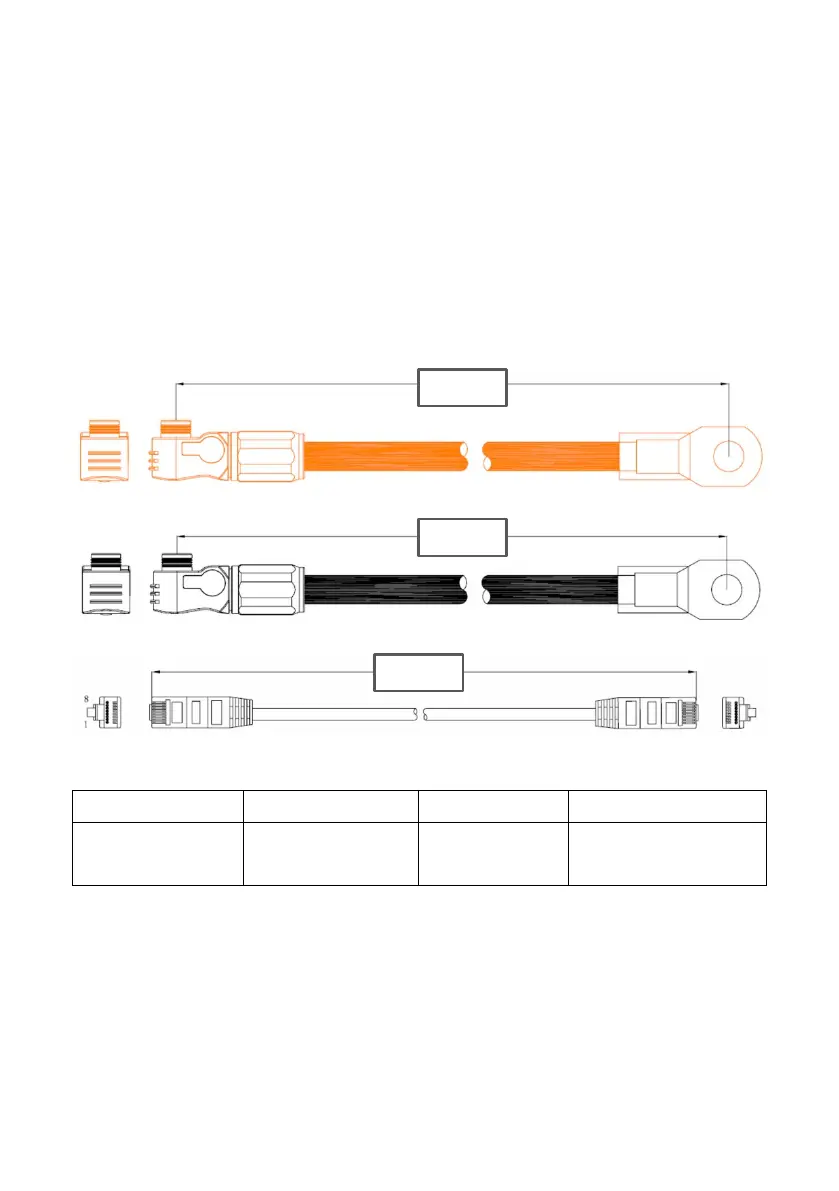

- 2 x 2000 mm power cables (4 AWG, peak current capacity 120 A, constant
100 A) and communication cable for each energy storage system.
- 1 x 3000 mm RJ45 communication cable, specification as below:
SN of RJ45cable Mark Pin Description
WI0SCAN30RJ1
With blue mark:
Battery-Inverter
1~3: NULL
4~8: pin to pin
For connection to
inverter and HUB.
For the external cables, the length should be less than 3 meters.
