20

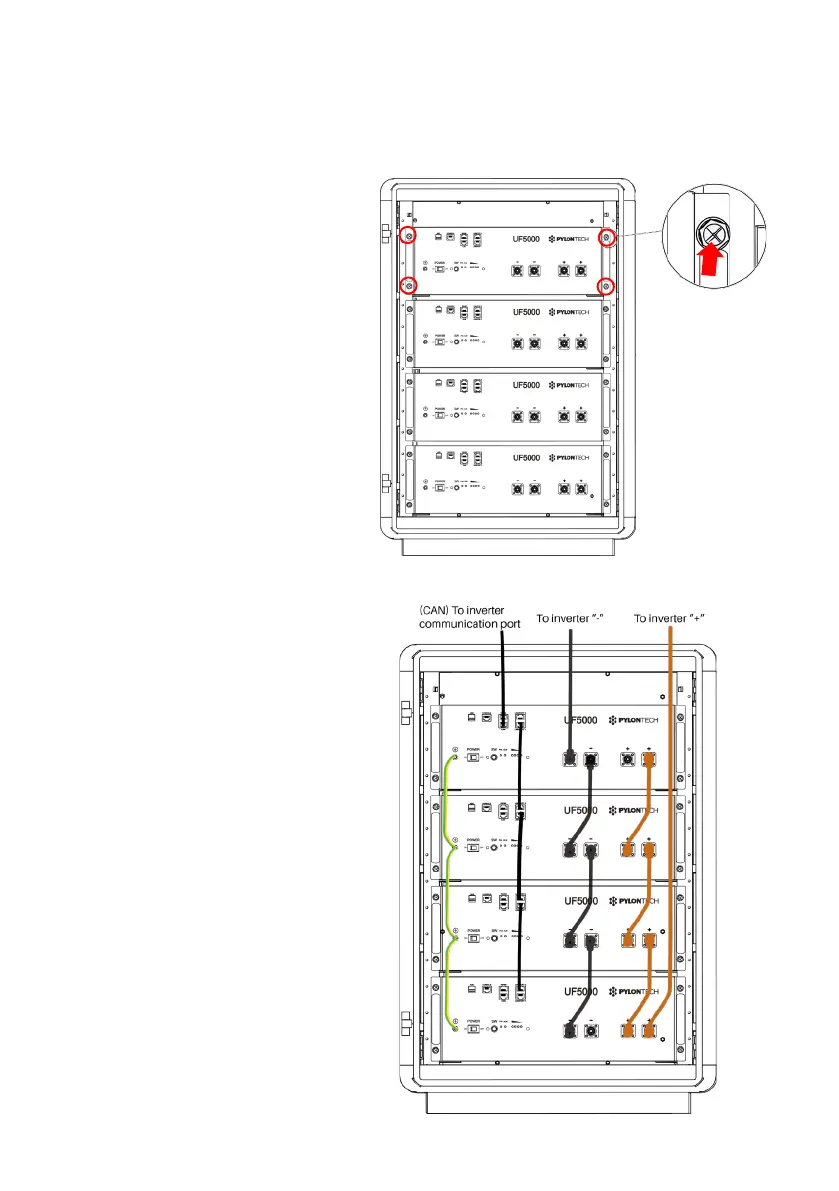

5.5 Installing batteries into the cabinet or rack
Put the battery modules into the cabinet and connect the cables.
1) Put the battery into the cabinet.
2) Fasten the 4 screws for each
module.
3) Connect the cables between battery modules as shown.
4) Connect the cables to inverter.
