Pylontech UF5000 Series - Stacking the Batteries with Brackets

21
5.6 Stacking the batteries with brackets

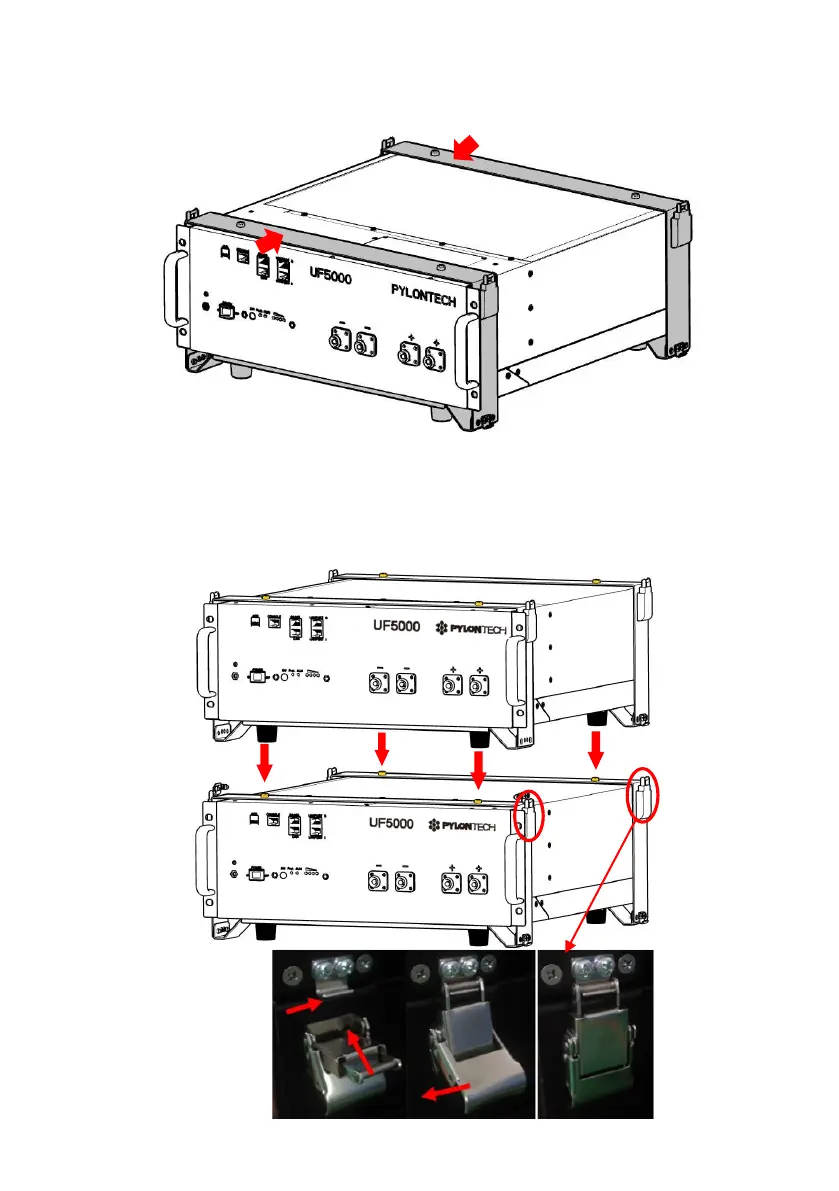

1) Install 2 brackets on both the front and back sides of the battery as follows.
2) Stack the batteries together aligning 4 location holes. And lock the 4
buckles respectively.
NOTE: Maximum 3 batteries are allowed for stacking in one vertical row due
to the load-carrying capability of the brackets.
