8
3.3 Equipment interface

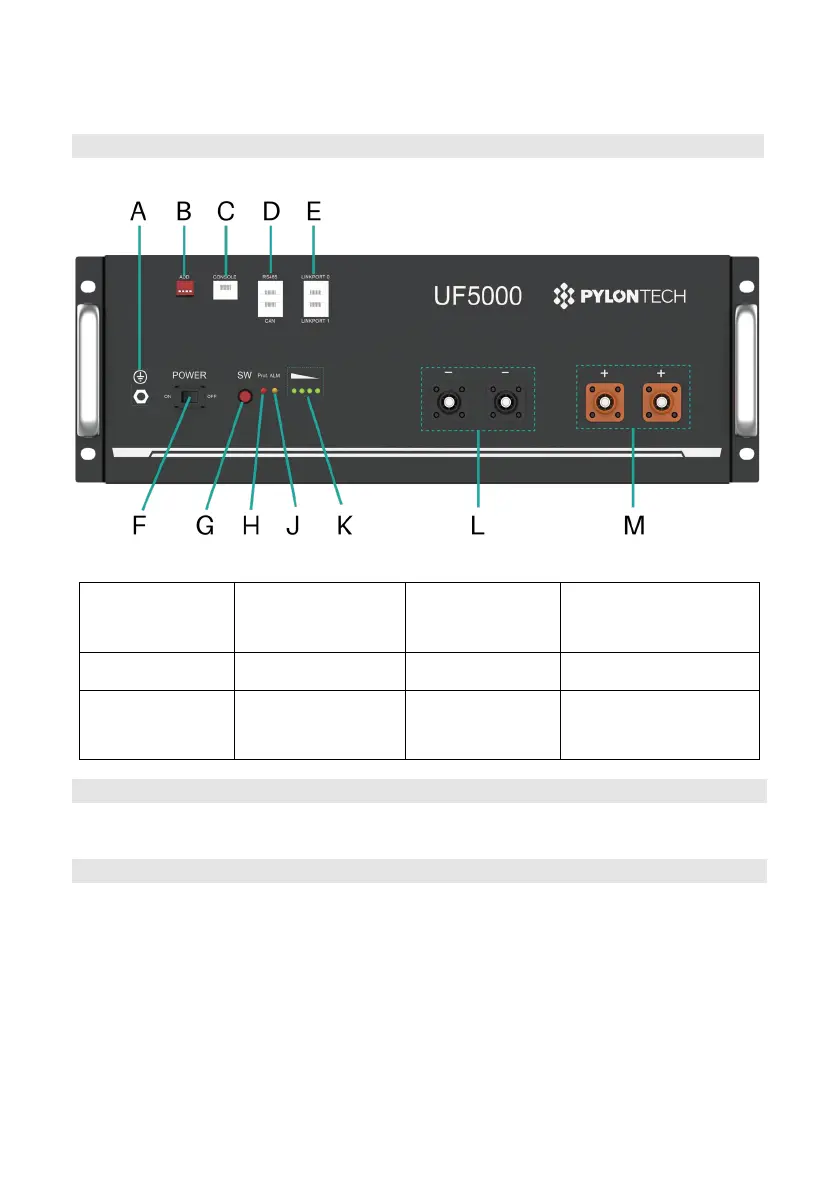

UF5000 front panel
A. Grounding
Point
B. Add (Switch) C. Console D. RS485/CAN
E. Link Port 0/1 F. Power Switch G. Start H. Protection(Prot.)
J. Alarm(ALM) K. SOC L. Power
Terminal(s) -
M. Power
Terminal(s)+
A. Grounding Point
To connect the grounding cable.
B. Add(Switch)
Dip1: RS485 baud rate: 1: 9600; 0: 115200. After it is changed, please restart the
battery.
Dip2 ~ 4: Based on design of BMS, the dip switch is deployed physically
reversely.
