2) Cable connection: Communication cable connection:
The one with empty Link Port 0 is the
Master Battery Module, Which is connected
to the Inverter, other batteries are slave
batteries.
1 Master Battery configure with maximum
15 Slave Batteries in one string.

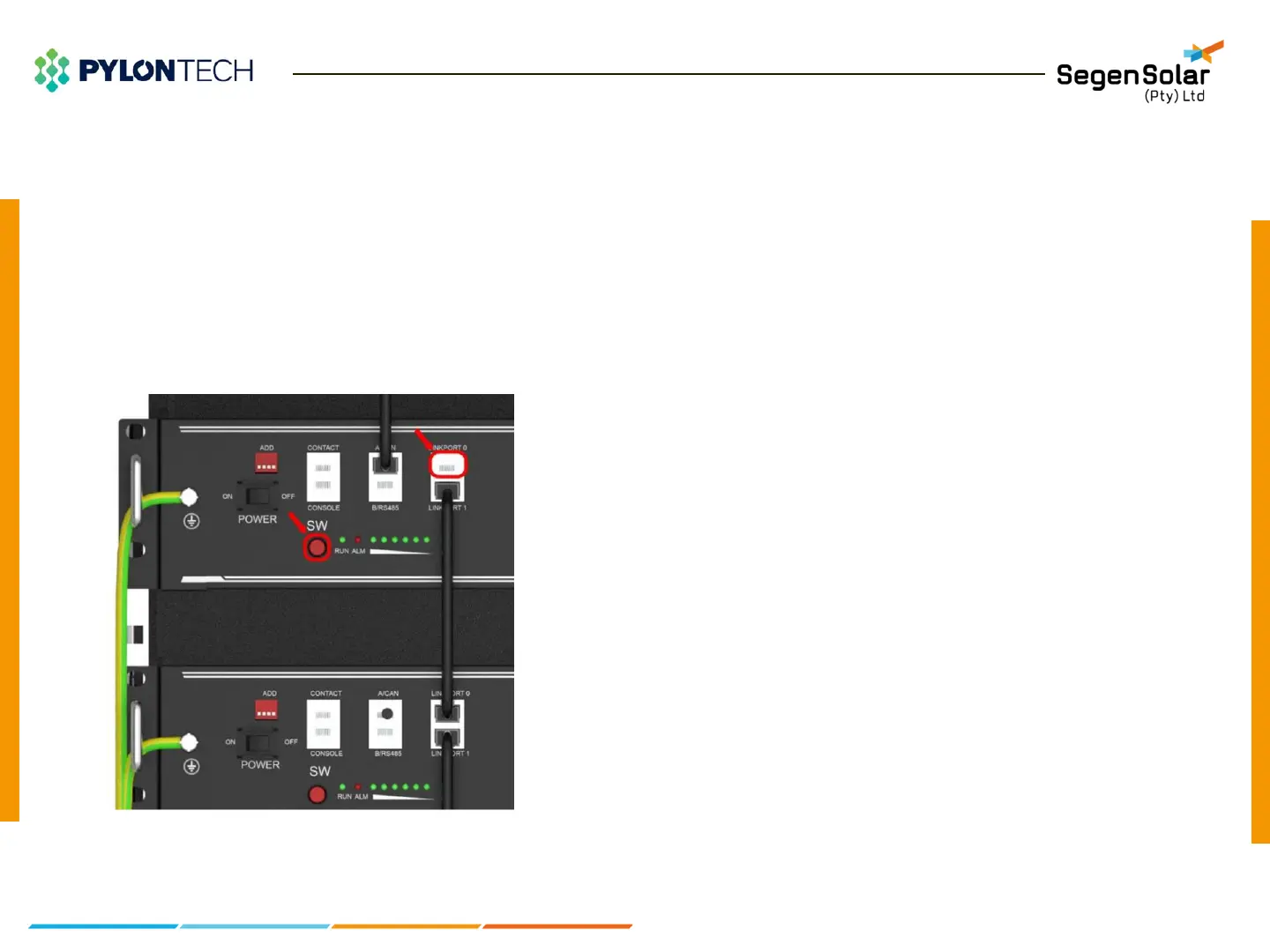

Figure 12: Battery communication cable connection diagram
Installation
