Connection Diagram-Sunsynk

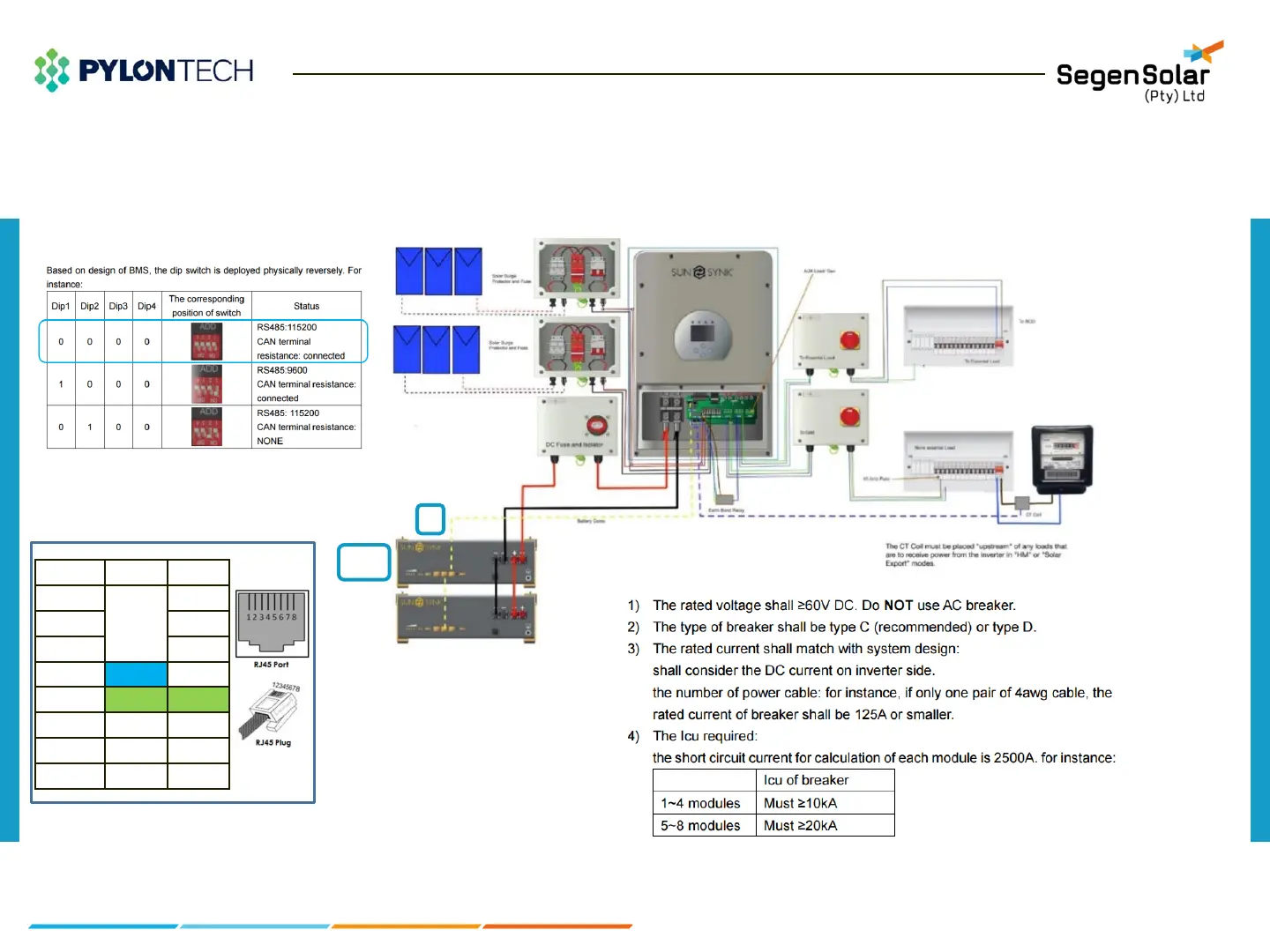

Figure 21: Pylontech batteries with Sunsynk inverter connection diagram
CAN BAT inverter
Pin1
Pin2
Pin3
Pin4 CAN-H CAN-H
Pin5 CAN-L CAN-L
Pin6
Pin7
Pin8
*** Suitable Breaker
*
**
* ADD Switch
** Comm. Cable PINOUT
