1) Cable connection for RS485:
• Make sure all dip switches of master batteries are R0XX, then turn ON batteries. R: is the
baud rate of RS485 needed, all master batteries shall be the same.
• After all batteries are in running mode, the buzzer of master battery in group1 will ring
3 times. This means that all groups are online.
• The interruption of each RS485 command shall ≥ 1s.

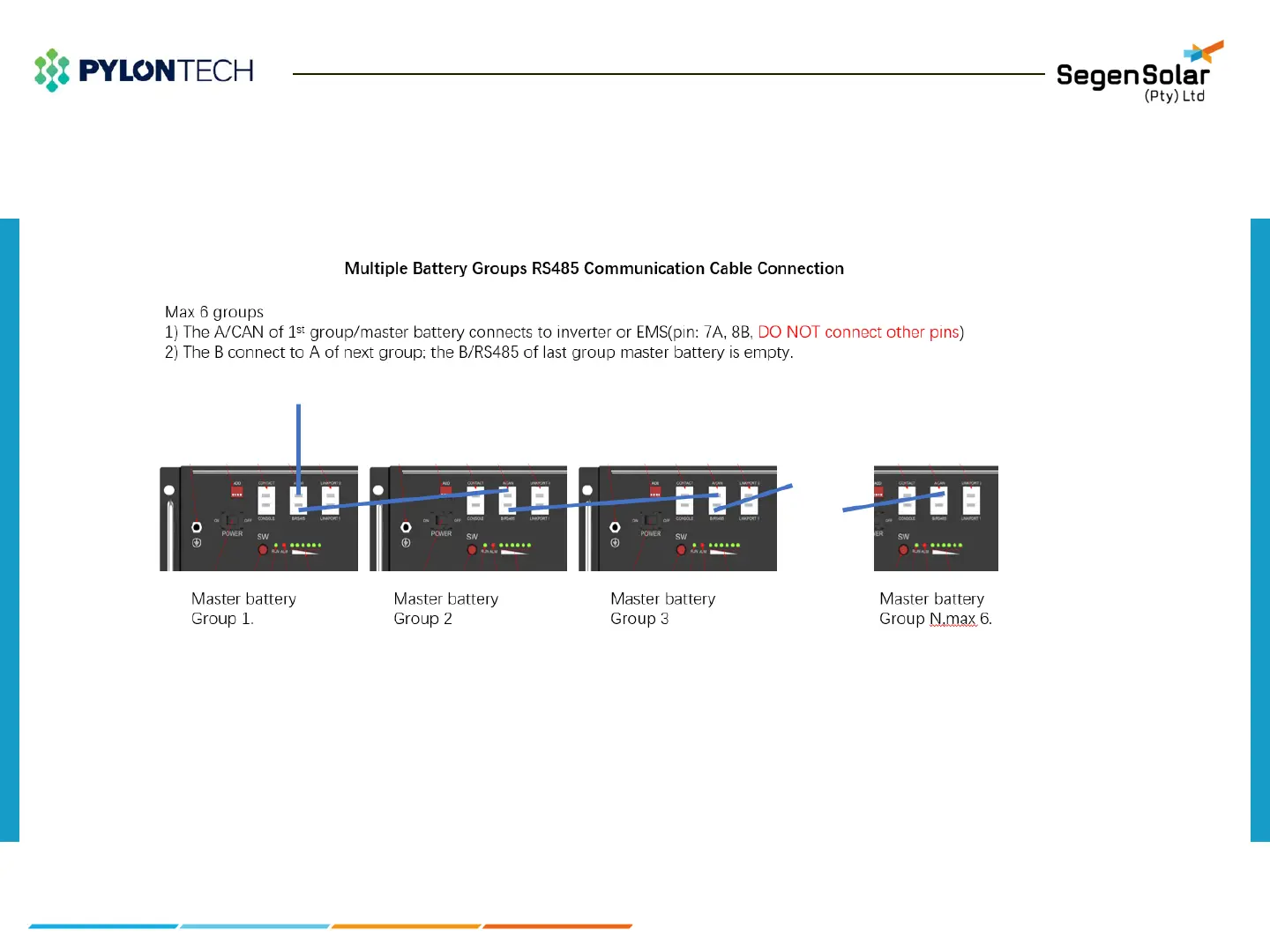

Figure 22: RS485 bus communication cable connection diagram for Pylontech batteries

Pylontech US3000C Specifications

General

Battery Type	Lithium Iron Phosphate (LiFePO4)
Nominal Voltage	48V
Capacity	74Ah
Discharge Current (Recommended)	37A
Discharge Current (Maximum)	74A
Communication	CAN, RS485
Cycle Life	6000 Cycles @ 25°C
Operating Temperature	-10°C to 50°C
Scalability	Up to 16 units in parallel
Certification	CE, UN38.3
