Q'STRAINT QUANTUM User Manual

20

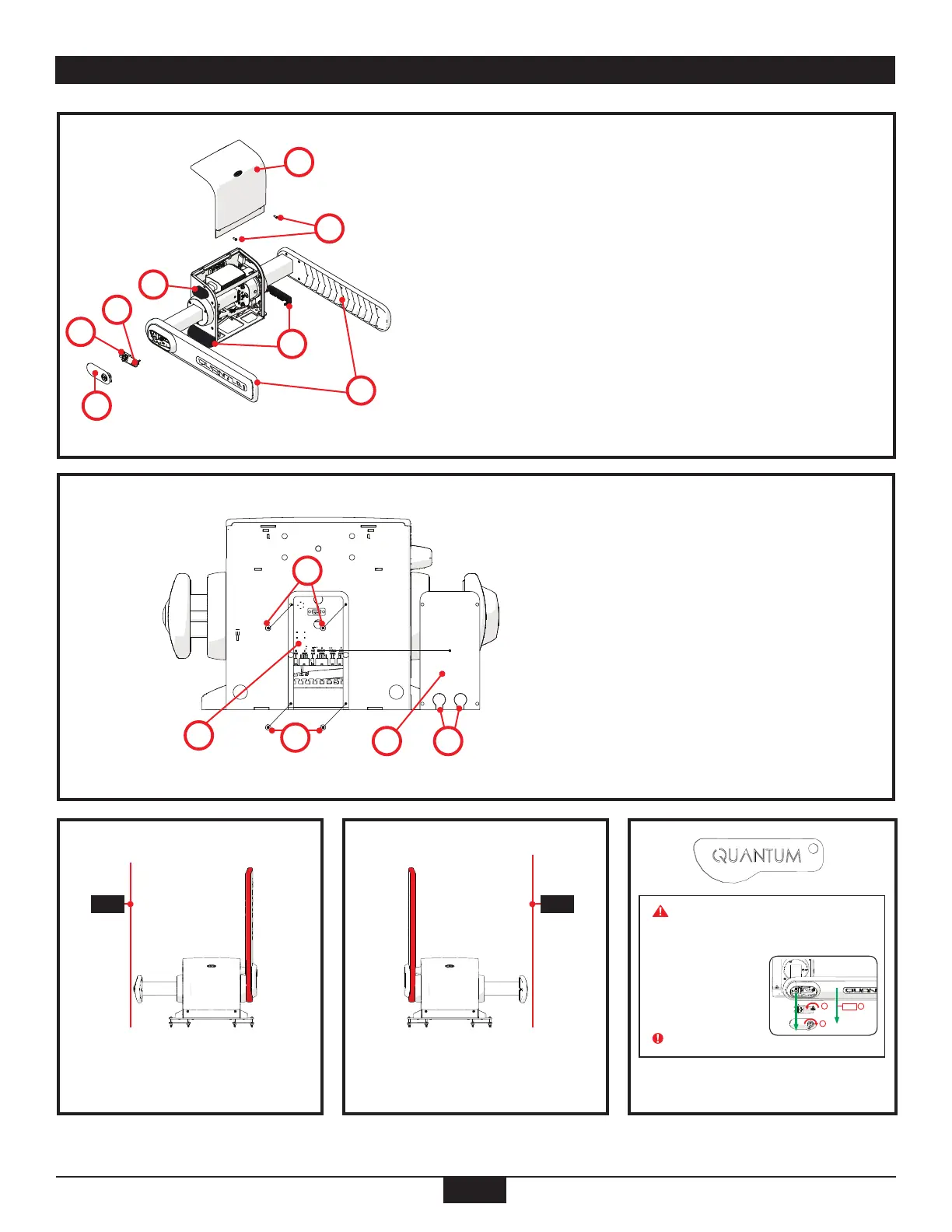

EQUIPMENT AND PART NUMBERS
1. Manual Release Cover (Curbside, US and CA) (Street Side, UK)
(part# QS99091R)
Manual Release Cover (Street Side, US and CA) (Curbside, UK)
(part# QS99091L)
2. Manual Release Fork (Curbside, US and CA) (Street Side, UK)
(part# QS99081R)
Manual Release Fork (Street Side, US and CA) (Curbside, UK)
(part# QS99081L)
3. Black Release Lever
4. Docking Block (part# QS99065)
5. QUANTUM® Cover (part# QS99058)
6. Screws for QUANTUM® Cover (part# H20001)
7. Flexible Rubber Grip (part# QS99075)
8. Base Feet (part# QC06045)
1
2
3
4
5
6
8
7
1. Electrical Panel (part# QS99066)
2. Screws for Electrical Panel Cover (part# H20004)
3. Electrical Panel Cover (part# QC04084)
4. Knock-Out Holes
2
1
3 4
2
QUANTUM® Key with Manual
Release Card (part# Q5-1301)
8
Wall
8
Wall
QUANTUM® - (Street Side, US and CA)
(Curbside, UK) (Left) (part# Q09L001)
QUANTUM® - (Curbside, US and CA)
(Street Side, UK) (Right) (part# Q09R001)
MANUAL RELEASE
1. Insert Quantum® Key (or Quarter) in the
slit on the Manual Release Cover and
turn it to the right (cover pops out).
2. Flip out the Black Release Lever,
turn it 90 degrees to the
left and remove the
Manual Release.
3. Pullout Rotational Arm in
order to release the wheelchair.
Unit MUST be serviced
after every Manual Release.
Pullout
3
2
1
See Video,
Scan QR Code
1
2
3
Pullout
