24

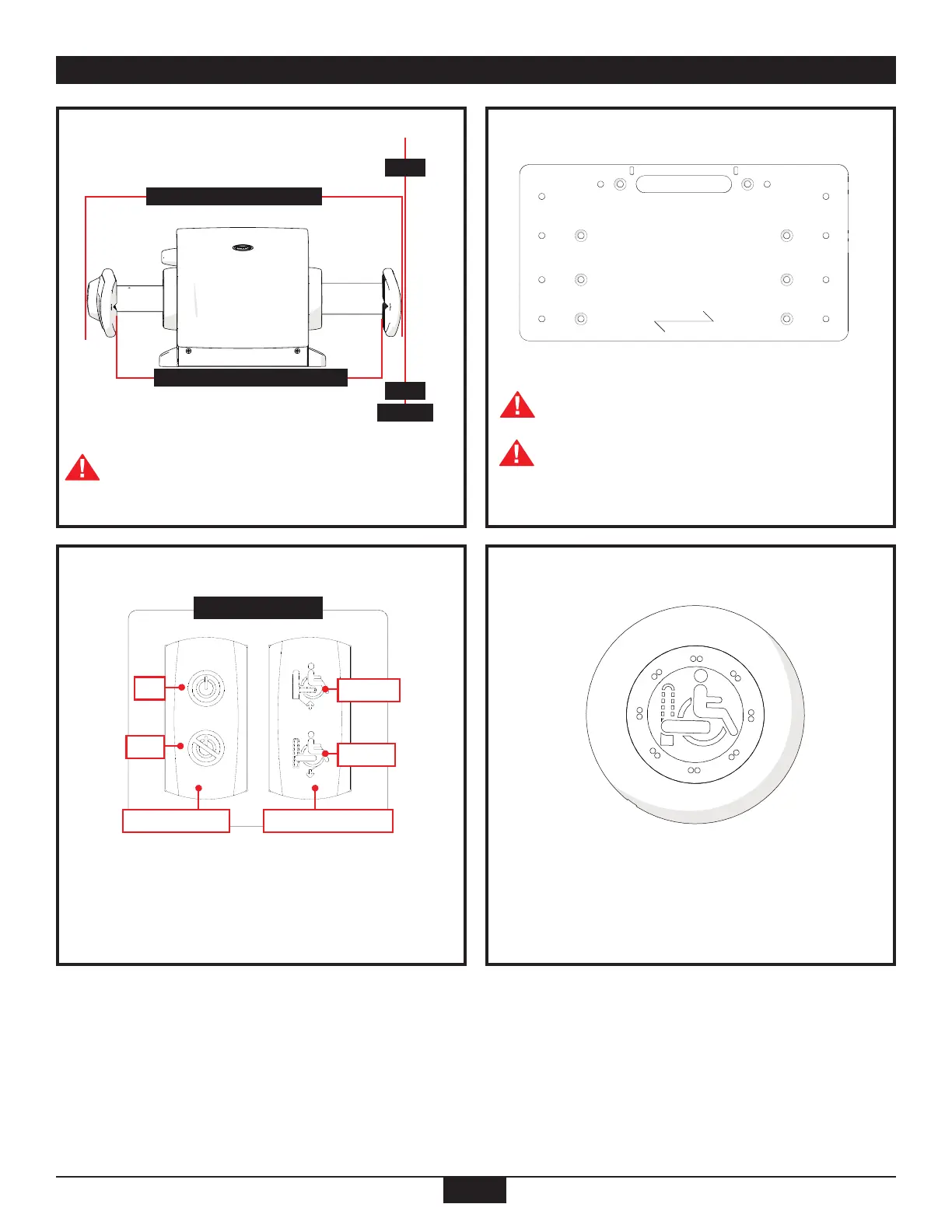

LOCATION RECOMMENDATIONS
38” (965mm) Fully Extended (Outside)
33.14” (842mm) Fully Extended (Inside)
Wall
0.25”
(6.35mm)
When Arms are fully extended (38” or 965mm outside
length), the Non-Rotational Arm cannot be closer to the
wall or the thin flip-up theatre seats than .25” (6.35mm).
The Mounting Plate Must be installed on a flat and
durable surface.
Secure
Release
ON
OFF
Master Switch Occupant Switch
Driver Interface
Driver Interface
Near or on driver’s console. This however should be
determined by the original equipment manufacturer.
Occupant Interface
It should be mounted next to the QUANTUM® Securement
System on the wall or underneath thin flip-up theatre seats.
The occupant must be able to reach it.
The images of the Mounting Plate and Supporting
Plates illustrated in this manual are a representation
of the Basic Plates. The Plates will vary depending on
the Bus Configuration.
