4 – Managing Switches
Configuring a Switch
59226-00 B 4-25
A
4.7.4
Network Properties
Use the Network Properties dialog shown in Figure 4-11 to change IP
configuration parameters and enable remote logging. After making changes, click
the OK button to put the new values into effect. To open the Network Properties
dialog, select a switch in the topology display or open the faceplate display, open
the Switch menu and select Network Properties.

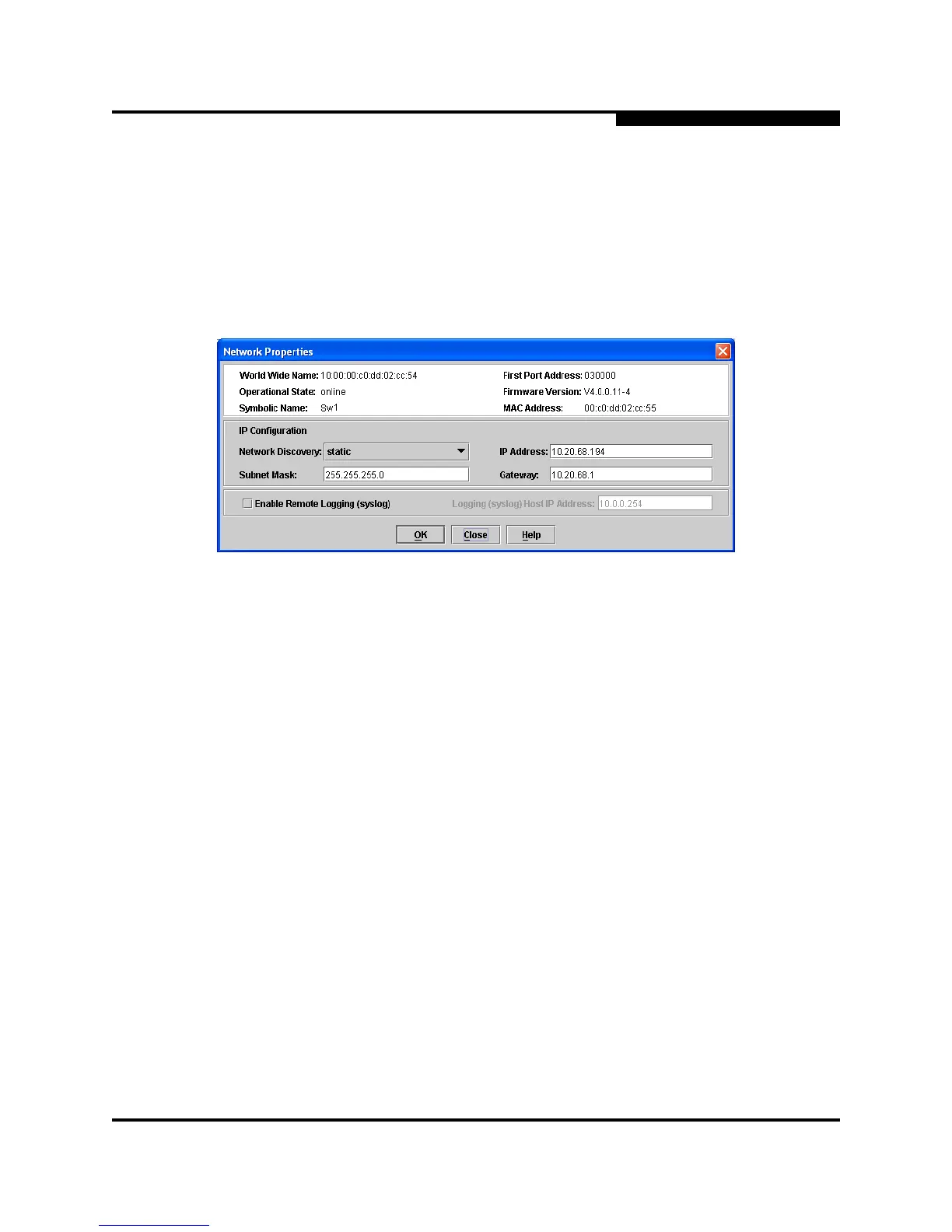

Figure 4-11. Network Properties Dialog
