5 – Managing Ports
Configuring Ports
5-10 59226-00 B
S
5.2
Configuring Ports
The port settings or characteristics are configured using the Port Properties
dialogs shown in Figure 5-2. To open the corresponding type of Port Properties
dialog, select one or more ports, open the Port menu and select Port Properties.

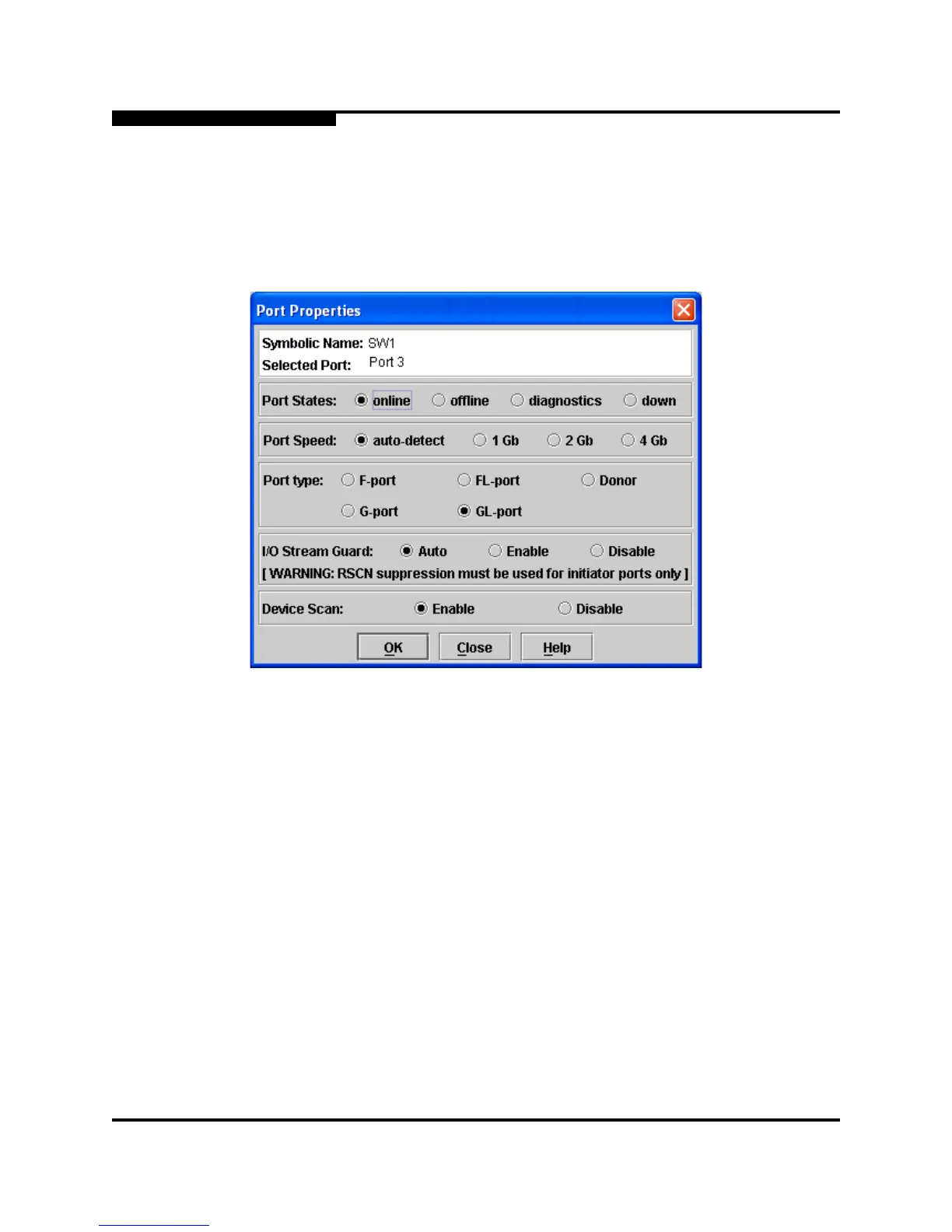

Figure 5-2. Port Properties Dialog
The Port Properties dialog displays the switch name and the selected ports. Use
the Port Properties dialog to change the following parameters:
Port state
Port speed
Port type
I/O Stream Guard (RSCN Suppression)
Device scan
