59226-00 B 5-1
Section 5
Managing Ports
This section describes the following tasks that manage ports and devices:
Displaying Port Information
Configuring Ports
Using the Extended Credits Wizard
Resetting a Port
Testing Ports
Graphing Port Performance
5.1
Displaying Port Information
Port information is available primarily in the faceplate display shown in Figure 5-1.
The faceplate display data windows provide information and statistics for switches
and ports. Use the topology display to view status information on fabrics,
switches, and links between switches.

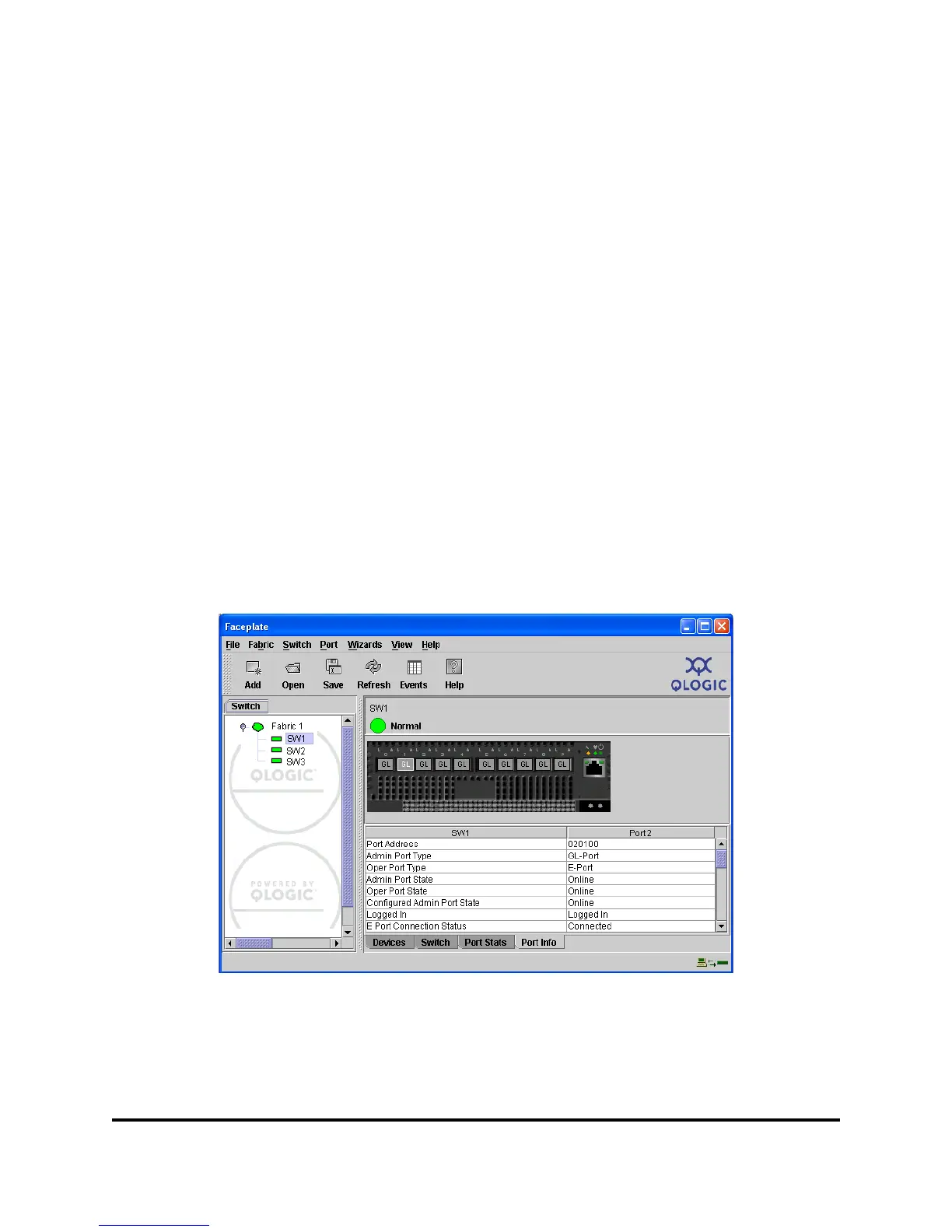

Figure 5-1. Faceplate Display – Port Information
