QMTECH XC7A35T SDRAM - QM_XC7 A35 T_SDRAM 3.3 V Power Supply; QM_XC7 A35 T_SDRAM JTAG Port

QM_XC7A35T_SDRAM Core Board User Manual V02
2.2.1 QM_XC7A35T_SDRAM 3.3V Power Supply
The core board’s 3.3V power supply is using high efficiency DC/DC chip MP2359 provided by MPS Inc. The
MP2359 supports wide voltage input range from 4.5V to 24V. In normal use case, 5V DC power supply is

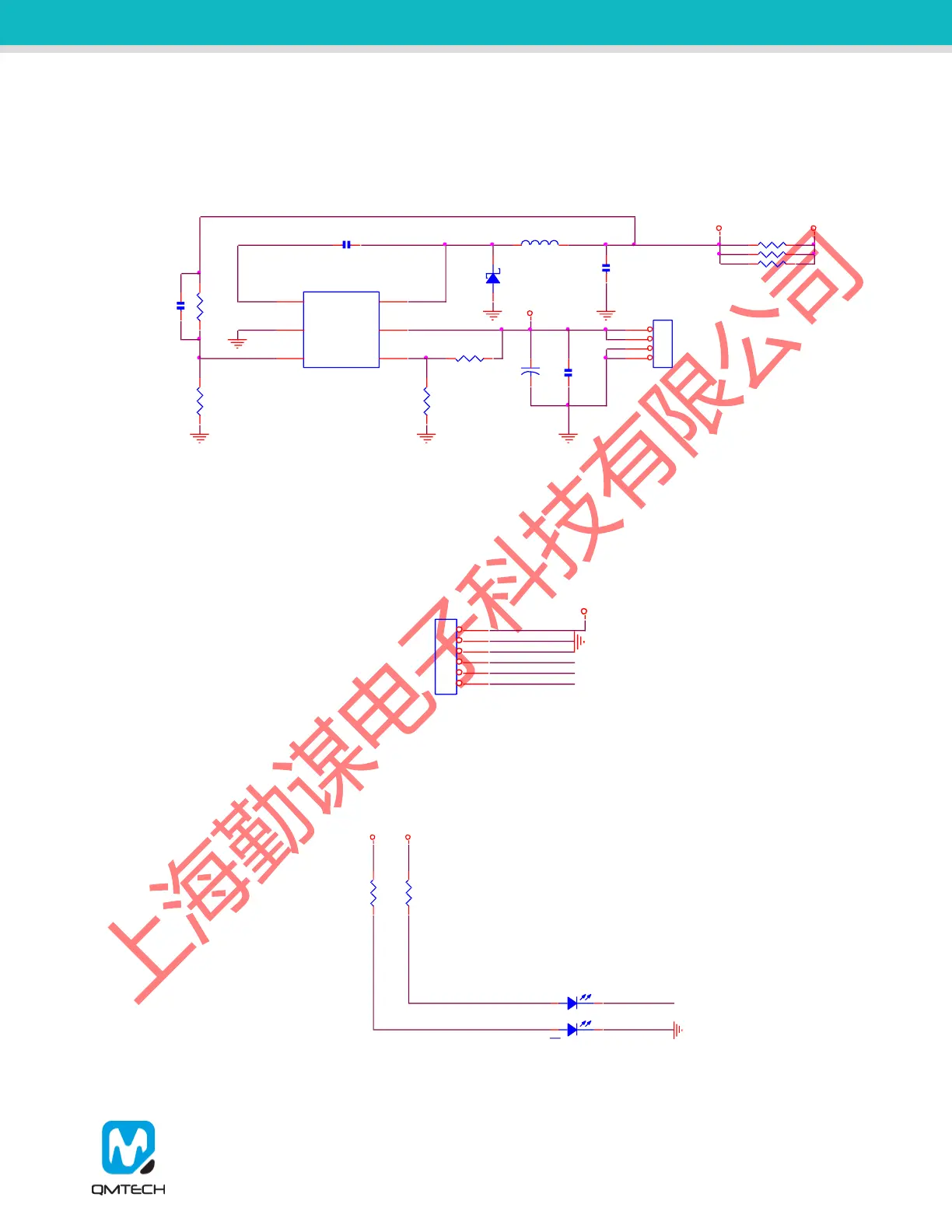

suggested to be applied on the board. Below image shows the MP2359 hardware design:
Figure 2-12. MP2359 Hardware Design
2.2.2 QM_XC7A35T_SDRAM JTAG Port
The on board JTAG port uses 6P 2.54mm pitch header which could be easily connected to Xilinx USB platform
cable. Below image shows the hardware design of the JTAG port:
Figure 2-13. JTAG Port
2.2.3 QM_XC7A35T_SDRAM User LED
Below image shows one user LED and 3.3V power supply indicator:
Figure 2-14. LEDs
