QMTECH XC7A35T SDRAM - QM_XC7 A35 T_SDRAM Extension IO

QM_XC7A35T_SDRAM Core Board User Manual V02
2.2.5 QM_XC7A35T_SDRAM Extension IO
The core board has two 64P 2.54mm pitch female headers which are used for extending user modules,
such as ADC/DAC module, audio/video module, ethernet module, etc.

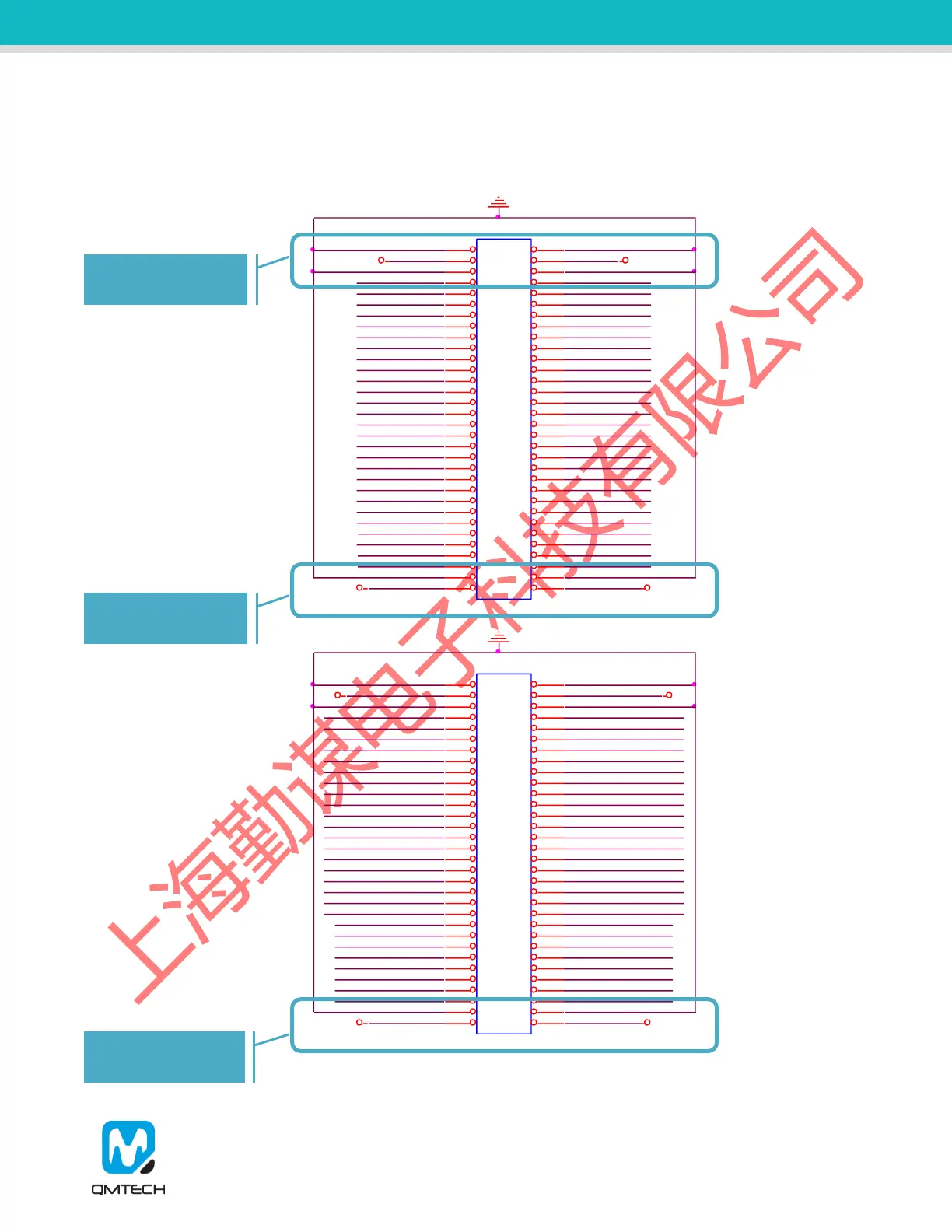

Figure 2-11. Extension IO
BANK35_K3
BANK35_J3
BANK35_K2
BANK35_H3
BANK35_A7
BANK35_B5
BANK35_B7
BANK35_B6
U8
HDR_32X2
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50
51 52
53 54
55 56
57 58
59 60
61 62
63 64
BANK35_H4BANK35_H5
VCCO_34_35
BANK35_F2
BANK35_A5
BANK35_L3
BANK35_K1
BANK35_H2
BANK35_G2
BANK35_F4
BANK35_D4
BANK35_B2
BANK35_C3
BANK35_D6
BANK35_B4
BANK35_F5
BANK35_E3
BANK35_E2
BANK35_C1
VCCO_34_35
BANK35_F3
BANK35_E1
BANK35_A3
BANK35_A4
BANK35_L2
BANK35_J1
BANK35_H1
BANK35_G1
BANK35_B1
BANK35_C4
BANK35_A2
BANK35_C2
BANK35_D5
BANK35_E5
BANK35_D3
BANK35_D1
BANK35_K5BANK35_E6
BANK35_C6BANK35_C7
BANK35_G4BANK35_G5
BANK35_J5 BANK35_J4
BANK34_L4 BANK34_M4
BANK34_N3 BANK34_N2
5V_IN 5V_IN
BANK14_M12
BANK14_N9
BANK14_P10 BANK14_P11
BANK14_T13
BANK14_R12
BANK14_R13
BANK14_T15BANK14_T14
BANK14_P14
BANK14_T12
BANK14_N14 BANK14_N16
BANK14_P16BANK14_P15
BANK14_R16BANK14_R15
BANK14_N13
BANK14_K12 BANK14_K13
5V_IN5V_IN
3V33V3
BANK34_M2 BANK34_M1
BANK34_N1 BANK34_P1
BANK34_P4
BANK34_M5 BANK34_N4
BANK34_P3
BANK34_R2 BANK34_R1
BANK34_R3 BANK34_T2
BANK34_T3BANK34_T4
BANK34_L5 BANK34_P5
BANK14_N6
U7
HDR_32X2
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50
51 52
53 54
55 56
57 58
59 60
61 62
63 64
BANK14_R5
BANK14_T5 BANK14_R6
BANK14_T7 BANK14_R7
BANK14_T8
BANK14_M6
BANK14_R8
BANK14_P6
BANK14_P9
BANK14_T9
BANK14_N12
BANK14_M16
BANK14_T10
BANK14_P13
BANK14_R11
BANK14_R10
BANK34/35 Voltage
Supply Pins.
Connected to 5V_IN
power header.
Connected to 5V_IN
power header.
