QNAP QSW-M408-4C User Manual

The QSW-M408 series supports DHCP client by default. When connected to a network, the switch will obtain an
IP address from a DHCP server automatically. You can then use Qfinder to locate the switch and access the web
user interface.

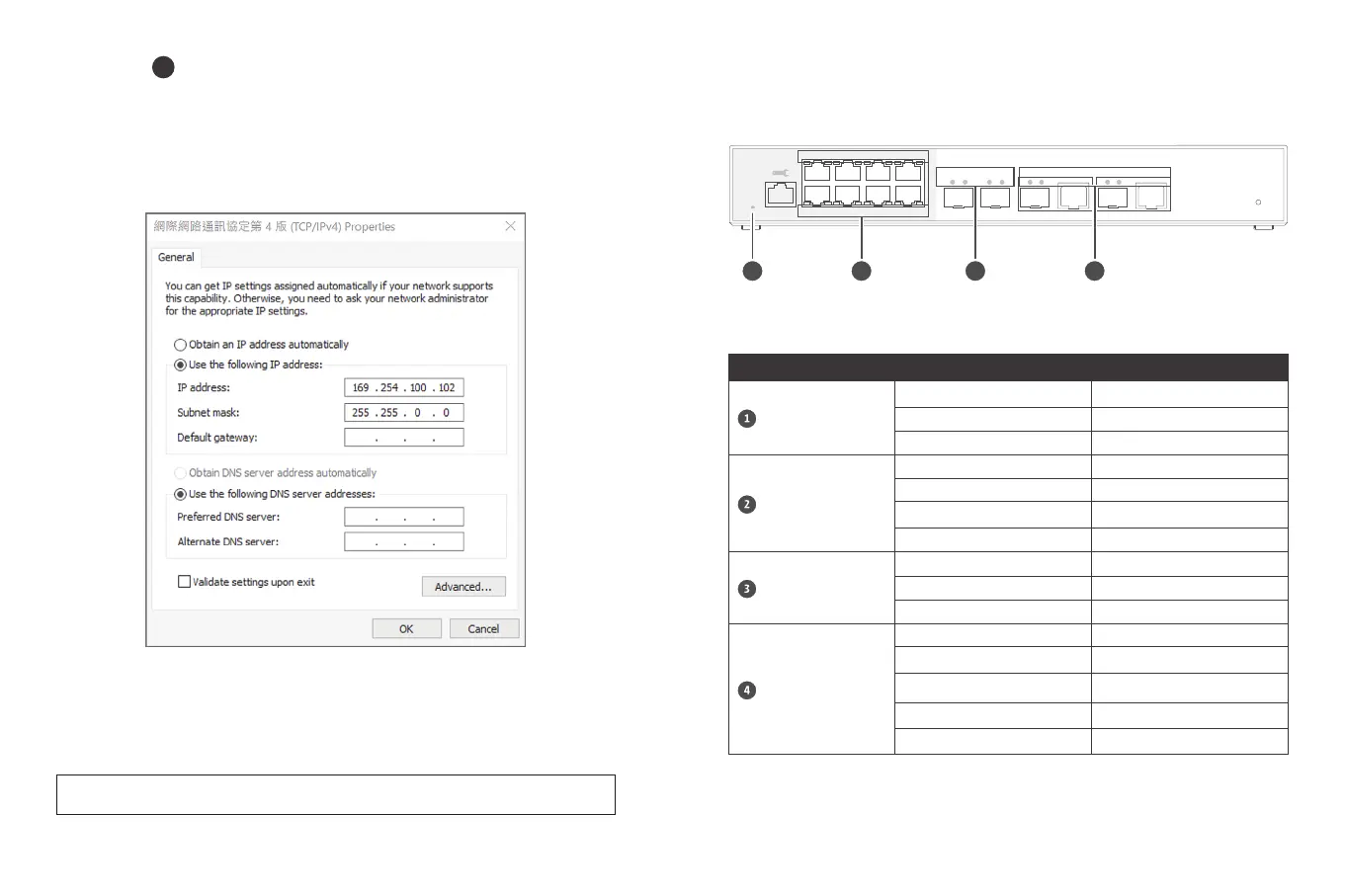

If your network is not connected to a DHCP server, you can access the web user interface by changing your
computer
’s IP address to 169.254.100.102.
The default IP address of the QSW-M408 is 169.254.100.101
Default username: admin
Default password: same as MAC Address
When logging in for the first time, you will be prompted to set a new username and password. QNAP
strongly recommends setting a new username and password for security purposes.
Note: After conguration, ensure that you change your computer’s IP address back to the original setting.
Accessing the Web User Interface
Web User Interface Login
1 3 5 7
11 12
SFP+
SFP+
SFP+
SFP+
2 4 6 8 9 10
1
3
2 4
LED Status Description
System Status
Flashing Device is booting.
Green Device is booted.
O Device is powered o.
RJ45
Green (Left) Link is operating at 1 Gbps.
Amber (Right) Link is operating at 100/10 Mbps.
Flashing Network is active.
O No link.
SFP+
Green Link is operating at 10/1 Gbps.
Flashing Network is active.
O No link.
SFP+/RJ45 Combo
Green (SFP+) Link is operating at 10/1 Gbps.
Green (RJ45) Link is operating at 10 Gbps.
Amber (RJ45)
Link is operating at
5Gbps/2.5Gbps/1Gbps/100Mbps.
Flashing Network is active.
O No link.
LED Behavior
EN

QNAP QSW-M408-4C Specifications

General

Switch type	Managed
Switch layer	L2
Web-based management	Yes
Certification	CE, FCC, VCCI, BSMI, CCC
Product color	White
Rack mounting	No
LED indicators	Activity, Link, Power, Speed, Status
Number of fans	1 fan(s)
Electromagnetic compatibility	CLASS A
Throughput	48 Gbit/s
Jumbo frames	9000
MAC address table	16000 entries
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Package weight	1570 g
Cables included	AC
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Port-based VLAN, Private VLAN
Cable types supported	Cat5, Cat5e, Cat6
Copper ethernet cabling technology	10BASE-T, 10GBASE-T, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Noise level	21 dB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	31.46 W
Number of power supply units	1
Console port	RJ-45
Combo SFP ports quantity	4
Installed SFP+ modules quantity	-
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
DHCP features	DHCP client
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	127 mm
Width	290 mm
Height	42.5 mm
Weight	1150 g
