47
8. Close the case cover and fasten the screws. Connect the power adaptor and cables to
the NAS.
9. To check that the network expansion is recognized by the NAS, power up the NAS and
login the web interface as an administrator. Go to “System Administration” > “Network”
> “TCP/IP” and check the total number of network interfaces.
6.2 TS-463U, TS-463U-RP, TVS-471U
1. Turn off the NAS. Disconnect the power adaptor, network cable(s), and any other
connectors or cables from the NAS.
2. Before installing the network expansion card, put on an antistatic wrist strap to
prevent electrostatic discharge. The crocodile clip should be connected to the ground.

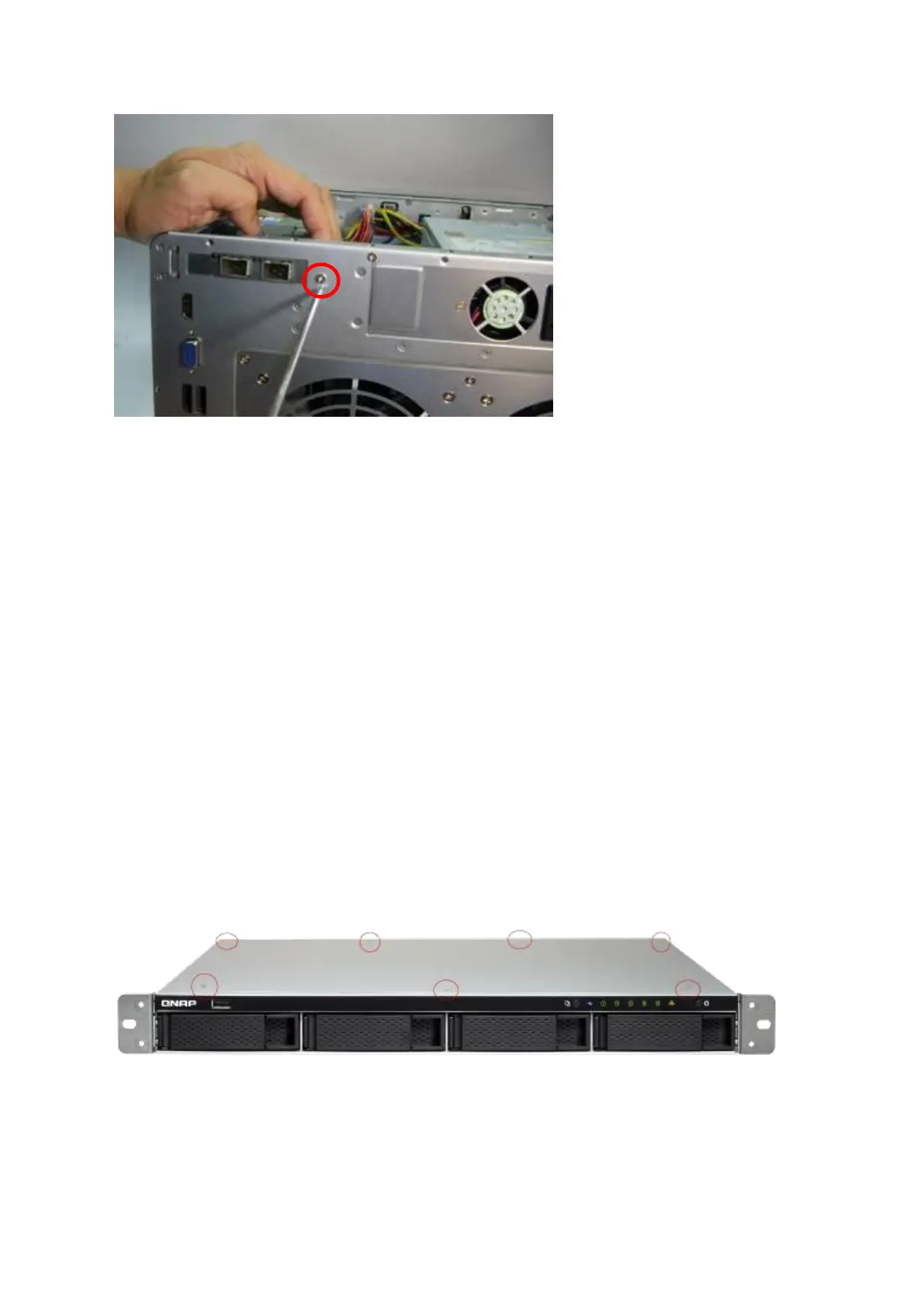

3. Loosen all the screws on the top of the NAS as shown in the illustration.
4. Remove the top cover in both hands.
To Next Page
