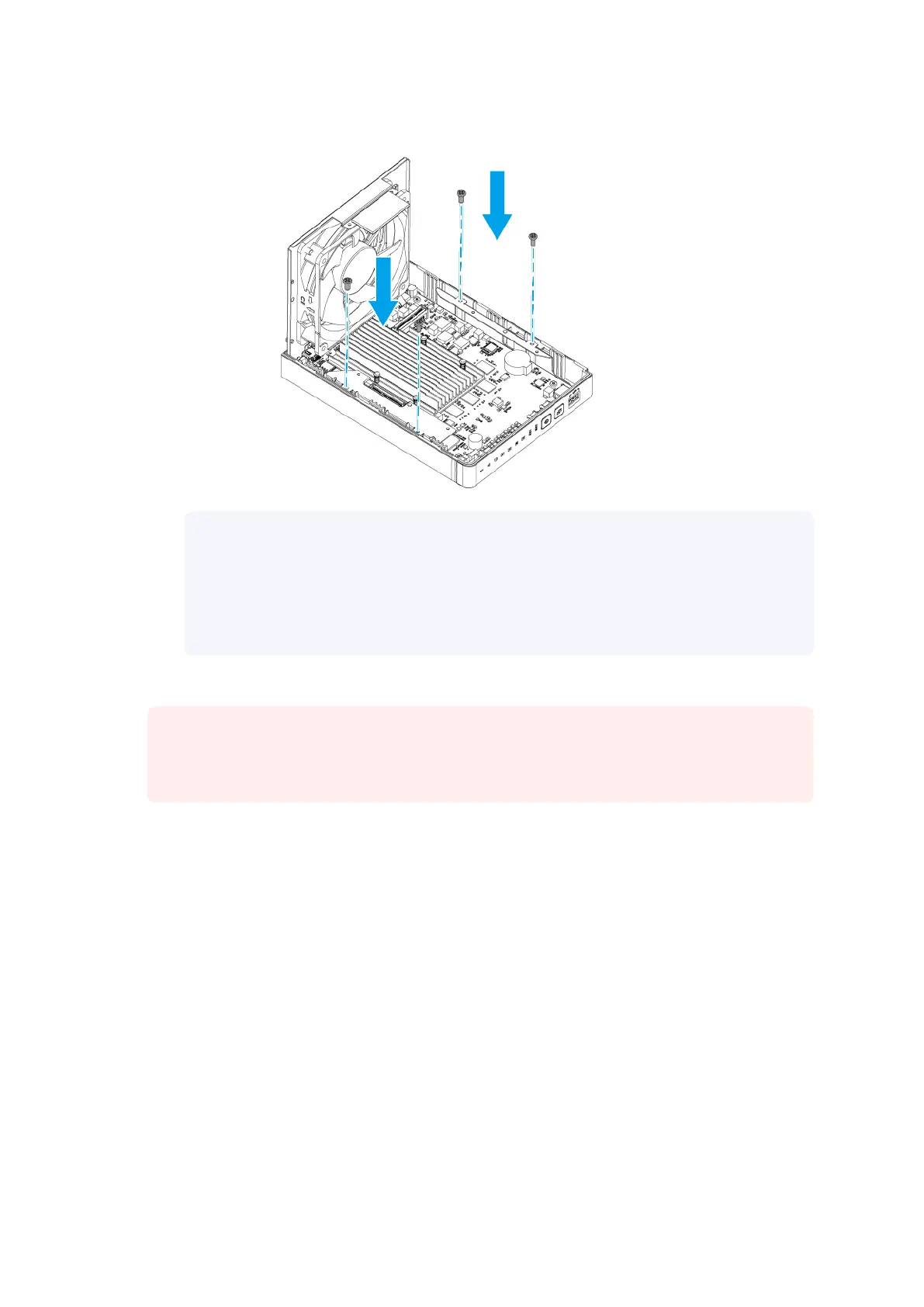

d. Attach the screws that secure the tray to the left panel.
Note
• The pan head self-tapping D3x6 screws require a Phillips #2 screwdriver.
• A torque of 5 kgf.cm (4.34 lbf.in) ± 0.5 kgf.cm (0.43 lbf.in) is recommended for
electric screwdrivers.
4. Attach the backplane to the drive cage.
Warning
Do not touch the components on the circuit board or allow the components to come into
direct contact with metallic objects. Doing so may cause damage.
a. Carefully insert the connector end of the backplane into the hole at the back of the drive
cage.
| NAS Repair Manual
Category A NAS Models 29
