Note
• The at head M2.5x4 screws require a Philips #1 screwdriver.
• A torque of 3 kgf.cm (2.60 lbf.in) ± 0.5 kgf.cm (0.43 lbf.in) is recommended for
electric screwdrivers.

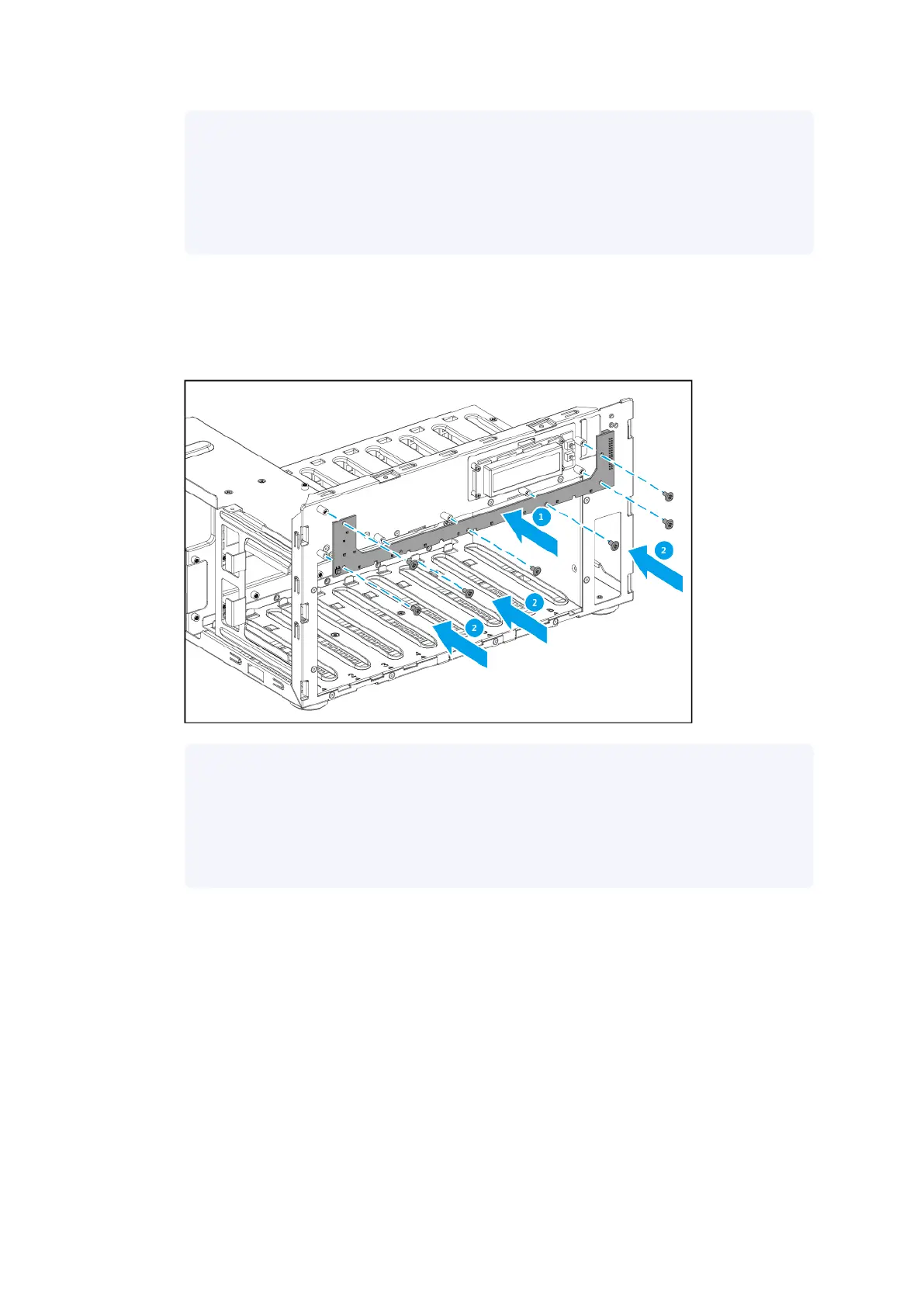

3. Attach the LED circuit board to the chassis.
a. Align the holes on the LED circuit board to screw holes on the chassis.
b. Attach the screws.
Note
• The at head M3x5 screws require a Phillips #2 screwdriver.
• A torque of 7 kgf.cm (6.08 lbf.in) ± 0.5 kgf.cm (0.43 lbf.in) is recommended for
electric screwdrivers.
4. Attach the front panel to the chassis.
a. Align the latches of front panel to the holes on the chassis.
| NAS Repair Manual
Category C NAS Models 79
