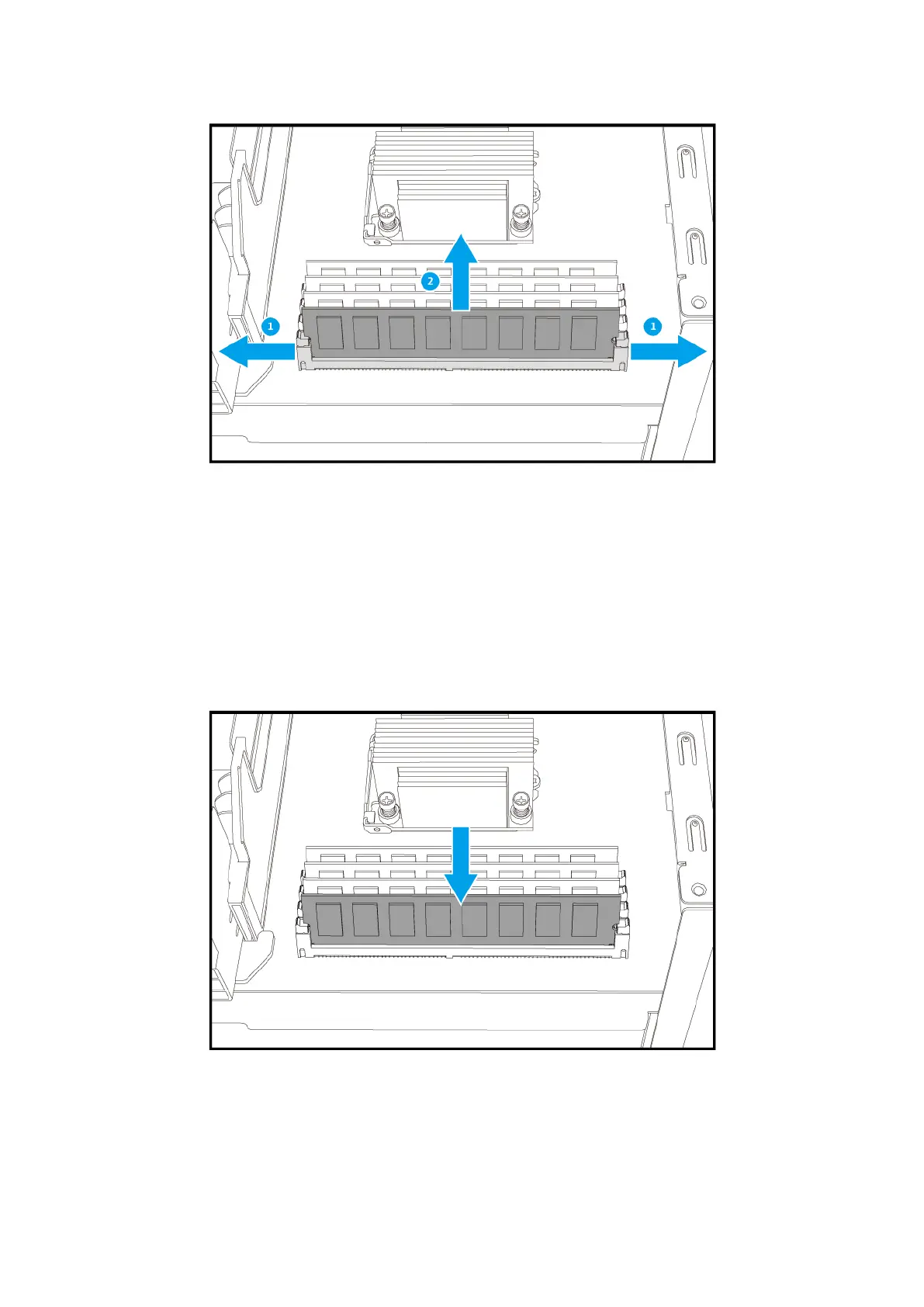

7. Install new RAM:
i. Grip the new RAM on the edges to avoid touching contacts or circuitry on the
module.
ii. Line up the notch on the RAM to the break in the slot. Ensure that first RAM
module is inserted into slot 1 (see below for slot positioning).
iii. Set the stick into the slot and apply equal pressure onto both ends of the stick
until the clamps on the side click and fully lock the RAM in.
