QNAP TS-231 User Manual

106
1. Turn off the NAS. Disconnect power cord(s), network cable(s), and any other cables
attached to the device.
2. Before opening the NAS, wear an antistatic wrist strap and connect the crocodile
clamp to ground to prevent electrostatic discharge from damaging equipment.

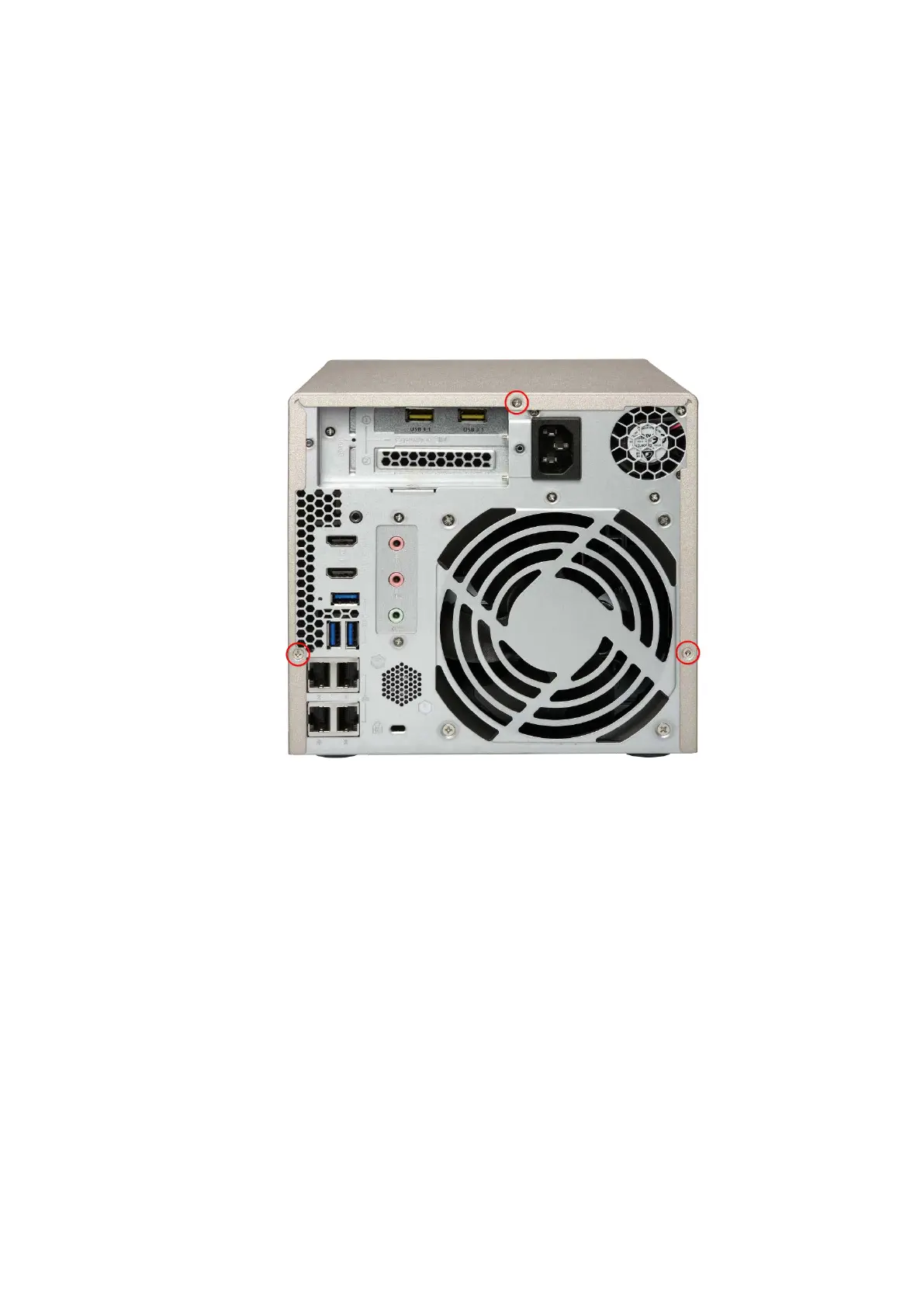

3. Loosen the screws on the back of the NAS that are connecting the case cover to the
case.
4. Remove case cover from case.

QNAP TS-231 Specifications

General

Flash Memory	512MB
Drive Bays	2
LED Indicators	Status, LAN, USB, HDD1, HDD2
Form Factor	Tower
Power Supply	External Power Adapter, 60W, 100-240V
CPU	Annapurna Labs Alpine AL-212 1.7 GHz dual-core
RAM	512MB DDR3
Maximum Internal Raw Capacity	16TB (2 x 8TB HDD)
Network Interface	1 x Gigabit RJ45 Ethernet port
Buttons	Power, Reset
Weight	1.28 kg
Fan	1 x 70 mm, 12V DC
Operating System	QTS (Embedded Linux)
Power Consumption (In Operation)	15.6W
USB Ports	2 x USB 3.0
