7.1.2. TS-1635

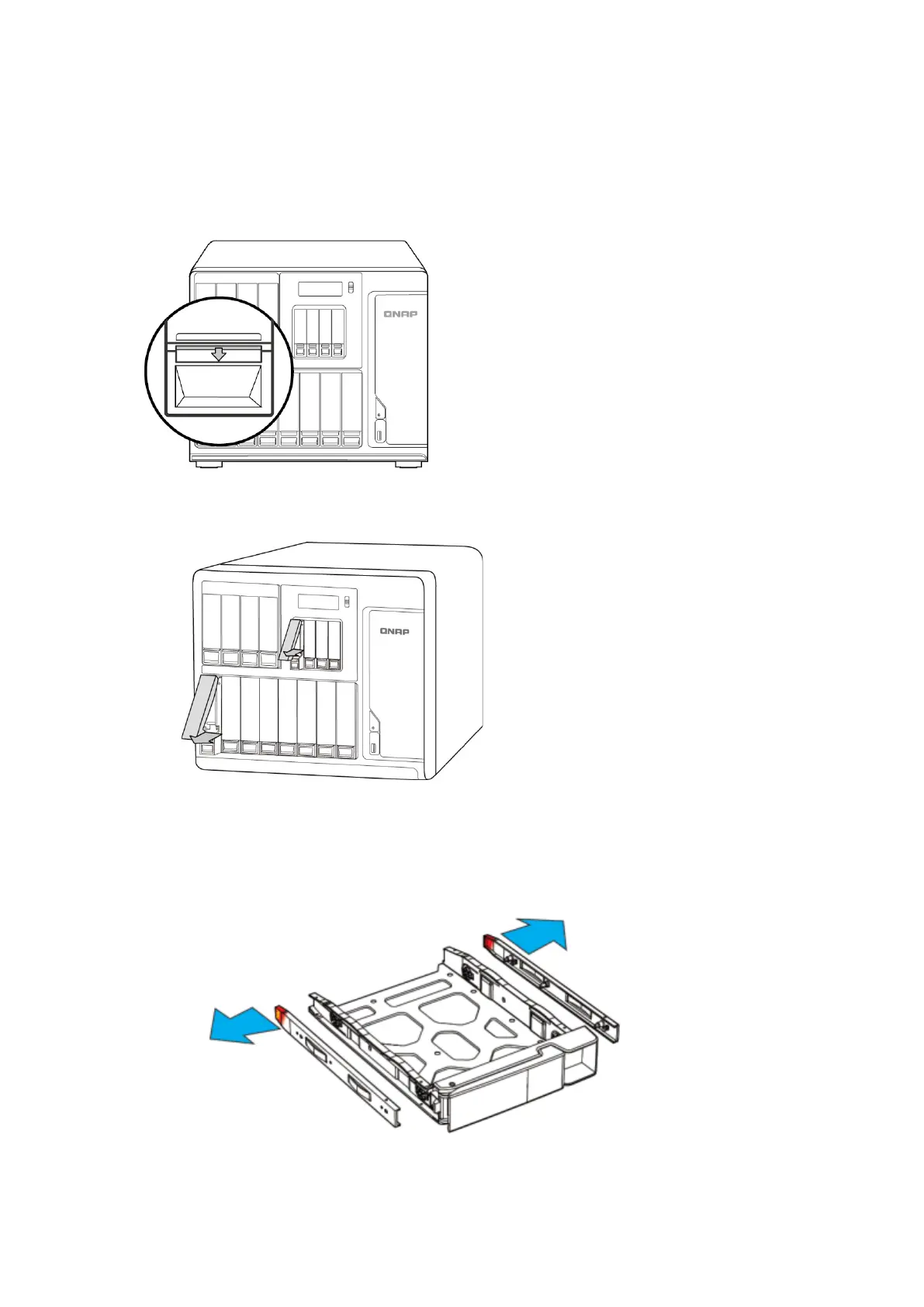

1. Remove hard drive tray from NAS:
i. Push the blue lock switch on the tray down to the unlock position.
ii. Push the button below the blue switch to release the lever.
iii. Pull out tray using lever.
2. Install HDD/SDD onto tray.
a. 3.5” HDD:
i. Remove the fastening panels from the sides of the drive tray.

QNAP TS-231 Specifications

General

Flash Memory	512MB
Drive Bays	2
LED Indicators	Status, LAN, USB, HDD1, HDD2
Form Factor	Tower
Power Supply	External Power Adapter, 60W, 100-240V
CPU	Annapurna Labs Alpine AL-212 1.7 GHz dual-core
RAM	512MB DDR3
Maximum Internal Raw Capacity	16TB (2 x 8TB HDD)
Network Interface	1 x Gigabit RJ45 Ethernet port
Buttons	Power, Reset
Weight	1.28 kg
Fan	1 x 70 mm, 12V DC
Operating System	QTS (Embedded Linux)
Power Consumption (In Operation)	15.6W
USB Ports	2 x USB 3.0
