QNAP TS-231 User Manual

85

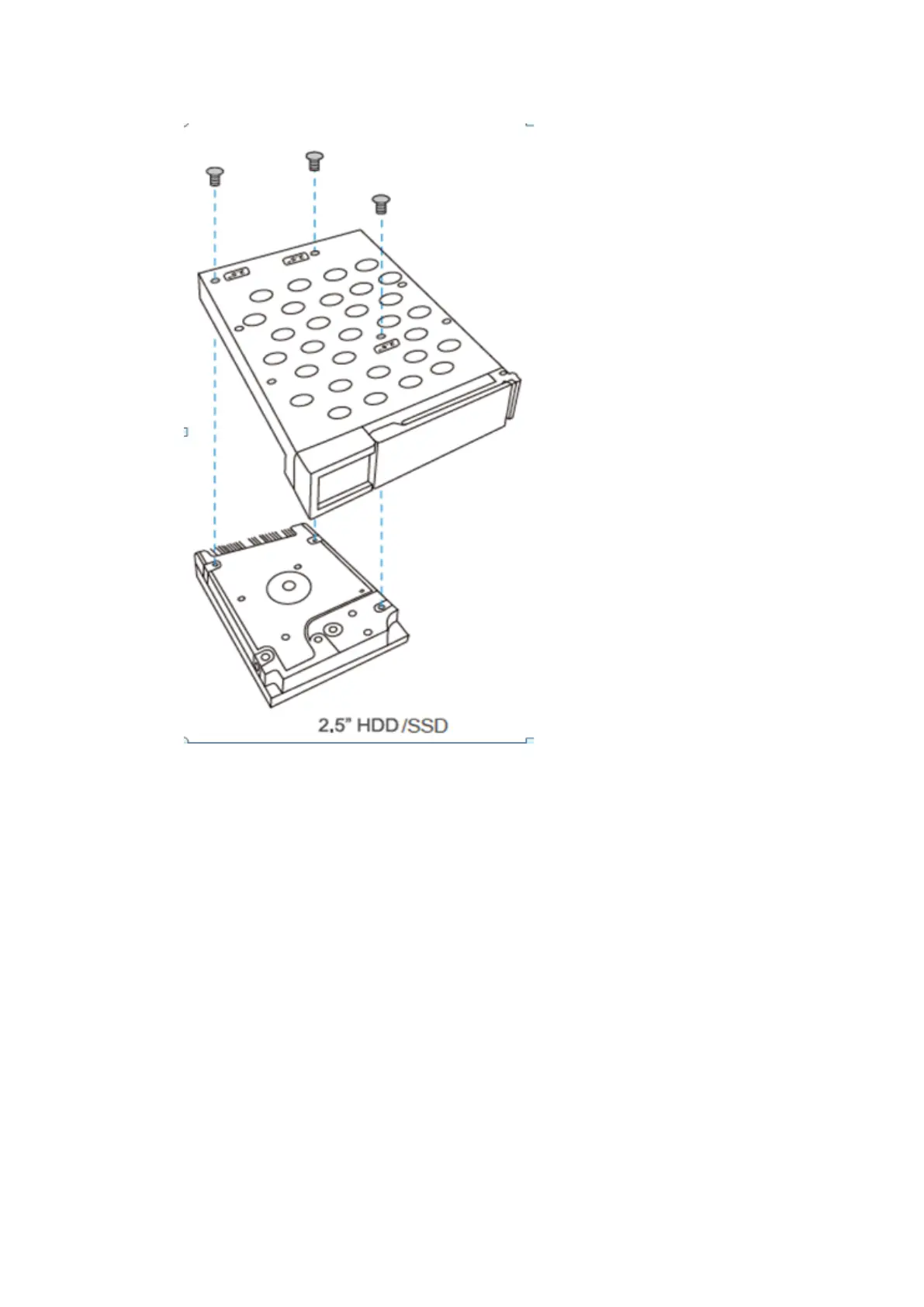

3. Load tray back into drive bay.
i. Insert the drive tray into the NAS.Verify that the tray is correctly oriented (top of HDD
facing right) and fully pushed in.
ii. Close the latch, and lock the switch.
7.1.3. TS-453Bmini, TS-453Mini
1. Remove the case cover. Open and remove the hard drive tray.

QNAP TS-231 Specifications

General

Flash Memory	512MB
Drive Bays	2
LED Indicators	Status, LAN, USB, HDD1, HDD2
Form Factor	Tower
Power Supply	External Power Adapter, 60W, 100-240V
CPU	Annapurna Labs Alpine AL-212 1.7 GHz dual-core
RAM	512MB DDR3
Maximum Internal Raw Capacity	16TB (2 x 8TB HDD)
Network Interface	1 x Gigabit RJ45 Ethernet port
Buttons	Power, Reset
Weight	1.28 kg
Fan	1 x 70 mm, 12V DC
Operating System	QTS (Embedded Linux)
Power Consumption (In Operation)	15.6W
USB Ports	2 x USB 3.0
