QNAP TS-231 User Manual

86

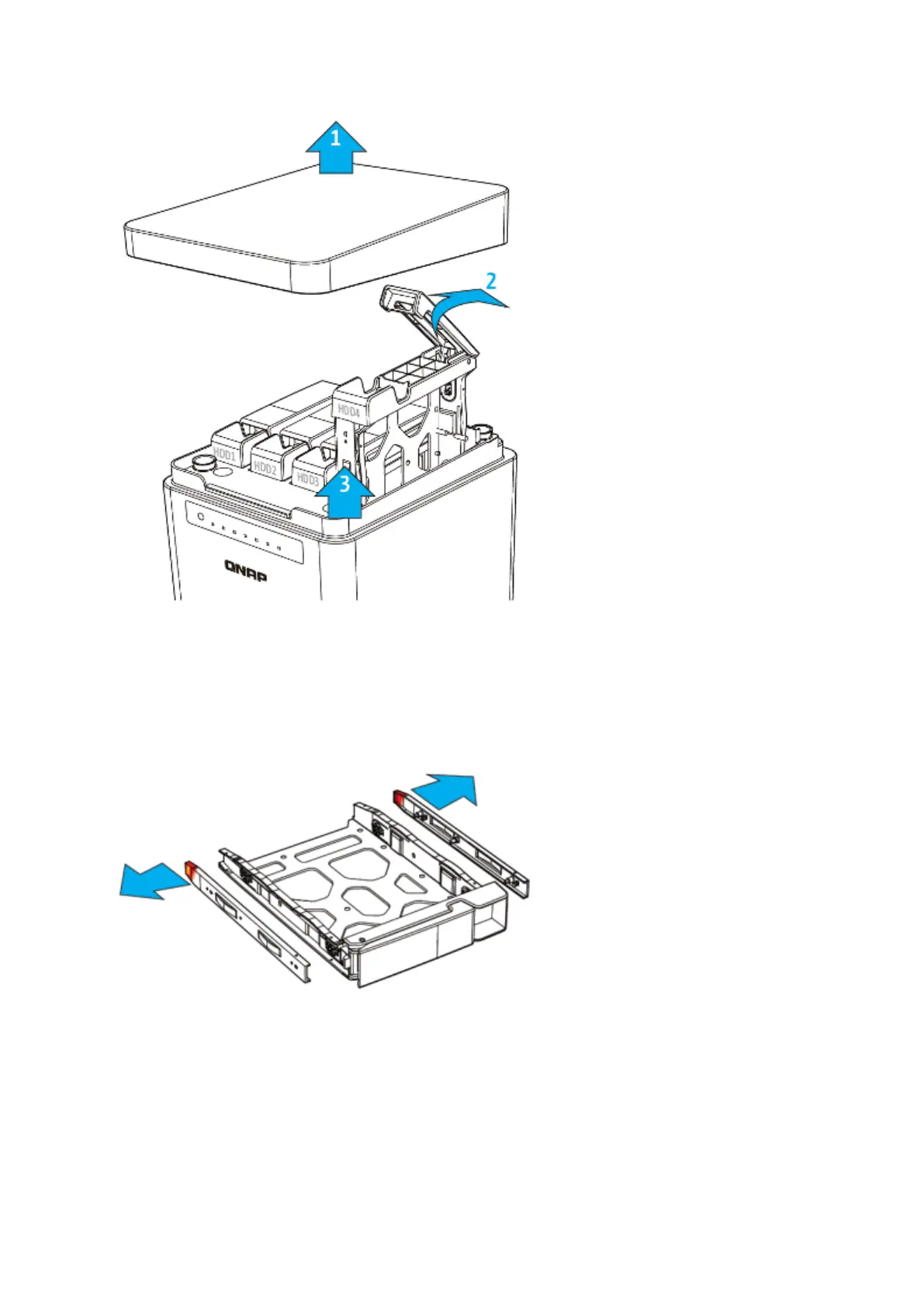

2. Install the HDD:
a. For 3.5” HDDs, remove both brackets (pinch the end marked “pull” to pull and
separate the bracket) from the tray. Place the hard drive on the tray and clip-in
both brackets.

QNAP TS-231 Specifications

General

Flash Memory	512MB
Drive Bays	2
LED Indicators	Status, LAN, USB, HDD1, HDD2
Form Factor	Tower
Power Supply	External Power Adapter, 60W, 100-240V
CPU	Annapurna Labs Alpine AL-212 1.7 GHz dual-core
RAM	512MB DDR3
Maximum Internal Raw Capacity	16TB (2 x 8TB HDD)
Network Interface	1 x Gigabit RJ45 Ethernet port
Buttons	Power, Reset
Weight	1.28 kg
Fan	1 x 70 mm, 12V DC
Operating System	QTS (Embedded Linux)
Power Consumption (In Operation)	15.6W
USB Ports	2 x USB 3.0
