a. Position the NAS on its left side.

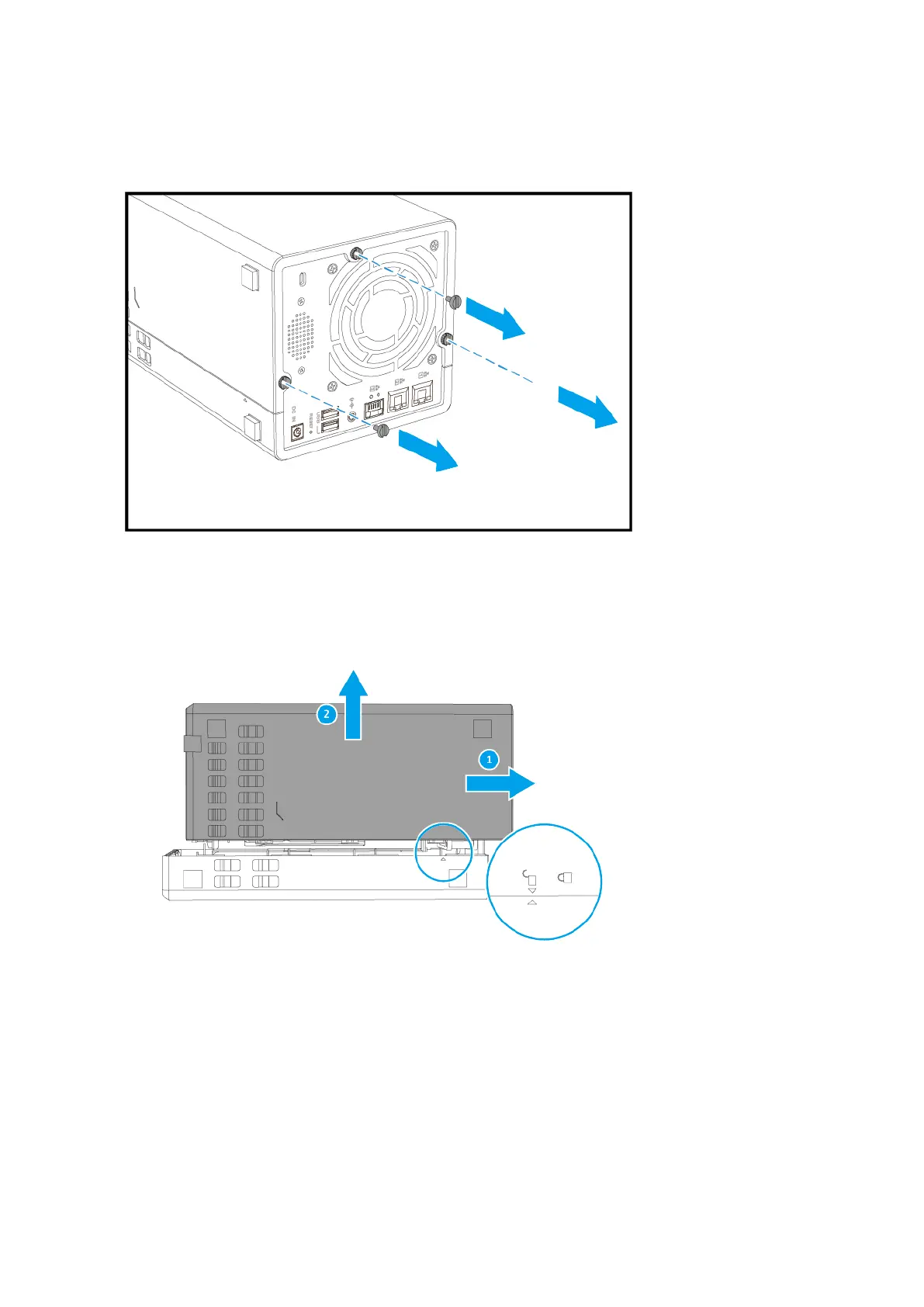

b. Remove the screws that secure the case cover to the chassis.
c. Slide the cover to the right to detach it from the chassis.
d. Lift the cover off the NAS.
3. Remove a drive tray caddy.
a. Squeeze the clips.
b. Pull out the caddy.
TS-332X User Guide
Installation and Configuration 18
