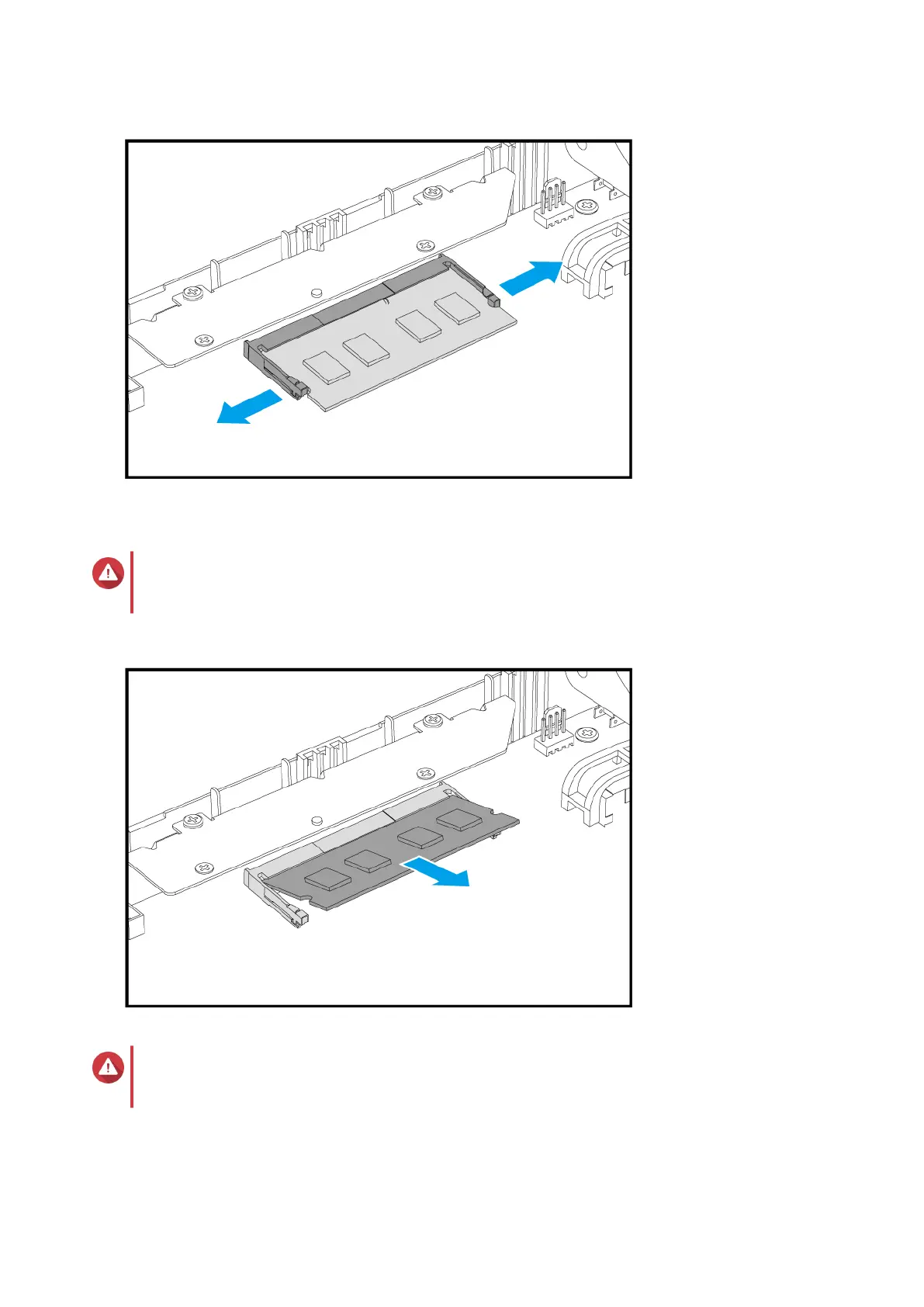

b. Verify that the module has tilted upward and is completely released from the slot.
Warning
Attempting to remove a module that is not completely released may damage the module and
the motherboard.
c. Hold the module by the edges and then carefully slide it out of the slot.
Warning
Do not touch the components, particularly the metal connectors.
Do not bend the module.
11. Install a new module.
a. Align the notch with the ridge in the slot.
TS-431X2 User Guide
Installation and Configuration 18
