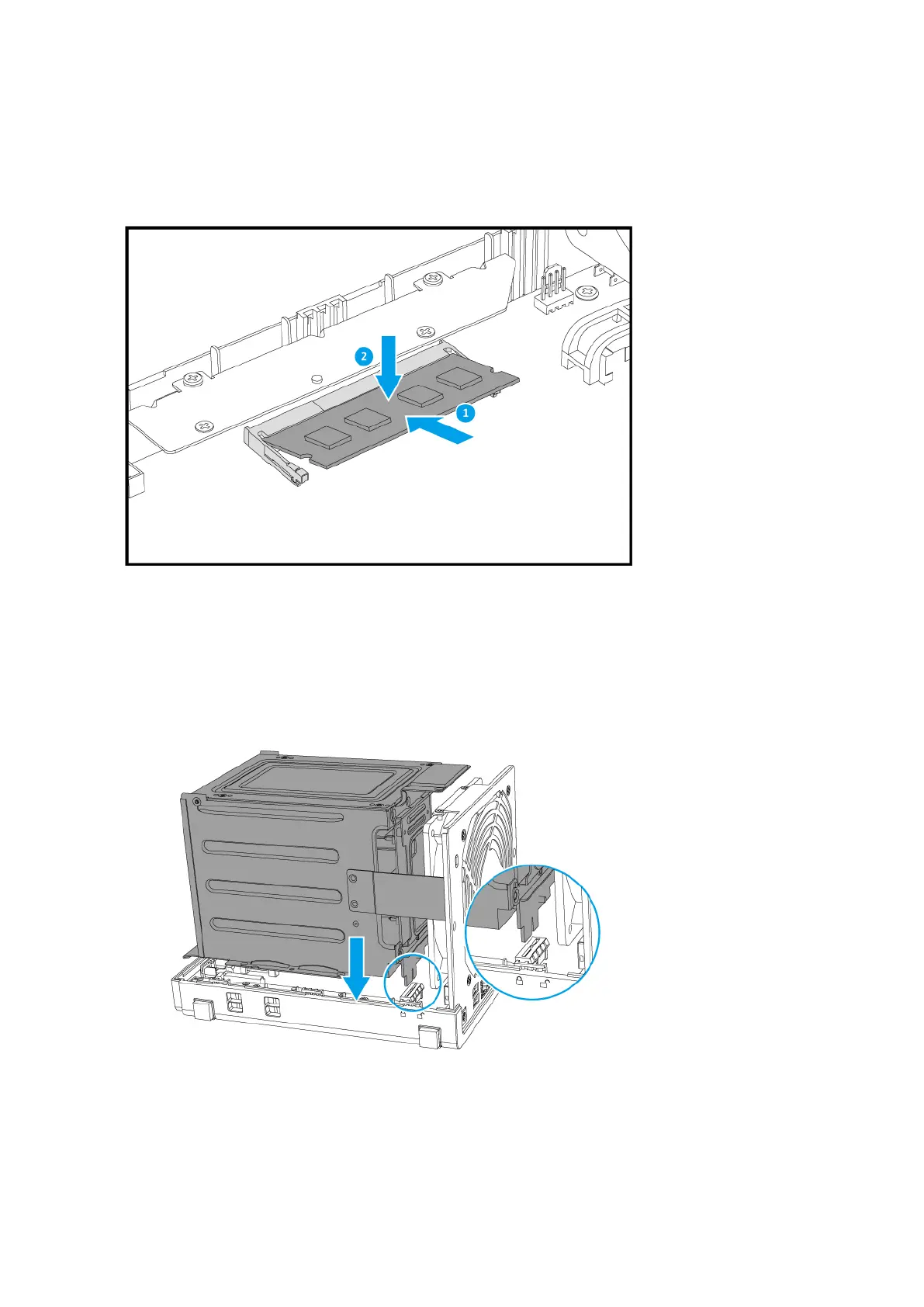

b. Insert the module into the slot.
c. Verify that the metal connectors are completely inserted into the slot.
d. Carefully press down on the module until the retention clips lock the module into place.
12. Place the drive tray chassis onto the NAS.
a. Line up the SATA connector on the drive tray chassis to the SATA socket on the motherboard.
b. Carefully insert the SATA connector into the SATA socket.
13. Attach the 6 screws that connect the drive tray chassis to the NAS.
TS-431X2 User Guide
Installation and Configuration 19
