QNAP TS-453mini User Manual

41
12. To check that the memory module is recognized by the NAS, power up the NAS and
login the web interface as an administrator. Go to “System Status” > “System
Information” and check the total memory in “Hardware Information”.
5.5 IS-453S

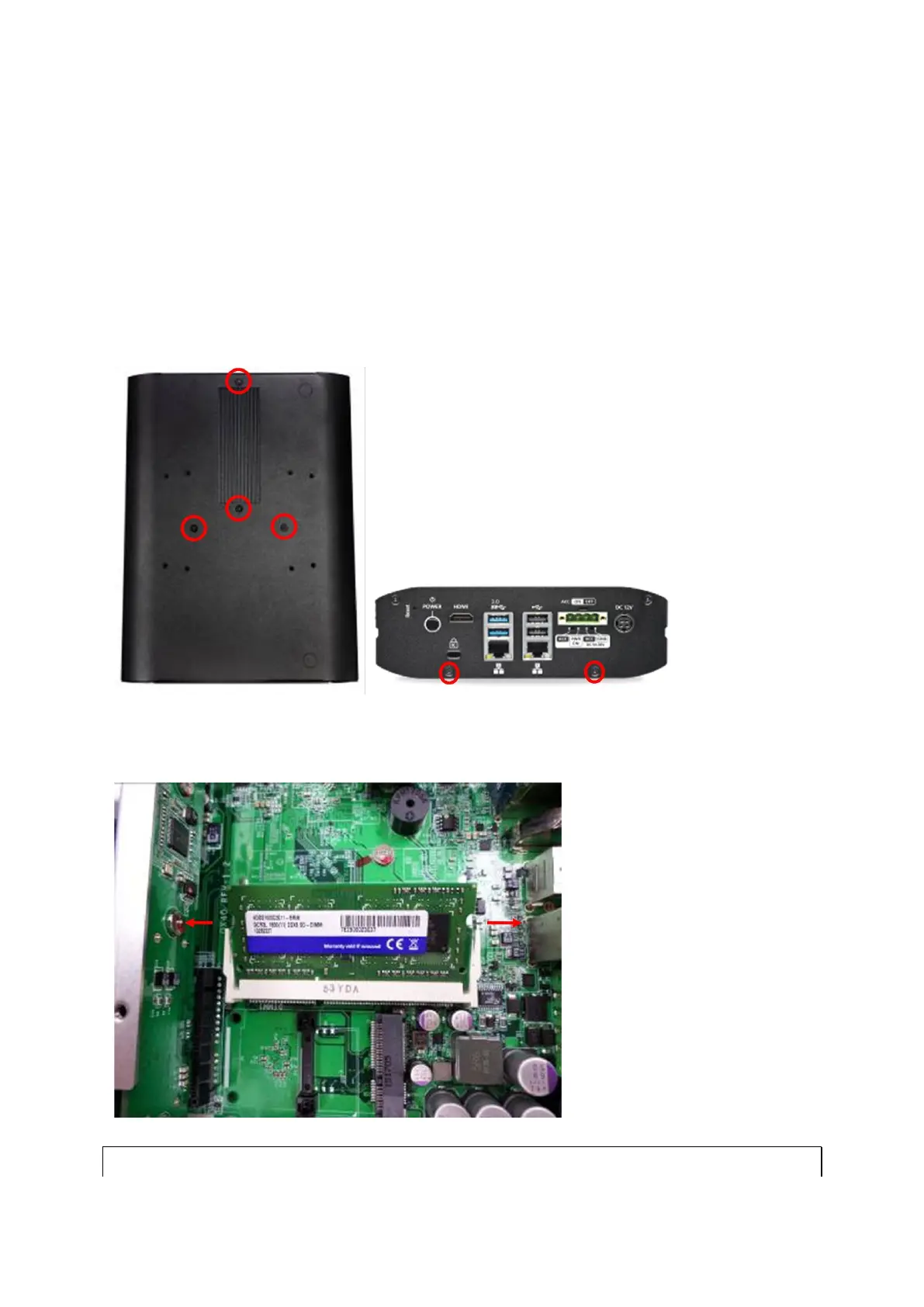

1. Loosen the four screws on the bottom and the two screws on the rear panel of the NAS
with a Phillips screwdriver and lift the bottom off.
2. Pull the retention clips on each side so that the module tilts up for easy removal.
Remove installed memory modules.
Note: Always ensure that a memory module is installed in the primary slot that is

QNAP TS-453mini Specifications

General

RAID levels	0, 1, 5, 6, 10, JBOD
RAID support	Yes
Storage drive size	2.5/3.5 \
Storage drive capacity	0 GB
Storage drive interface	Serial ATA III
Storage drives installed	No
Installed storage drive type	-
Supported storage drive types	HDD & SSD
Total installed storage capacity	0 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	0
Number of storage drives supported	4
Processor family	Intel® Celeron®
Processor frequency	2 GHz
Flash memory	512 MB
Memory slots	2
Internal memory	2 GB
Internal memory type	DDR3L
Maximum RAM supported	8 GB
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Cooling type	Active
Product color	Black
Number of fans	1 fan(s)
Type	NAS
Operating system version	4.1.2
Operating system installed	QNAP Turbo System
AC input voltage	100-240 V
Power supply location	Built-in
Power consumption (sleep)	1.04 W
Power consumption (typical)	30.23 W
Power supply unit (PSU) capacity	90 W
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	5 - 95 %
Cables included	AC, LAN (RJ-45)

Weight and Dimensions

Depth	200 mm
Width	151 mm
Height	210 mm
Weight	2000 g
Package weight	3400 g
