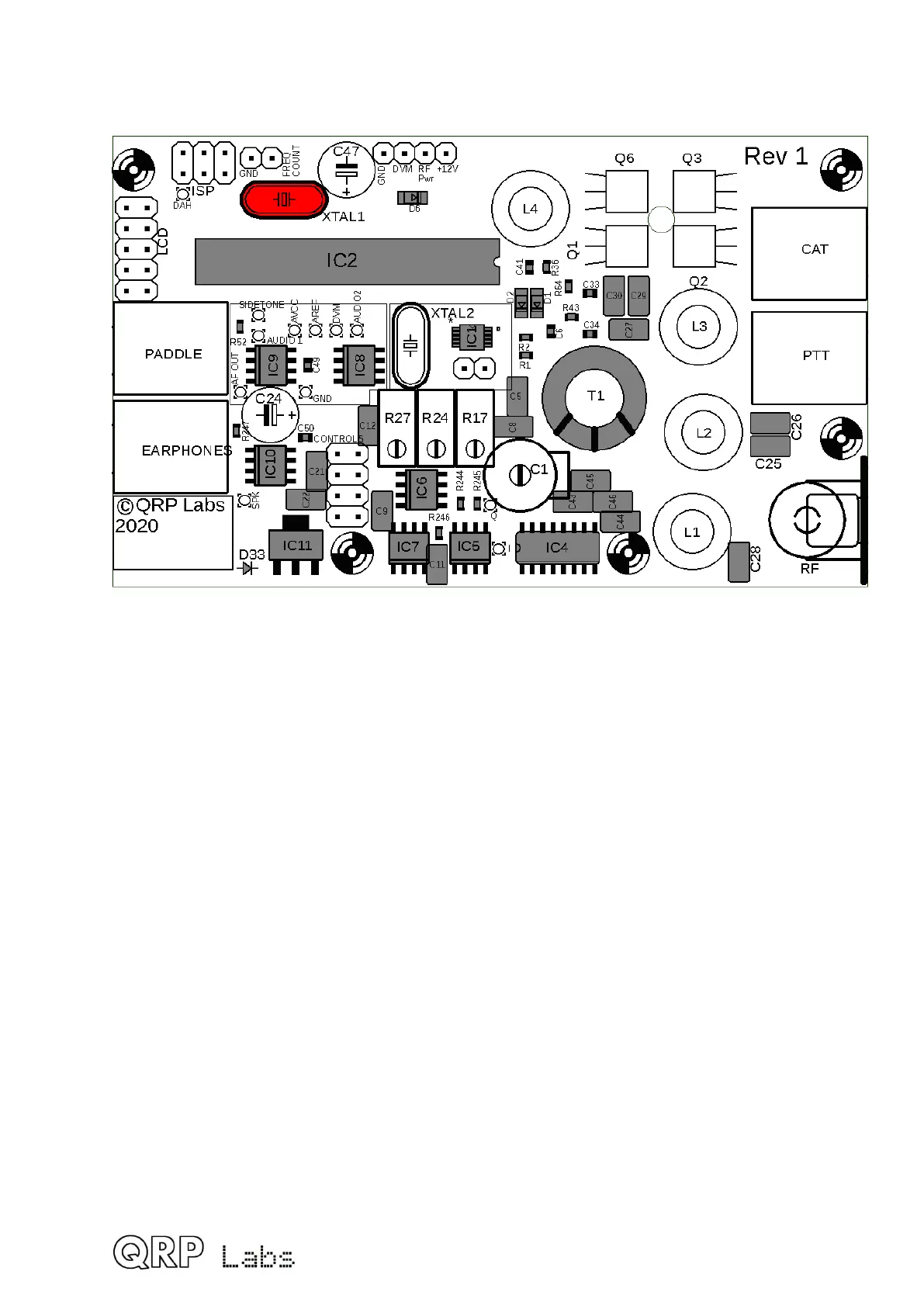

QRP Labs QCX-mini - Install 20 Mhz Crystal XTAL1

Default Icon
117 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
3.14 Install 27MHz crystal XTAL2 or TCXO option
If you are going to install the 27MHz crystal, do so now. The engraving on this crystal is
“27.000”.
If you are going to install the 25MHz TCXO, skip this diagram and refer to the following
instructions.
If installing the TCXO module: this is installed in the same position as the 27MHz crystal
would have been. There is a rectangle on the PCB indicating the position of the TCXO:
 39
