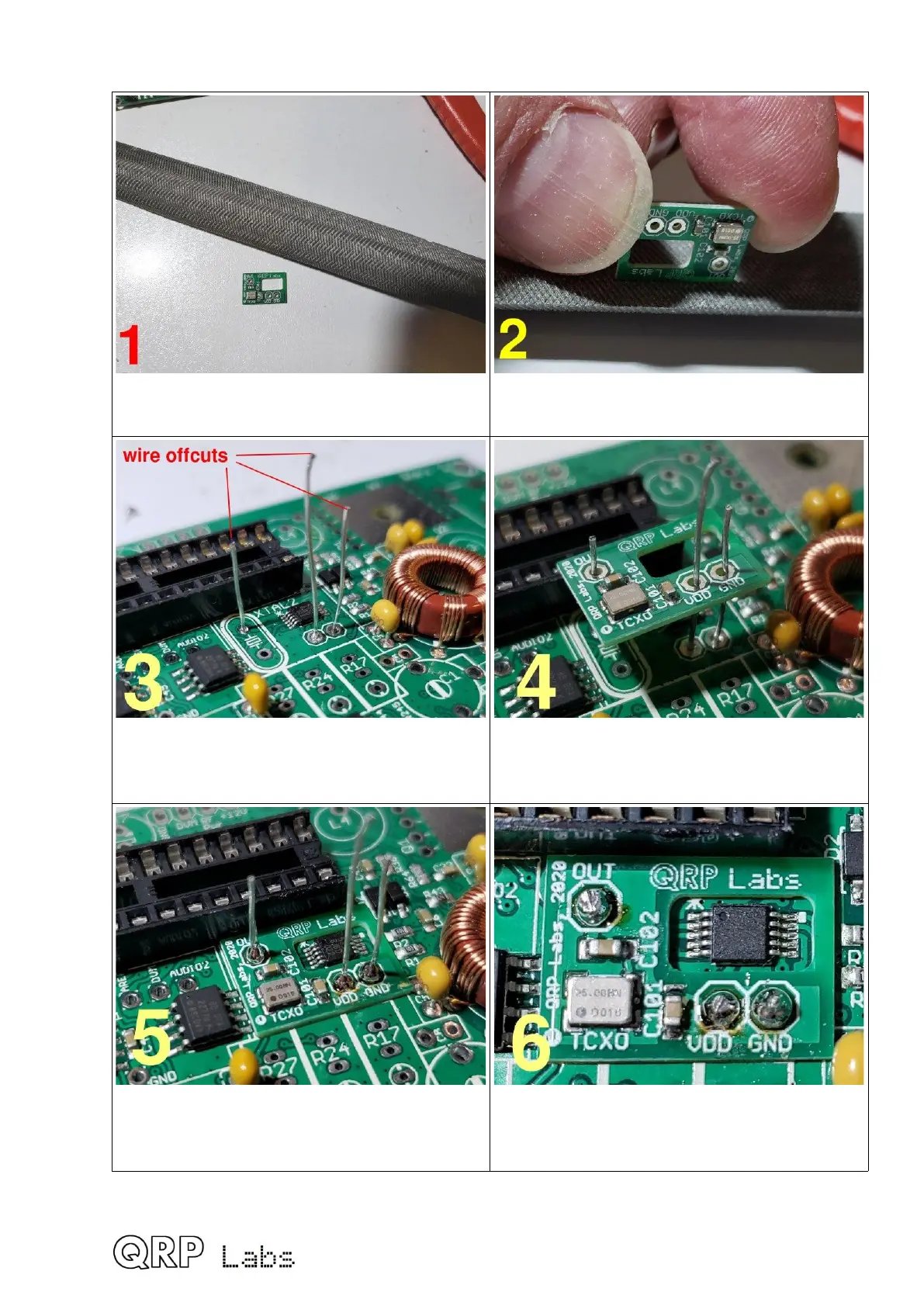

Install the TCXO module as follows:
Find a suitable file. File the rough edges of the TCXO module
flat
Solder wire off-cuts into the holes shown,
and cut any excess wire on the underside of
the board.
Thread the TCXO module carefully onto the
wires. Make sure module is pushed as far
towards the 28-pin IC socket as possible.
Solder the wires to the pads, holding the
TCXO module firmly tight against the 28-pin
IC socket.
Cut off excess wire; be careful because the
TCXO board is single sided without through-
hole plating, so the pads are a bit delicate.
41
