– Audio Connections
The AXP2O provides balanced audio outputs to external analog
audio equipment. Refer to the following diagrams for connecting
the outputs of the AXP2O to audio devices.
+
-
GND
Pin 1
Pin 3
Pin 2
1
1 2
3
XLR-M
2-Wire Cable + Shield
Or 3-Wire Cable
TRS Plug
+
-
GND
Sleeve
Tip
Ring
2-Wire Cable + Shield
Or 3-Wire Cable

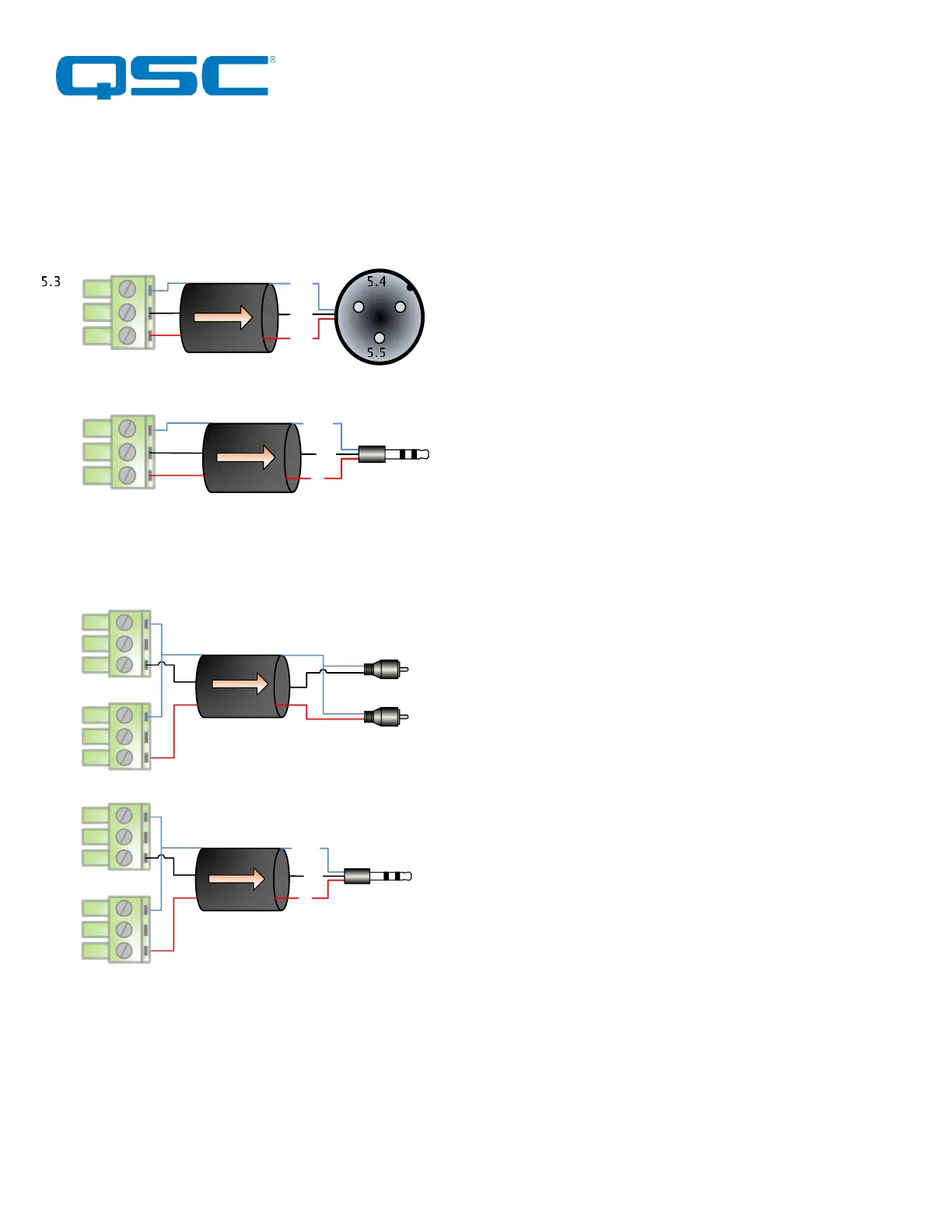

Figure 19 - AXP2O to Balanced Input Wiring Guide
TRS Plug
+
-
GND
Sleeve
Tip
Ring
Output 2
Output 1
+
-
GND
2-Wire Cable
+ Shield
2-Wire Cable
+ Shield
RCA (R)
+
-
GND
Tip
RCA (L)
Tip
Output 2
Output 1
+
-
GND
Sleeve
Sleeve
Figure 20 - AXP2O to Unbalanced Input Wiring Guide
– 3
rd
Party Control
The RS-232 port on the AXP2O break-out box is intended for
connectivity to 3
rd
party control systems for extended integration
of Axiom into professional AV applications.
– RS-232 Interface
The RS-232 interface on the AXP2O is a pass through interface to
the Axiom port. Actual serial port settings can be found on select
Axiom products that support R2-232 control integration features.
