9
1. Mono analog input – accepts microphone or line level signals (with phantom power)
2. Stereo analog inputs – accepts line level signals
3. Analog audio inputs – connect to D-Cinema server or film processor with analog outputs
Top connector: Main Analog Input: channels 1 through 8
4. Digital audio inputs – connect to D-Cinema server or film processor with digital outputs
Top connector: AES3 pairs 1 through 4 (digital audio channels 1 through 8)
Bottom connector: AES3 pair 8 (digital audio channels 15 and 16 for H.I./V.I.)
5. S/PDIF input – multi-channel digital input for non-sync/alternative content
6. USB Type B port for DCP configuration and management via direct connection
7. 10/100 Mbps Ethernet port – for QSControl™, 3rd party, or SNMP management and remote access
8. SD memory card – device configuration storage supports quick unit replacement
9. Serial communications port – 3
rd
party control/automation via RS232
10. IEC inlet – AC mains power connector with cord lock
11. DataPort interface for QSC amplifiers – supports up to eight single port amplifiers
12. Hearing impaired and visually impaired special mix outputs
13. CMOS compatible logic outputs – for use as automation triggers, alerts, system status
14. Automation inputs – digitally sampled analog control inputs (control presets, levels etc.)
15. Relay outputs – mechanically decoupled control outputs (curtain, lighting control etc.)
16. Audio monitor output – tap from front panel monitor speaker (post DSP, pre amplifier)

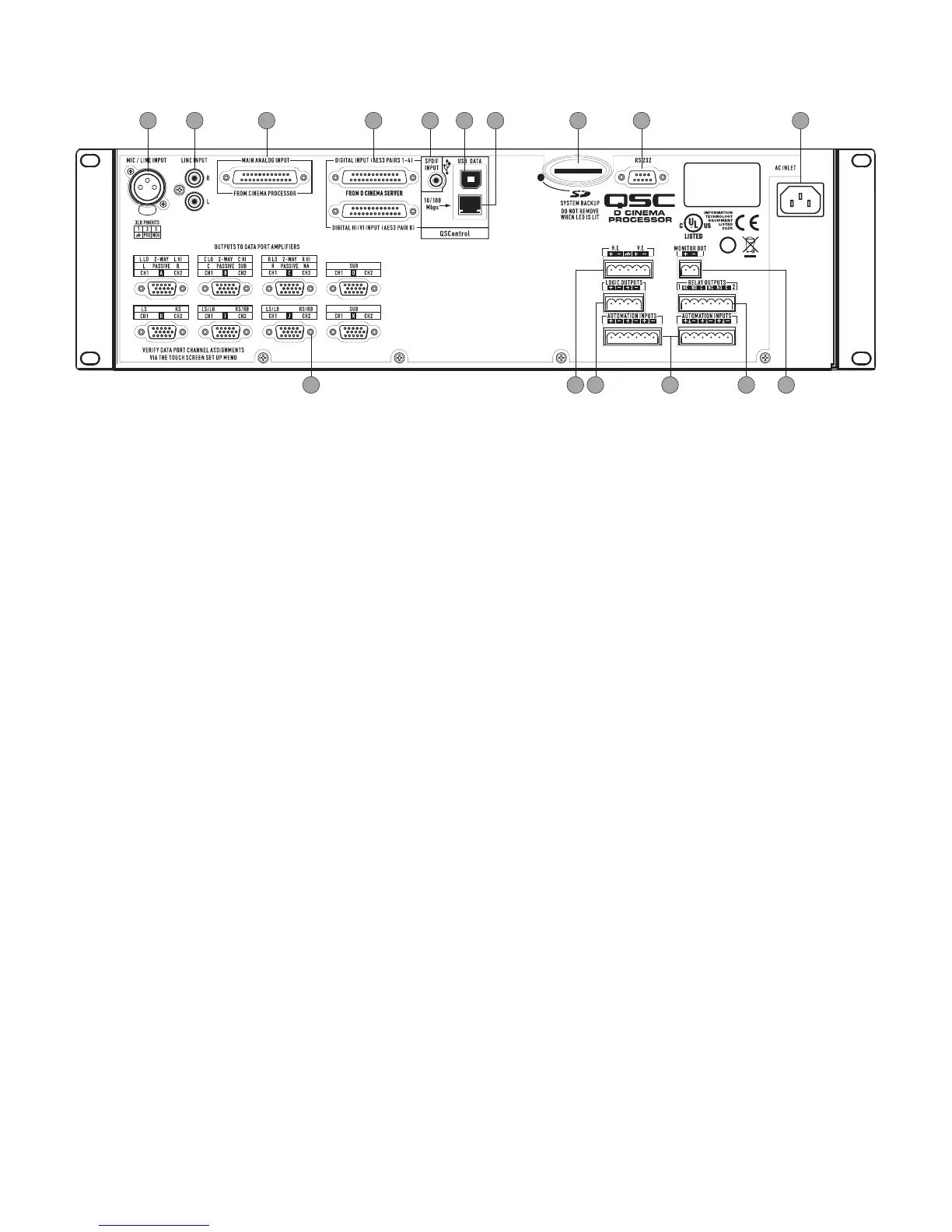

DCP 100 Rear Panel Features
1 2 8 9 105 6 7
16151412 1311
3 4
