31
TD-001517-01
K.2 Series Service Manual

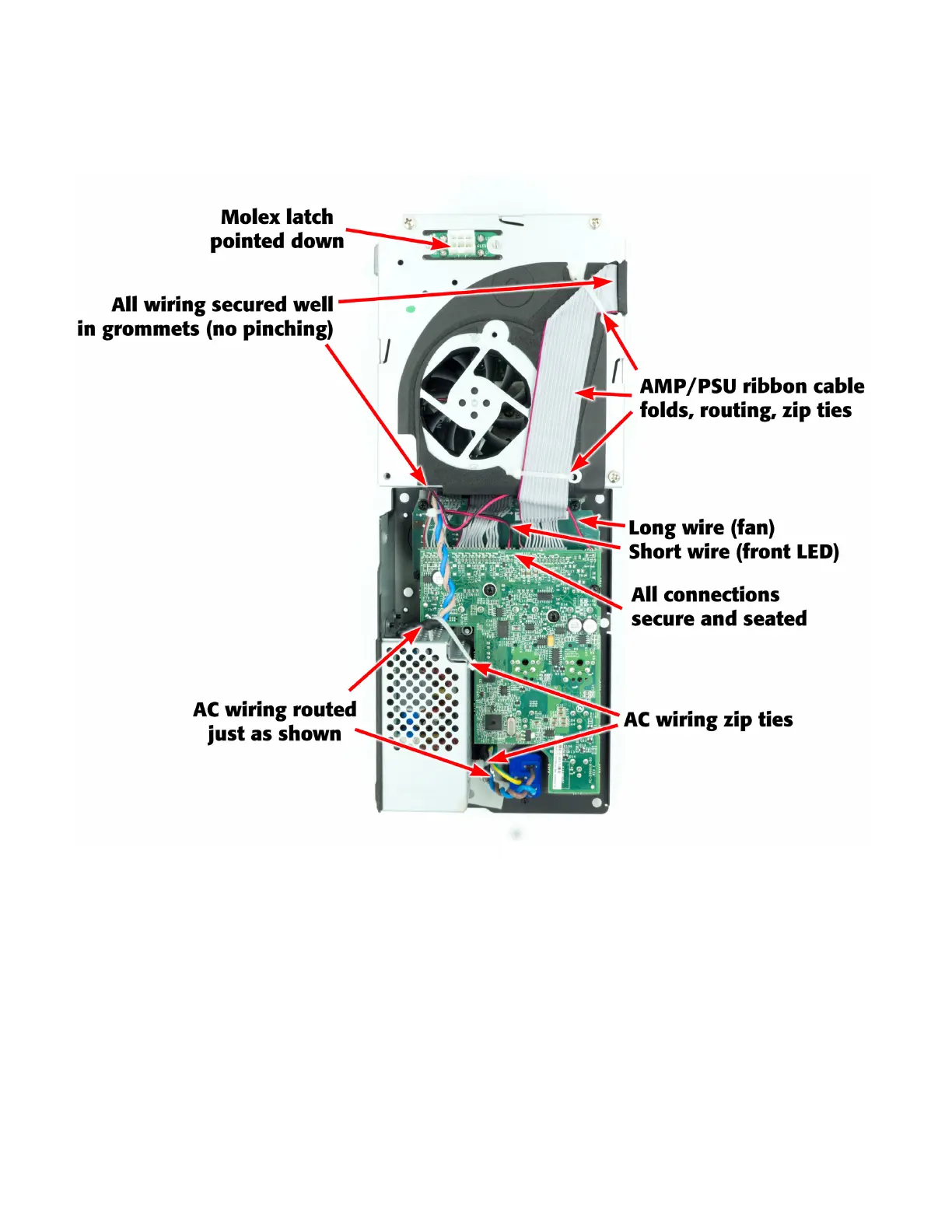

6.7 Amplifier module reference
Use the reference below as a visual aide for reassembly of the amplifier module. The amplifier module should look like this
before installing the back cover to the amplifier chassis.
