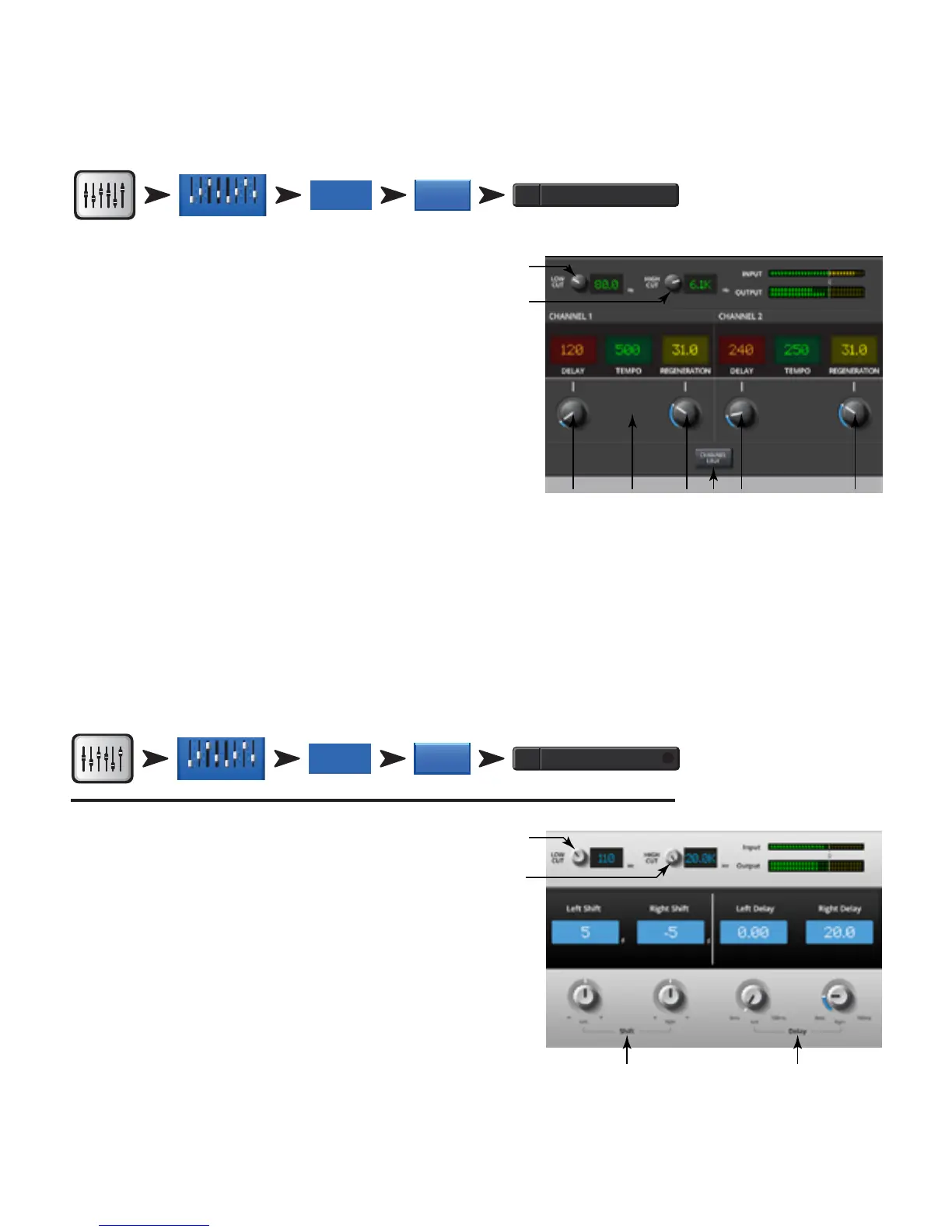

FX Processors – Mono and Stereo Delay
These effects delay the audio signal to create echo and similar effects. Controls for the stereo delay may be linked or operated independently.
Home
FX Masters
Select FX
Channel
FX
Stereo Delay
Eect
FX Masters
FX 1
Select
Stereo Delay
Select
Effect
Refer to — Figure 51
1.
Lo Cut Knob – Attenuates, or “cuts” frequencies below this frequency
setting. Range is 20 Hz to 2 kHz.
2. Hi Cut Knob – Attenuates, or “cuts” frequencies above this frequency
setting. Range is 200 Hz to 20 kHz.
3. Delay Knob – Sets the time between the dry audio and the
delayed audio.
4. Tap Tempo Knob – Sets the tempo of the regenerations by tapping.
Touch the Tap Tempo button, then tap the Master Control knob at a
steady rate.
5. Regeneration Knob – Adjusts the amount of delayed signal that is sent
back to the input. At 0% only the first echo will be heard. At 99% the echo
will repeat indefinitely at the same level.
6. Channel Linking Knob (Stereo Delay only) – Links all controls of both channels. Channel two is set to the same level as Channel one.
FX Processors – Pitch Shift
The Pitch Shift raises or lowers the pitch of an audio signal by a fixed interval. In addition, the signal can be delayed from the original. The two output
channels can be adjusted independently.
Home
FX Masters
Select FX
Channel
FX Masters
+
FX
Pitch Shift
Eect
FX Masters
FX 1
Select
Pitch Shift
Select
Effect
Refer to — Figure 51
1.
Lo Cut Knob – Attenuates, or “cuts” frequencies below this frequency
setting. Range is 20 Hz to 2 kHz.
2. Hi Cut Knob – Attenuates, or “cuts” frequencies above this frequency
setting. Range is 200 Hz to 20 kHz.
3. Left and Right Shift Knobs – Sets the amount of shift, down (-) or up
(+) for the two output channels.
• 100¢ = 1 half step,
• 200 ¢ = 1 whole step,
• 1200¢ = 1 octave
Rotating the Master Encoder will change the amount of pitch shift in
half-step intervals. For finer adjustments, hold the Encoder down while
adjusting.
4. Left and Right Delay Knobs – Adds up to 100 milliseconds of delay to the Pitch Shift output.
— Figure 50 —
1
2
3 4 5 876
— Figure 51 —
1
2
43
